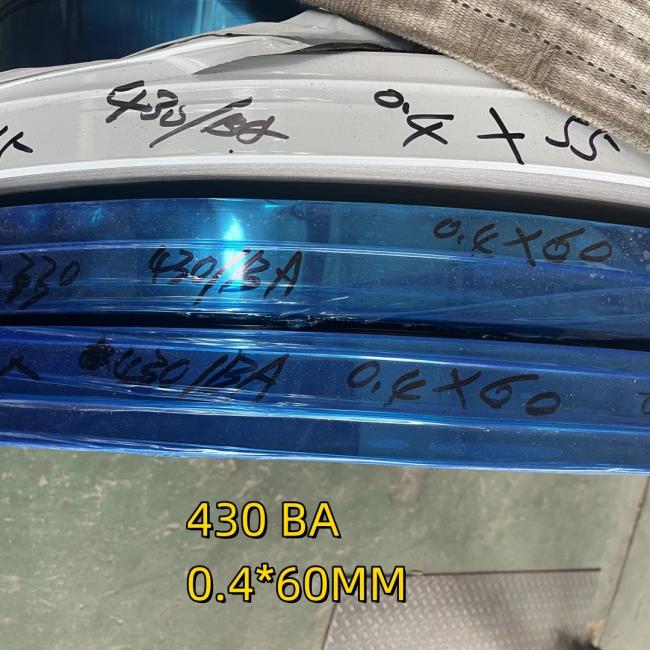

SS Stainless Coil Strip 430 With Ba and PVC Coating With High Dept Pressing SUS430 Strip
SS Stainless Coil Strip 430 With Ba and PVC Coating With High Dept Pressing SUS430 Strip
Introduction
Stainless steel grade 430 is a non-hardenable steel containing straight chromium, and belongs to the ferritic group of steels. This steel is known for its good corrosion resistance and formability, coupled with practical mechanical properties. It can be used in certain chemical applications due to its resistance to nitric acid.
Grade 430F stainless steel is usually provided in bar form to be used in automatic screw machines.
Grade 434 has similar properties as grade 430, although it is a molybdenum-bearing version. The molybdenum content enhances its corrosion resistance.
Key Properties
The following sections will provide the key properties of grade 430 stainless steels coil, sheet and plate - covered under ASTM A240/A240M.
Composition
The chemical compositions of various elements of grade 430 stainless steels are tabulated below.
Table 1 – Chemical compositions of grade 430 stainless steels
| GradeN | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 430 | min. | - | - | - | - | - | 16 | - | - | - |
| 430F | min. | - | - | - | - | 0.15 | 16 | - | - | - |
Mechanical Properties
The mechanical properties for grade 430 stainless steels are listed in the table below.
Table 2 - Mechanical properties of grade 430 stainless steels
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 430 | 483 | 310 | 22 | 85 | 183 |
| 430F | 552 typical | 379 typical | 25 typical | - | 262 |
Physical Properties
The following table outlines the physical properties of grade 430 stainless steels.
Table 3 - Physical properties of grade 430 stainless steels in the annealed condition
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (μm/m/°C) | Thermal Conductivity (W/m.K) | Specific Heat 0-100°C (J/kg.K) | Electrical Resistivity (nΩ.m) | |||
| 0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
| 430 | 7750 | 200 | 10.4 | 11.0 | 11.4 | 26.1 | 26.3 | 460 | 600 |
| 430F | 7750 | 200 | 10.4 | 11.0 | 11.4 | 26.1 | 26.3 | 460 | 600 |
Grade Specification Comparison
A comparison of grade specifications for 430 stainless steels is given in the following table.
Table 4 - Grade specifications for 430 stainless steels
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
| BS | En | No | Name | ||||
| 430 | S43000 | 430S17 | 60 | 1.4016 | X8Cr17 | 2320 | SUS 430 |
| 430F | S43020 | - | - | 1.4104 | X12CrMoS17 | 2383 | SUS 430F |
Q1: How can we get the sample?
A1: Free samples are available for your checking and testing.But you need to pay for the frieght cost.
Q2: Can you provide Mill Test Certificate?
A2: Yes! The Mill Test Certificate will be issued with the product.
Q3:Packing details?
A3:Packaged 25 Tons per 20 GP wooden case container.
20ft GP: 5898mm(Length)x2352mm(Width)x2393mm(High)
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
40ft HC: 12032mm(Lengh)x2352mm(Width)x2698mm(High)
Q4:What is your terms of payment?
A4: 100% T/T advance.
30% T/T and balance against copy of documents.
30% T/T advance, balance L/C at sight.
Q5:Can we visit your factory?
YES
