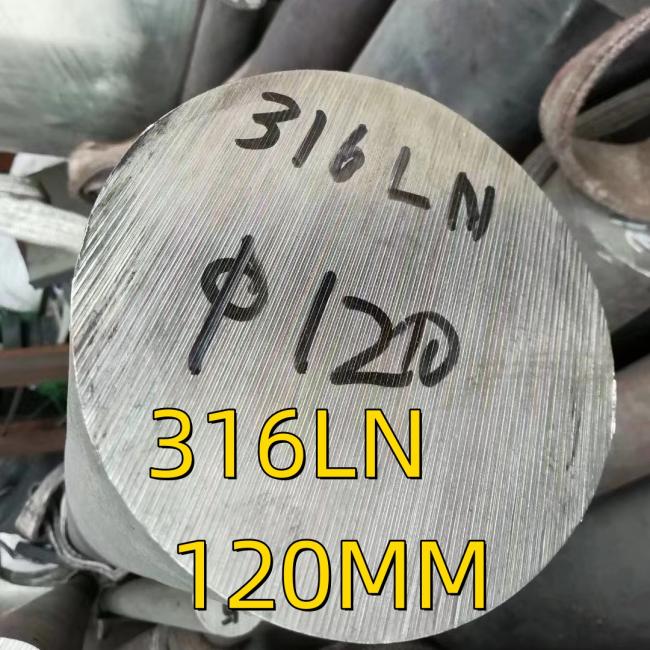

Ø120 X 3000 316LN Stainless Steel Round Bar

Price Negotiable

Price: USD4.45/KG

MOQ: 100KGS

Delivery Time: 7 Days

Brand: TSINGSHAN

Product Description

Ø 75 X 200 in 316LN ESR 1.4429 Stainless Steel Round Bar SS316LN Round Rod Black Surface

Topics Covered

Introduction
Chemical Composition
Mechanical Properties
Other Designations
Applications

Introduction

Stainless steel grade 316LN is an austenitic type of steel that is a low carbon, nitrogen-enhanced version of grade 316 steel. The nitrogen content in this steel provides solid solution hardening, and raises its minimum specified yield strength. It also possesses good resistance to general corrosion and pitting/crevice corrosion.

The following datasheet provides an overview of stainless steel grade 316LN.

Chemical Composition

The chemical composition of grade 316LN stainless steel is outlined in the following table.

Element	Content (%)
Iron, Fe	Balance
Chromium, Cr	16.0-18.0
Nickel, Ni	10.0-14.0
Molybdenum, Mo	2.0-3.0
Manganese, Mn	2.00
Silicon, Si	1.00
Nitrogen, N	0.10-0.30
Phosphorous, P	0.045
Carbon, C	0.03
Sulfur, S	0.03

Mechanical Properties

The mechanical properties of grade 316LN stainless steel are displayed in the following table.

Properties	Metric	Imperial
Tensile strength	515 MPa	74694 psi
Yield strength	205 MPa	29732 psi
Modulus of elasticity	190-210 GPa	27557-30457 ksi
Poisson's ratio	0.27-0.30	0.27-0.30
Elongation at break (in 50 mm)	60%	60%

Other Designations

Equivalent materials to grade 316LN stainless steel are given below.

ASTM A182	ASTM A213	ASTM A240	ASTM A240	ASTM A276
ASTM A193 (B8MN, B8MNA)	ASTM A312	ASTM A336	ASTM A358	ASTM A376
ASTM A194 (B8MN, B8MNA)	ASTM A403	ASTM A430	ASTM A479	ASTM A666
ASTM A688	ASTM A813	ASTM A814	DIN 1.4406	DIN 1.4429
