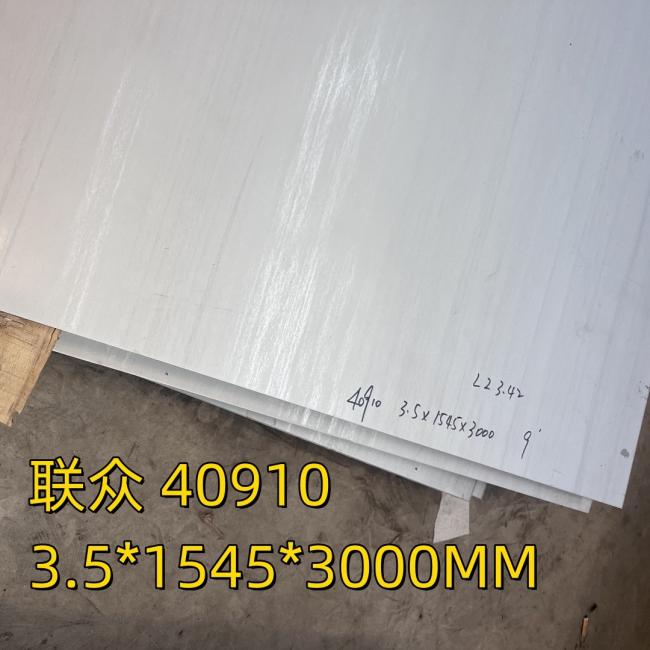

SUH409L UNS S40910 Hot Rolled Stainless Steel Plate 1D Finished 3.5mm 409L
Price:
USD 1250-1800/Ton
MOQ:
2 Tons
Delivery Time:
10 days after receive the deposit
Brand:
TISCO,BAO STEEL
Product Description
SUH409L UNS S40910 Stainless Steel Plate 1D Finished 3.5mm Hot Rolled 409L Plate
SPECIFICATION
| Specifications | ASTM A240 / ASME SA240 |
|---|---|
| Dimensions | ASTM, ASME and API |
| Standard | JIS, AISI, ASTM, GB, DIN, EN, etc. |
| Surface | 2B, 2D, BA, NO.4, NO.8, 8K, Mirror,Checkered, Embossed, Hair Line, Sand Blast, Brush, Etching |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm,etc. |
| Finish | Black,Bright Polished,Rough Turned,No.4 Finish,Matt Finish,BA Finish |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc. |
CHEMICAL COMPOSITION OF STAINLESS STEEL 409L PLATES
| Grade | C | Mn | Si | S | P | Cr | Ni | Ti |
| SS 409L | 0.03 max | 1.00 max | 1.00 max | 0.030 max | 0.040 max | 10.50-11.70 | 1.5 max | - |
MECHANICAL PROPERTIES OF ASTM A240 STAINLESS STEEL 409L SHEETS
| Element | Density | Tensile Strength | Yield Strength (0.2%Offset) | Elongation | Hardness |
| SS 409L | 7.8 g/cm3 | MPa – 380 | MPa – 170 | 20 % | Rockwell B (HR B)- 88 / Brinell (HB)- 0.5t |
Stainless steel plate surface description
| Finish Designation | Method and degree of finish |
| No.1 | After hot rolling, heat treatment, pickling or other equivalent treatment is applied. |
| No.2D | Annealing and pickling are performed after cold rolling; material is soft with surface of silver-white luster; used for general applications and deep drawing. |
| No.2B | After 2D finish, skin pass rolling is performed to obtain a more suitable luster; the surface becomes very exquisite; used for general applications. |
| No.3 | Intermediate 100-120 grit finish; used for applications in which surface polishing is performed after shaping. |
| No.4 | General 150-180 grit finish; used for restaurants and kitchen equipment and tools. |
| #240 | 240 grit finish; used when a finer finish than No. 4 is required; typically for restaurants and kitchen equipment and tools. |
| #320 | 320 grit finish polished product. |
| HL | This finish is performed by continuous linear polishing using an abrasive of appropriate grain size; mainly used for architectural applications. |
| BA | Achieved by performing bright annealing after cold rolling and then skin pass rolling to obtain even greater reflectance; provides excellent corrosion resistance; used for household appliances, kitchen equipment, and automobiles. |
| 8K | Through multiple grinding, it achieves very high brightness and smoothness, like a mirror. |
Q1. What are your company's main products ?
A1: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.
Q2. Where is your factory ?
A2: Our company's processing center is located in Jiangsu, Wuxi, China.
Which is well equipped with kinds of machines, such as laser cutting machine,mirror polishing machine and so on.
We can provide a wide range of personalized services according to the customers' needs.
A1: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.
Q2. Where is your factory ?
A2: Our company's processing center is located in Jiangsu, Wuxi, China.
Which is well equipped with kinds of machines, such as laser cutting machine,mirror polishing machine and so on.
We can provide a wide range of personalized services according to the customers' needs.
Q3:How to confirm the Product Quality before placing orders?
A3:You can get free samples for some products,you only need to pay the shipping cost or arrange a courier to us and take the samples. The third-party will be accepted.
Q4. What are the advantages of your company ?
A4: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.
Q5. How many coutries you already exported ?
A5: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt,Turkey, Jordan, India, etc.
Q6:What is your delivery time?
A6: For stocks, we could transport the goods to loading port within 7 days after we received your deposit
For production period, it usually takes about 15 days-30 days after receiving the deposit.
Q7. Can you provide sample ?
A7: Small samples in store and can provide the samples for free.
Customized samples will take about 5-7days.
