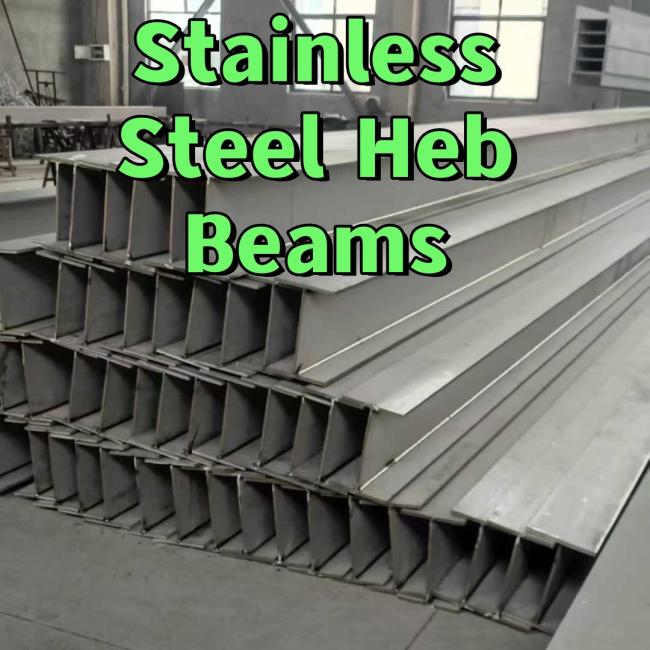

AISI 316L Stainless Steel Heb Beams ASTM A276 TP316L SS316L Profiles 100X100X6X8 MM
Price:
2.5-3.86 USD/KG
MOQ:
100KGS
Delivery Time:
7 Days
Brand:
TSING SHAN
Product Description
AISI 316L Stainless Steel Heb Beams ASTM A276 TP316L SS316L Profiles 100X100X6X8 MM
Specification
|
Product Name
|
H beam
|
||
|
MOQ
|
1 Ton
|
||
|
Material
|
304,316,316L,410,430,201,etc
|
||
|
Surface treatment
|
Bare/Shot Blasted and Spray Paint or as required.
|
||
|
Web Thickness
|
5-16mm
|
||
|
Web Width
|
5-300mm
|
||
|
Flange Thickness
|
4.5-23mm
|
||
|
Flange Width
|
50-400mm
|
||
|
Standard
|
AiSi, ASTM, DIN, EN, GB, JIS Etc
|
||
|
Technique
|
Hot Rolled
|
||
|
Packing
|
Bundle, or with all kinds of colors PVC or as your requirements
|
||
|
Payment Terms
|
T/T or L/C
|
||
|
Product Application
|
Used in home appliances construction, machinery manufacturing, container manufacturing, shipbuilding, bridges, etc.
|
||
|
Certificates
|
ISO9001-2008,SGS.BV
|
||
|
Delivery Time
|
Usually within 10-15 days after receipt of advance payment
|
||
The application range of H type steel:
1.beam and column members in industrial and civil building steel structures.
2. steel structure bearing support for industrial structures;
3. steel pile and supporting structure for underground engineering;
4. the structure of industrial equipment such as petrochemical and electric power;
5. long-span steel bridge components;
6. frame structure of shipbuilding and mechanical manufacturing;
7. train, car, tractor beam bracket;
8. port conveyor belt, expressway stalls support.
The technical rationality of rolling H type steel:
The use of H steel in industrial and civil buildings not only saves labor force, reduces cost, but also reduces the amount of steel used. For example, the steel structure of the workshop can be reduced by 15%-20% compared with that of hot rolled I-steel and hot rolled wide flange H steel.
Specification of H-BEAMS
Quality: 304 316L
Size and Tolerance: JIS G3192, KS D3502
| Nominal Size (mm) |
HXB (mm) |
T1 (mm) |
T2 (mm) |
Unit Weight (kg/m) |
Available Length |
| 100*100 | 100*100 | 6 | 8 | 16.9 | 6/10/12m |
| 120*120 | 125*125 | 6.5 | 9 | 23.6 | 6/10/12m |
| 150*75 | 150*75 | 5 | 7 | 14 | 6/10/12m |
| 150*100 | 148*100 | 6 | 9 | 20.7 | 6/10/12m |
| 150*150 | 150*150 | 7 | 10 | 31.1 | 6/10/12m |
| 175*90 | 175*90 | 5 | 8 | 18 | 6/10/12m |
| 200*100 | 198*99 | 4.5 | 7 | 17.8 | 6/10/12m |
| 200*100 | 5.5 | 8 | 20.9 | 6/10/12m | |
| 175*175 | 175*175 | 7.5 | 11 | 40.4 | 6-16m |
| 194*150 | 194*150 | 6 | 9 | 29.9 | 6-16m |
| 200*200 | 200*200 | 8 | 12 | 49.9 | 6-16m |
| 200*204 | 12 | 12 | 56.2 | 6-16m | |
| 250*125 | 248*124 | 5 | 8 | 25.1 | 6-16m |
| 250*125 | 6 | 9 | 29 | 6-16m | |
| 250*175 | 244*175 | 7 | 11 | 43.6 | 6-16m |
| 300*150 | 298*149 | 5.5 | 8 | 32 | 6-16m |
| 300*150 | 6.5 | 9 | 36.7 | 6-16m | |
| 300*200 | 294*200 | 8 | 12 | 55.8 | 6-16m |
| 298*201 | 9 | 14 | 65.4 | 6-16m | |
| 350*175 | 346*174 | 6 | 9 | 41.2 | 6-16m |
| 350*175 | 7 | 11 | 49.4 | 6-16m | |
| 400*200 | 396*199 | 7 | 11 | 56.1 | 6-16m |
| 400*200 | 8 | 13 | 65.4 | 6-16m | |
| 250*250 | 250*250 | 9 | 14 | 71.8 | 6-16m |
| 250*255 | 14 | 14 | 81.6 | 6-16m | |
| 300*300 | 300*300 | 10 | 15 | 93 | 6-16m |
| 294*302 | 12 | 12 | 83.4 | 6-16m | |
| 300*305 | 15 | 15 | 105 | 6-16m |
| Nominal Size (mm) | HXB (mm) | t1 (mm) | t2 (mm) | Unit Weight (kg/m) | Available length |
| 350×350 | 344×348 | 10 | 16 | 113 | 6-16m |
| 350×350 | 12 | 19 | 135 | 6-16m | |
| 400×400 | 388×402 | 15 | 15 | 140 | 6-16m |
| 394×398 | 11 | 18 | 147 | 6-16m | |
| 400×400 | 13 | 21 | 172 | 6-16m | |
| 400×408 | 21 | 21 | 197 | 6-16m | |
| 414×405 | 18 | 28 | 232 | 6-16m | |
| 428×407 | 20 | 35 | 283 | 6-16m | |
| 350×250 | 340×250 | 9 | 14 | 78.1 | 6-16m |
| 400×300 | 390×300 | 10 | 16 | 105 | 6-16m |
| 450×300 | 440×300 | 11 | 18 | 121 | 6-16m |
| 450×200 | 446×199 | 8 | 12 | 65.1 | 6-16m |
| 450×200 | 9 | 14 | 74.9 | 6-16m | |
| 500×300 | 482×300 | 11 | 15 | 111 | 6-16m |
| 488×300 | 11 | 18 | 125 | 6-16m | |
| 500×200 | 496×199 | 9 | 14 | 77.9 | 6-16m |
| 500×200 | 10 | 16 | 88.2 | 6-16m | |
| 506×201 | 11 | 19 | 102 | 6-16m | |
| 600×200 | 600×200 | 11 | 17 | 103 | 6-16m |
| 596×199 | 10 | 15 | 92.4 | 6-16m | |
| 606×201 | 12 | 20 | 118 | 6-16m | |
| 600×300 | 582×300 | 12 | 17 | 133 | 6-16m |
| 588×300 | 12 | 20 | 147 | 6-16m | |
| 594×302 | 14 | 23 | 170 | 6-16m | |
| 700×300 | 692×300 | 13 | 20 | 163 | 6-16m |
| 700×300 | 13 | 24 | 182 | 6-16m | |
| 800×300 | 800×300 | 14 | 26 | 207 | 6-16m |
| 808×302 | 16 | 30 | 241 | 6-16m | |
| 900×300 | 890×299 | 15 | 23 | 210 | 6-16m |
| 900×300 | 16 | 28 | 240 | 6-16m | |
| 912×302 | 18 | 34 | 283 | 6-16m |
1Q:Can you send samples?
A:Of course, we can provide customers with free samples and express shipping service to all over of the world.
2Q:How can we guarantee quality?
A:Always a pre-production sample before mass production;Always final Inspection before shipment.
A:Of course, we can provide customers with free samples and express shipping service to all over of the world.
2Q:How can we guarantee quality?
A:Always a pre-production sample before mass production;Always final Inspection before shipment.
3Q:Is your company a trading company or a manufacturer?
A: There is no doubt that we are a professional material manufacturer in China. Carry out one week business internship year.
A: There is no doubt that we are a professional material manufacturer in China. Carry out one week business internship year.
4Q:What ports of shipment are there?
A:Under normal circumstances, we ship from Shanghai, Ningbo ports, you can specify other ports according to your needs.
A:Under normal circumstances, we ship from Shanghai, Ningbo ports, you can specify other ports according to your needs.
5Q:What about product prices information?
A:Prices various according to periodic price changes of raw materials.
A:Prices various according to periodic price changes of raw materials.
6Q:Do you provide custom made Products service?
A: Yes,if you have your own design , we can produce according to your specification and drawing.
A: Yes,if you have your own design , we can produce according to your specification and drawing.
7Q:How long does your delivery time take?
A:In general, our delivery time is within 7-15 days, and may be longer if the quantity is extremely large or special circumstances occur.
A:In general, our delivery time is within 7-15 days, and may be longer if the quantity is extremely large or special circumstances occur.
8Q:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory.
A:Of course, we welcome customers from all over the world to visit our factory.
9Q: How many countries have you visited?
A: We have exported to the Middle East, Europe, America, Southeast Asia and other regions, and have signed long-term cooperation agreements with dozens of companies and regional agents. We have rich export experience, and we are familiar with different market demands and can help customers avoid a lot of trouble.
