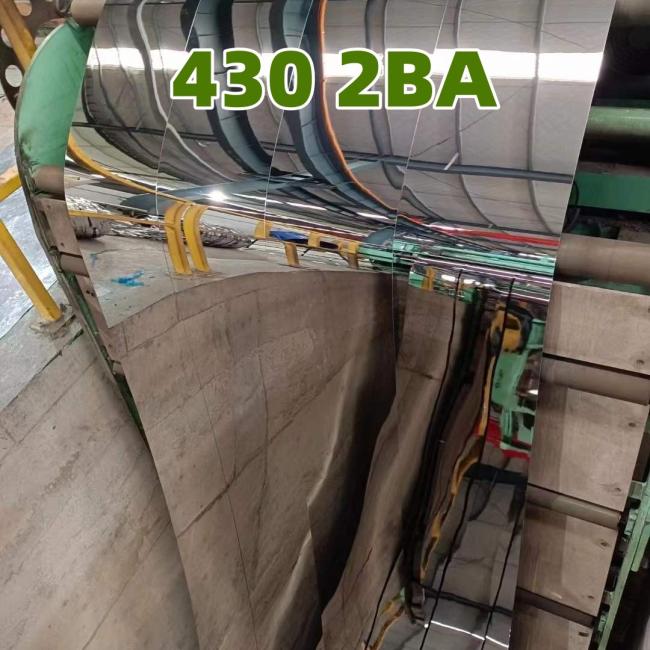

SUS430 2BA Cold Rolled Stainless Steel Sheet 8K Mirror Surface With PVC Flim 1.2*1250*2500mm
SUS430 2BA Cold Rolled Stainless Steel Sheet 8K Mirror Surface With PVC Flim 1.2*1250*2500mm
Product Name |
Stainless Steel Plate / Stainless Steel Sheet |
Material |
201 202 304 304L 316 316L 321 309 310S 410 430 436 436L 904L etc. |
Finish(Surface) |
No.1/2B/NO.3/NO.4/BA/HL/Mirror/Embossed etc. |
Technique |
Cold Rolled / Hot Rolled |
Thickness |
0.3mm-3mm(cold rolled) 3-120mm (hot rolled) |
Length |
1000mm-6000mm or custom |
Width |
1000mm-2000mm or custom |
Application |
Stainless steel sheets can apply to construction field, ships building industry, petroleum & chemical industries, war and electricity industries, food processing and medical industry ,machinery and hardware fields.
|
Tips |
The sizes or thicknesses of stainless steel sheets can be customized, if you need additional information, please don't hesitate to contact us at any time. |
CHEMICAL COMPOSITION&Mechanical properties
| STANDARD | GRADE | CHEMICAL COMPOSITION(%) | ||||||
| C max | Si max | Mn max | P max | S max | Ni | Cr | ||
| JIS | SUS430* | 0.12 | 0.75 | 1.00 | 0.040 | 0.030 | - | 16.00~18.00 |
| GB | 1Cr17 | 0.12 | 1.0 | 1.00 | 0.040 | 0.030 | 0.75 | 16.00~18.00 |
| ASTM | S43000* | 0.12 | 1.0 | 1.00 | 0.040 | 0.030 | 0.75 | 16.00~18.00 |
| EN | 1.4016 | 0.08 | 1.0 | 1.00 | 0.040 | 0.015 | - | 16.00~18.00 |
| Mechanical properties | ||||||||
| Yield Strength | Tensile Strength | Elongation | Hardness | |||||
| (N/mm2) | (N/mm2) | (%) | HRB | HV | ||||
| ≥205 | ≥420 | ≥22 | ≤80 | ≤200 |
||||
Q1: How can we get the sample?
A1: Free samples are available for your checking and testing.But you need to pay for the frieght cost.
Q2: Can you provide Mill Test Certificate?
A2: Yes! The Mill Test Certificate will be issued with the product.
Q3:Packing details?
A3:Packaged 25 Tons per 20 GP wooden case container.
20ft GP: 5898mm(Length)x2352mm(Width)x2393mm(High)
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
40ft HC: 12032mm(Lengh)x2352mm(Width)x2698mm(High)
Q4:What is your terms of payment?
A4: 100% T/T advance.
30% T/T and balance against copy of documents.
30% T/T advance, balance L/C at sight.
Q5:Can we visit your factory?
A5: Warmly welcome. Once we have your schedule, we will arrange the professional sales team to follow up your case.
