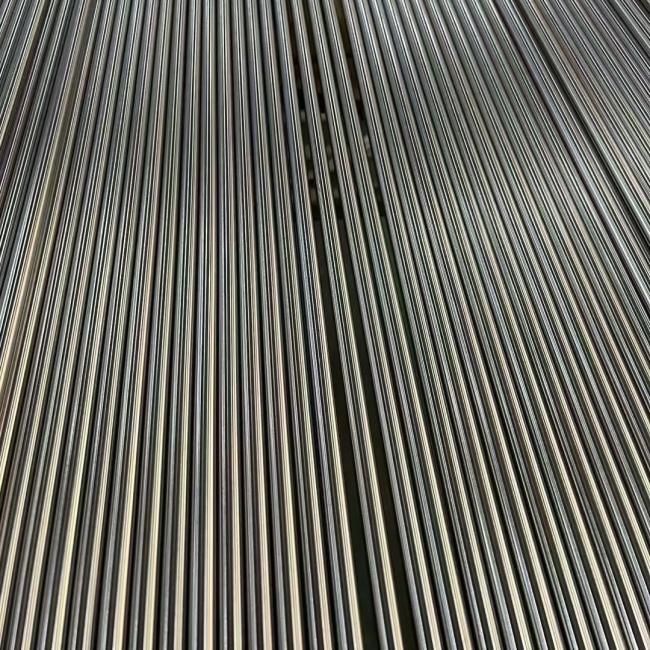

SUS316L ASTM A312 TP316L 12.7*1.5*6000MM Bright Annealed Pickled Stainless Steel Seamless Pipe
SUS316L ASTM A312 TP316L 12.7*1.5*6000MM Bright Annealed Pickled Stainless Steel Seamless Pipe
Product Description
| Name | Pickled Seamless Steel Pipe |
| Standard | ASTM, GB, JIS, DIN, EN, AISI |
| Material Grade | TP304/TP304L /TP316/ TP316L /TP347/ TP347H /TP321/ TP321H /TP310/ TP310S/TP310H |
| TP317L/TP317 | |
| S31803/S32205 S32750 S32760 S32304 S32101 | |
| Outer Diameter | Seamless Pipe: 6mm-610mm |
| Thickness | Seamless Pipe: 0.6mm - 60mm |
| Length | 5.0-5.8 MTR or as customers' request |
| Tolerance | According to the Standard. |
| Test | UT,ET,HT,RT,ect, and others according to the standard,or as the requests of the customers |
| Sample | Yes |
| Certificate | ISO 9001:2008 |
| Marking | Standard, Grade, Size, Length and Heat No. |
| Packing Details | Plastic bags in bundles, wooden cases or depend on buyer’s requirement |
| Payment Terms | T/T, D/P at sight, L/C at sight |
| Delivery Time | Depend on the quantity |
| Supply Ability | 1000 tons per month |
Bright Annealed Stainless Steel Tube ASTM A269 TP304 TP316
Size range: O.D.: 4.0-760mm W.T.:1-50mm L: according to customer requirement
Manufacture:
The tubes are made by seamless or welded process.
The tubeing can be hot finished or cold finished
Heat treatment:
All tubes are furnished in the heat-treated condition
Mechanical Tests Requirement:
Flaring Test (Seamless Tubes)
Flange Test (Welded Tubes)
Hardness Test
Hydrastatic or Nondestructive Electric Test
Surface Condition:
The tube surface are pickled free of scale.
When bright annealing is used, pickling is not used.
Chemical Requirement:
| Grade: | TP201 | TP201LN | TP304 | TP304L | TP304LN | TP316 | TP316L | TP316LN |
| UNS | S20100 | S20153 | S30400 | S30403 | S30453 | S31600 | S31603 | S31653 |
| C, max | 0.15 | 0.03 | 0.08 | 0.035 | 0.035 | 0.08 | 0.035 | 0.035 |
| Mn, max | 5.5-7.5 | 6.4-7.5 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 |
| P, max | 0.06 | 0.045 | 0.045 | 0.045 | 0.045 | 0.045 | 0.045 | 0.045 |
| S, max | 0.03 | 0.015 | 0.030 | 0.030 | 0.030 | 0.030 | 0.030 | 0.030 |
| Si, max | 1.00 | 0.075 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 |
| Ni | 3.5-6.5 | 4.0-5.0 | 8.0-11.0 | 8.0-12.0 | 8.0-11.0 | 10.0-14.0 | 10.0-15.0 | 10.0-13.0 |
| Cr | 16.0-18.0 | 16.0-17.5 | 18.0-20.0 | 18.0-20.0 | 18.0-20.0 | 16.0-18.0 | 16.0-18.0 | 16.0-18.0 |
| Mo | … | … | … | … | … | 2.00-3.00 | 2.00-3.00 | 2.00-3.00 |
| Ti | … | … | … | … | … | … | … | … |
| Tantalum | … | … | … | … | … | … | … | … |
| Columbium | … | … | … | … | … | … | … | … |
| Nitrogen | 0.25 | 0.10-0.25 | … | … | 0.10-0.16 | … | … | 0.10-0.16 |
| V | … | … | … | … | … | … | … | … |
| Copper | … | 1.00 | … | … | … | … | … | … |
| Others | … | … | … | … | … | … | … | … |
| Grade: | TP317 | TP321 | TP347 | TP348 | TP XM-10 | TP XM-11 | TP XM-15 | TP XM-19 |
| UNS | S31700 | S32100 | S34700 | S34800 | S21900 | S21904 | S38100 | S20910 |
| C, max | 0.08 | 0.08 | 0.08 | 0.08 | 0.08 | 0.040 | 0.08 | 0.06 |
| Mn, max | 2.00 | 2.00 | 2.00 | 2.00 | 8.0-10.00 | 8.0-10.00 | 2.00 | 4.0-6.0 |
| P, max | 0.045 | 0.045 | 0.045 | 0.045 | 0.045 | 0.045 | 0.045 | 0.045 |
| S, max | 0.030 | 0.030 | 0.030 | 0.030 | 0.030 | 0.030 | 0.030 | 0.030 |
| Si, max | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 |
| Ni | 11.0-15.0 | 9.0-12.0 | 9.0-12.0 | 9.0-12.0 | 5.5-7.5 | 5.5-7.5 | 10.0-14.0 | 11.5-13.5 |
| Cr | 18.0-20.0 | 17.0-19.0 | 17.0-19.0 | 17.0-19.0 | 19.0-21.5 | 19.0-21.5 | 16.0-18.0 | 20.5-23.5 |
| Mo | 3.00-4.00 | … | … | … | … | … | 2.00-3.00 | 1.5-3.0 |
| Ti | … | … | … | … | … | … | … | … |
| Tantalum | … | … | … | 0.10 | … | … | … | 0.10-0.30 |
| Columbium | … | … | 10XCmin 1.10max | … | … | … | … | … |
| Nitrogen | … | … | … | … | 0.15-0.40 | 0.15-0.40 | … | 0.20-0.40 |
| V | … | … | … | … | … | … | … | 0.10-0.30 |
| Copper | … | … | … | … | … | … | … | … |
| Others | … | … | … | Co 0.20max | … | … | … | … |
| Grade: | TP XM-29 | … | … | … | … | … | … | … |
| UNS | S24000 | S31254 | S31725 | S31726 | S31727 | S32053 | S30600 | S32654 |
| C, max | 0.08 | 0.020 | 0.035 | 0.035 | 0.030 | 0.030 | 0.018 | 0.020 |
| Mn, max | 11.5-14.5 | 1.00 | 2.00 | 2.00 | 1.00 | 1.00 | 2.00 | 2.0-4.0 |
| P, max | 0.060 | 0.030 | 0.045 | 0.045 | 0.030 | 0.030 | 0.020 | 0.030 |
| S, max | 0.030 | 0.015 | 0.030 | 0.030 | 0.030 | 0.030 | 0.020 | 0.005 |
| Si, max | 1.00 | 0.80 | 1.00 | 1.00 | 1.00 | 1.00 | 3.7-4.3 | 0.50 |
| Ni | 2.3-3.7 | 17.5-18.5 | 13.5-17.5 | 14.5-17.5 | 14.5-16.5 | 24.0-26.0 | 14.0-15.5 | 21.0-23.0 |
| Cr | 17.0-19.0 | 19.5-20.5 | 18.0-20.0 | 17.0-20.0 | 17.5-19.0 | 23.0-24.0 | 17.0-18.5 | 24.0-25.0 |
| Mo | … | 6.0-6.5 | 4.0-5.0 | 4.0-5.0 | 3.8-4.5 | 5.0-6.0 | 0.2 max | 7.0-8.0 |
| Ti | … | … | … | … | … | … | … | … |
| Tantalum | … | … | … | … | … | … | … | … |
| Columbium | … | … | … | … | … | … | … | … |
| Nitrogen | 0.20-0.40 | 0.18-0.22 | 0.20max | 0.10-0.20 | 0.15-0.21 | 0.17-0.22 | … | 0.45-0.55 |
| V | … | … | … | … | … | … | … | 0.30-0.60 |
| Copper | … | 0.50-1.00 | … | … | 2.8-4.0 | … | 0.50 max | … |
| Others | … | … | … | … | … | … | … | … |
| Permissible Variations in Dimensions | ||||||
| Group | Size, Outside Diameter, in(mm) |
Permissible Variations in Outside Diameter, in.[mm] | Permissible Variations in WT, % | Permisible Variations in Cut Length, in[mm] Over Under |
||
| 1 | Up to 1/2(12.7) | ±0.005[0.13] | ±15 | 1/8[3.2] | 0 | |
| 2 | 1/2 to 1 1/2, excl | ±0.005[0.13] | ±10 | 1/8[3.2] | 0 | |
| 3 | 1 1/2 to 3 1/2, excl | ±0.010[0.25] | ±10 | 3/16[4.8] | 0 | |
| 4 | 3 1/2 to 5 1/2, excl | ±0.015[0.38] | ±10 | 3/16[4.8] | 0 | |
| 5 | 5 1/2 to 8, excl | ±0.030[0.76] | ±10 | 3/16[4.8] | 0 | |
| 6 | 8 to 12, excl | ±0.040[1.01] | ±10 | 3/16[4.8] | 0 | |
| 7 | 12 to 14, excl | ±0.050[1.26] | ±10 | 3/16[4.8] | 0 | |
SUPPLEMENTARY REQUIREMENTS:
S1 Stress-Releived Anneald Tubes
S2 Air Underwater Pressure Test
S3 Stablizing Heat Treatment
S4 Intergranular Corrosion Test
Referenced Documents:
ASTM Standards:
ASTM A262 Practices for Detecting Susceptibility to Intergranular Attack in Austenitic Stainless Steels
ASTM A370 Test Methods and Definitions for Mechanical Testing of Steel Products
ASTM A480/A 480M Specification for General Requirements for Flat-Rolled Stainless and Heat-Resisting
Steel Plate, Shet, and Strips
ASTM A632 Specification for Seamless and Welded Austenitic Stainless Steel Tubing (Small-Diameter)
for General Service
ASTM A1016/A 1016M Specification for General Requirements for Ferritic Alloy Steel, Austenitic Alloy Steel
and Stainles Steel Tubes
ASTM E 527 Practice for Numbering Metals and Alloys in the Unified Numbering System (UNS)
ASME B31.3 Process Piping
SAE J1086 Practice for Numbering Metals and Alloys
FAQ
A1: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.
Q2. Where is your factory ?
A2: Our company's processing center is located in Jiangsu, Wuxi, China.
Which is well equipped with kinds of machines, such as laser cutting machine,mirror polishing machine and so on.
We can provide a wide range of personalized services according to the customers' needs.
Q3:How to confirm the Product Quality before placing orders?
A3:You can get free samples for some products,you only need to pay the shipping cost or arrange a courier to us and take the samples. The third-party will be accepted.
Q4. What are the advantages of your company ?
A4: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.
Q5. How many coutries you already exported ?
A5: Exported to more than 50 countries mainly from America, UK, Kuwait, Egypt,Turkey, Jordan, India, etc.
Q6:What is your delivery time?
A6: For stocks, we could transport the goods to loading port within 7 days after we received your deposit
For production period, it usually takes about 15 days-30 days after receiving the deposit.
Q7. Can you provide sample ?
A7: Small samples in store and can provide the samples for free.
Customized samples will take about 5-7days.
