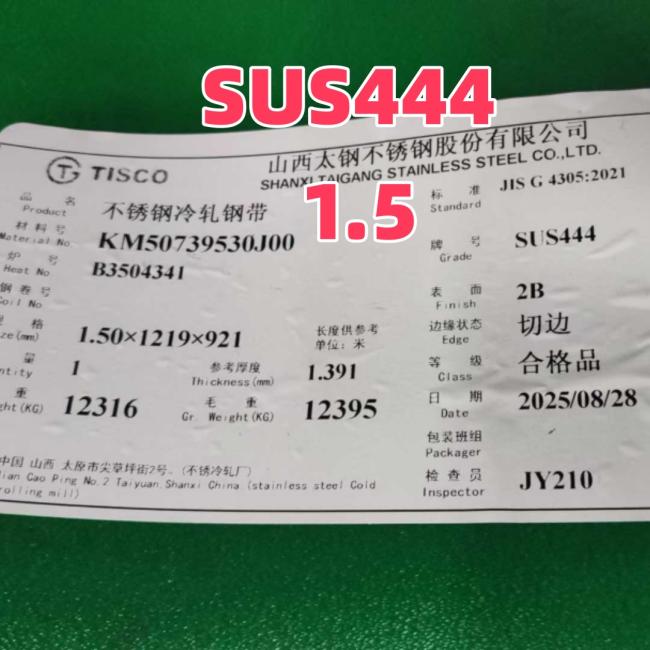

SUS444 ASTM A240 AISI 444 (S44400) DIN1.4521 Stainless Steel Metal Sheet 1.5*1219mm

SUS444 ASTM A240 AISI 444 (S44400) DIN1.4521 Stainless Steel Metal Sheet 1.5*1219mm

Strip, Coil, Foil, Wire, ASTM A268, ASTM A240

APPLICATIONS

Food processing, brewery and wine making equipment, hot-water tanks, heat-exchanger tubing and automotive components

DESCRIPTION

Type 444 is a low carbon, low nitrogen, ferritic stainless steel that provides pitting and crevice corrosion resistance superior to most ferritic stainless steels. Applications requiring superior corrosion resistance and resistance to chloride stress corrosion cracking are ideal for this alloy.

CHEMISTRY TYPICAL

Carbon: 0.025 max
Manganese: 1.00 max
Silicon: 0.60
Chromium: 17.50-19.50
Nickel: 01.00 max
Molybdenum: 1. 75-2.50
Titanium+ Columbium : 0.20 + 4x (Carbon+ Nitrogen) min-0.80 max
Phosphorus: 0.040 max
Sulfur: 0.030 max
Iron: Balance

PHYSICAL PROPERTIES

Density: 0.28 lbs/in3 7.75 g/cm3

Electrical Resistivity: microhm-in (microhm-cm):
68 ° F (20 ° C): 22.50 (57)

Specific Heat: BTU/lbl° F (kJ/kg•K):
32 - 212 ° F (0 - 100 ° C): 0.102 (0.427)

Thermal Conductivity: BTU/hr/ft2/ft/° F (W/m•K)
At 212 °F (100 °C): 15.5 (26.8)

Mean Coefficient of Thermal Expansion: in/inl° F (µm/m•K):
32 - 212 ° F (0 - 100 °C): 6.1 x 10-s (11.0)

Modulus of Elasticity: ksi (MPa)
29 x 103 (200 x 103) in tension


Magnetic Permeability: Magnetic

Melting Range: 2700 - 2790 ° F (1482 - 1532 °C)

FORMS

Coil - Strip, Foil, Ribbon Wire - Profile, Round, Flat, Square

MECHANICAL PROPERTIES AT ROOM TEMPERATURE

PROPERTIES: ANNEALED

Ultimate Tensile Strength: 60 KSI min (414 MPa min)
Yield Strength (0.2% offset): 40 KSI min (276 MPa min)
Elongation: 22% min
Hardness: Rb 90 max

PROPERTIES: TEMPERED

Type 444 can be rolled to various tempers. Consult Ulbrich Technical Services if temper rolled product is required.

ADDITIONAL PROPERTIES

CORROSION RESISTANCE

Refer to NACE (National Association of Corrosion Engineers) for recommendations.

FINISHES

# 1 - Hot rolled annealed and descaled. It is available in strip, foil and ribbon. It is used for applications where a smooth decorative finish is not required.
# 2D - Dull finish produced by cold rolling, annealing and descaling. Used for deep drawn parts and those parts that need to retain lubricants in the forming process. # 2B - Smooth finish produced by cold rolling, annealing and descaling. A light cold rolling pass is added after anneal with polished rolls giving it a brighter finish than 2D.
#BA- Bright annealed cold rolled and bright annealed
#CBA- Course bright annealed cold rolled matte finish and bright anneal
#2 - Cold Rolled
# 2BA- Smooth finish produced by cold rolling and bright annealing. A light pass using highly polished rolls produces a glossy finish. A 2BA finish may be used for lightly formed applications where a glossy finish is desired in the formed part. Polished - Various grit finish for specific polish finished requirements.


COLD FORMING

Type 444 provides excellent formability and can be readily deep drawn and spin formed. Stretch forming, however, is limited in application for this alloy.

HEAT TREATMENT

Type 444 is non-heat treatable.

Q: What are the details of your after sales service?
A:1) We provide the necessary technical support to all of our customers, such as material performance and heat treatment data advice.

2) We provide the appropriate steel material technical parameters for customers in Germany, The USA, Japan, Britain, and other countries.

Q: How could I get a sample?
A: Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.
