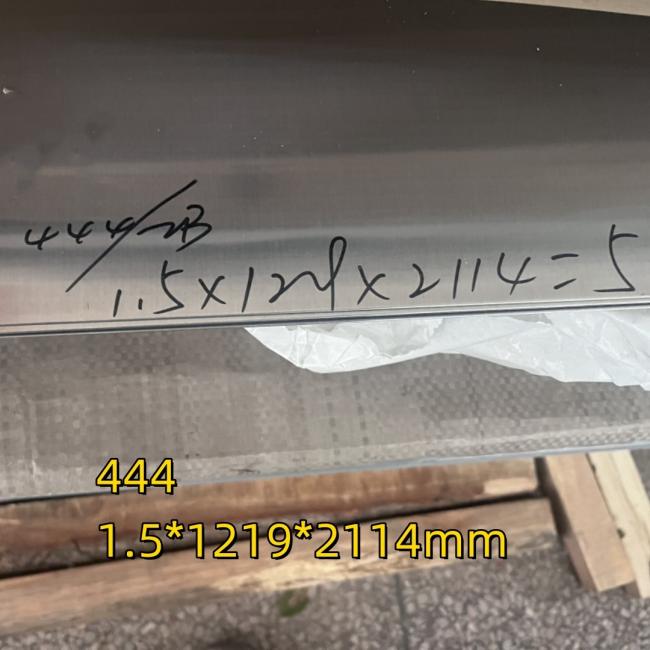

Stainles Steel Plate Material SUS444 THK 3MM LENGTH 2440MM WEDTH 1220MM
Stainles Steel Plate Material SUS444 THK 3MM, LENGTH 2440MM, WEDTH 1220M
| Product Name | stainless steel plate/sheet | |||
| Commodity | Austenitic, Ferritic, Martensitic, Duplex, Cold rolled, Hot rolled | |||
| Grade | 201, 202, 301, 304, 304j1, 304L, 321, 309s, 310s, 2205, 409L, 410, 410s, 420, 420j1, 420j2, 430, 439, ,430j1L,443, 444, etc | |||
| Standard | ISO, JIS, ASTM, AS, EN, GB,DIN, JIS etc | |||
| surface | N0.1, N0.2, N0.3, N0.4, N0.5, N0.6, N0.7, N0.8, 2D, 2B, HL, BA, 6K, 8K, etc | |||
| Length | 1000mm-11000mm or as customer' s requirement | |||
| Thickness | 0.3-100mm | |||
| Width | 600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm or as customer' s requirement | |||
| MOQ | 1MT | |||
| Packaging | Export standard, seaworthy | |||
| Trade Term | FOB, CFR, CIF | |||
| Transport Type | Container, bulk and train | |||
| Loading port | Shanghai, Qingdao, Tianjin, etc | |||
| Payment terms | T/T or West Union | |||
| Delivery time | 3-15 days subject to the clients' requirement and quantity | |||
Strip, Coil, Foil, Wire, ASTM A268, ASTM A240
APPLICATIONS
Food processing, brewery and wine making equipment, hot-water tanks, heat-exchanger tubing and automotive components
DESCRIPTION
Type 444 is a low carbon, low nitrogen, ferritic stainless steel that provides pitting and crevice corrosion resistance superior to most ferritic stainless steels. Applications requiring superior corrosion resistance and resistance to chloride stress corrosion cracking are ideal for this alloy.
CHEMISTRY TYPICAL
Carbon: 0.025 max
Manganese: 1.00 max
Silicon: 0.60
Chromium: 17.50-19.50
Nickel: 01.00 max
Molybdenum: 1. 75-2.50
Titanium+ Columbium : 0.20 + 4x (Carbon+ Nitrogen) min-0.80 max
Phosphorus: 0.040 max
Sulfur: 0.030 max
Iron: Balance
PHYSICAL PROPERTIES
Density: 0.28 lbs/in3 7.75 g/cm3
Electrical Resistivity: microhm-in (microhm-cm):
68 ° F (20 ° C): 22.50 (57)
Specific Heat: BTU/lbl° F (kJ/kg•K):
32 - 212 ° F (0 - 100 ° C): 0.102 (0.427)
Thermal Conductivity: BTU/hr/ft2/ft/° F (W/m•K)
At 212 °F (100 °C): 15.5 (26.8)
Mean Coefficient of Thermal Expansion: in/inl° F (µm/m•K):
32 - 212 ° F (0 - 100 °C): 6.1 x 10-s (11.0)
Modulus of Elasticity: ksi (MPa)
29 x 103 (200 x 103) in tension
Magnetic Permeability: Magnetic
Melting Range: 2700 - 2790 ° F (1482 - 1532 °C)
FORMS
Coil - Strip, Foil, Ribbon Wire - Profile, Round, Flat, Square
MECHANICAL PROPERTIES AT ROOM TEMPERATURE
PROPERTIES: ANNEALED
Ultimate Tensile Strength: 60 KSI min (414 MPa min)
Yield Strength (0.2% offset): 40 KSI min (276 MPa min)
Elongation: 22% min
Hardness: Rb 90 max
PROPERTIES: TEMPERED
Type 444 can be rolled to various tempers. Consult Ulbrich Technical Services if temper rolled product is required.
ADDITIONAL PROPERTIES
CORROSION RESISTANCE
Refer to NACE (National Association of Corrosion Engineers) for recommendations.
FINISHES
# 1 - Hot rolled annealed and descaled. It is available in strip, foil and ribbon. It is used for applications where a smooth decorative finish is not required.
# 2D - Dull finish produced by cold rolling, annealing and descaling. Used for deep drawn parts and those parts that need to retain lubricants in the forming process. # 2B - Smooth finish produced by cold rolling, annealing and descaling. A light cold rolling pass is added after anneal with polished rolls giving it a brighter finish than 2D.
#BA- Bright annealed cold rolled and bright annealed
#CBA- Course bright annealed cold rolled matte finish and bright anneal
#2 - Cold Rolled
# 2BA- Smooth finish produced by cold rolling and bright annealing. A light pass using highly polished rolls produces a glossy finish. A 2BA finish may be used for lightly formed applications where a glossy finish is desired in the formed part. Polished - Various grit finish for specific polish finished requirements.
* Not all finishes are available for all alloys - Contact Ulbrich Sales for more information.
WIRE FINISHES
XC - Extra clean bright annealed or bright annealed and cold rolled Grease - Ultra-bright finish (for decorative applications) Soap - Soap is not removed from tempered wire to act as a lubricant.
* Contact Ulbrich Wire for custom wire finishes.
COLD FORMING
Type 444 provides excellent formability and can be readily deep drawn and spin formed. Stretch forming, however, is limited in application for this alloy.
HEAT TREATMENT
Type 444 is non-heat treatable.
A1: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.
Q2. Where is your factory ?
A2: Our company's processing center is located in Jiangsu, Wuxi, China.
Which is well equipped with kinds of machines, such as laser cutting machine,mirror polishing machine and so on.
We can provide a wide range of personalized services according to the customers' needs.
Q3:How to confirm the Product Quality before placing orders?
A3:You can get free samples for some products,you only need to pay the shipping cost or arrange a courier to us and take the samples. The third-party will be accepted.
Q4. What are the advantages of your company ?
A4: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.
Q5. How many coutries you already exported ?
A5: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt,Turkey, Jordan, India, etc.
Q6:What is your delivery time?
A6: For stocks, we could transport the goods to loading port within 7 days after we received your deposit
For production period, it usually takes about 15 days-30 days after receiving the deposit.
Q7. Can you provide sample ?
A7: Small samples in store and can provide the samples for free.
Customized samples will take about 5-7days.
