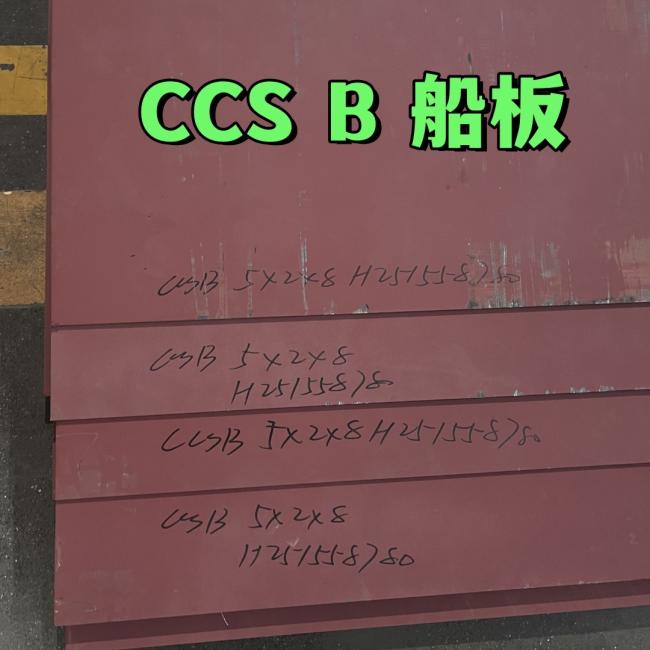

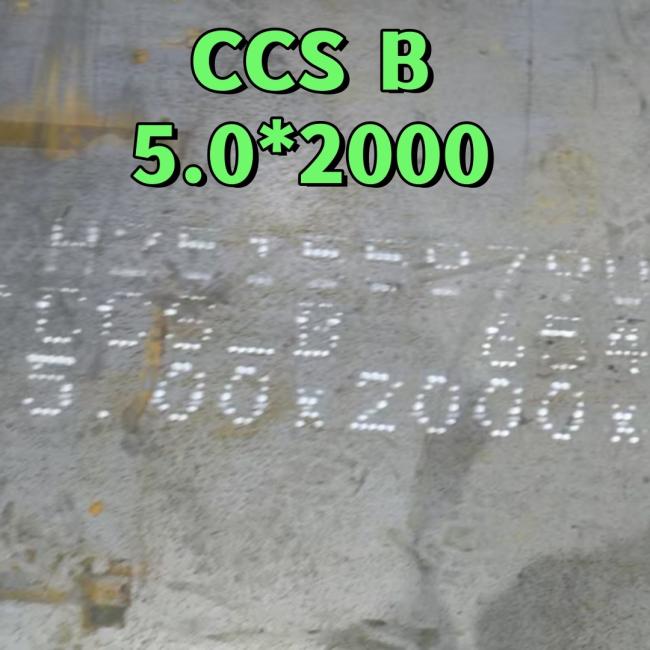

Hot Rolled Grade B CCS B Shipping Steel Plate 5*2000*8000MM Used To Shipbuilding Project
Hot Rolled Grade B CCS B Shipping Steel Plate 5*2000*8000MM Used To Shipbuilding Project
Product Description
| Standard | CCS/ABS/LR/GL/BV/DNV/NK/KR/RINA | ||||||||
| Material |
A/B/D/E,A32/D32/E32/F32,A36/D36/E36/F36,A40/D40/E40/F40,A131A/B/D/E/ AH32/DH32/EH32/AH36/DH36/EH36/AH40/DH40/EH40 NVA420/D420/E420,NVA460/D460/E460,NVA500/D500/E500,NVA550/D550/E550 |
||||||||
| Grade | A/B/D/E | ||||||||
| Surface | Coated/Oiled | ||||||||
Condition of Delivery:
| Variety | Condition of Delivery |
| Grade A & B plates with h≤50mm | Hot-rolled, CNC-rolled or normalized |
| Grade D plates with h≤35mm | |
| Grade D&E plates with h>35mm | Normalized |
| Grade A32, A36, D32 & D36 plates with h≤25mm | CNC-rolled, normalized |
| Grade A32, A36, D32, D36, E32 & E36 plates with h>25mm | Normalized |
| Grade | C | Si | Mn | P | S | Als | Ti | Cu | Cr | Ni | Mo | Nb | V |
| AH32 | ≤0.18 | ≤0.50 | 0.9~1.6 | ≤0.035 | ≤0.035 | ≥0.015 | ≤0.02 | ≤0.35 | ≤0.20 | ≤0.40 | ≤0.08 | 0.02~0.05 | 0.05~0.10 |
| DH32 | ≤0.18 | ≤0.50 | 0.9~1.6 | ≤0.035 | ≤0.035 | ≥0.015 | ≤0.02 | ≤0.35 | ≤0.20 | ≤0.40 | ≤0.08 | 0.02~0.05 | 0.05~0.10 |
| EH32 | ≤0.18 | ≤0.50 | 0.9~1.6 | ≤0.035 | ≤0.035 | ≥0.015 | ≤0.02 | ≤0.35 | ≤0.20 | ≤0.40 | ≤0.08 | 0.02~0.05 | 0.05~0.10 |
| FH32 | ≤0.16 | 0.1~0.5 | 0.9~1.6 | ≤0.025 | ≤0.025 | ≥0.015 | ≤0.02 | ≤0.35 | ≤0.20 | ≤0.80 | ≤0.08 | 0.02~0.05 | 0.05~0.10 |
| AH36 | ≤0.18 | ≤0.50 | 0.9~1.6 | ≤0.035 | ≤0.035 | ≥0.015 | ≤0.02 | ≤0.35 | ≤0.20 | ≤0.40 | ≤0.08 | 0.02~0.05 | 0.05~0.10 |
| DH36 | ≤0.18 | ≤0.50 | 0.9~1.6 | ≤0.035 | ≤0.035 | ≥0.015 | ≤0.02 | ≤0.35 | ≤0.20 | ≤0.40 | ≤0.08 | 0.02~0.05 | 0.05~0.10 |
| EH36 | ≤0.18 | ≤0.50 | 0.9~1.6 | ≤0.035 | ≤0.035 | ≥0.015 | ≤0.02 | ≤0.35 | ≤0.20 | ≤0.40 | ≤0.08 | 0.02~0.05 | 0.05~0.10 |
| FH36 | ≤0.16 | 0.1~0.5 | 0.9~1.6 | ≤0.025 | ≤0.025 | ≥0.015 | ≤0.02 | ≤0.35 | ≤0.20 | ≤0.80 | ≤0.08 | 0.02~0.05 | 0.05~0.10 |
| AH40 | ≤0.18 | ≤0.50 | 0.9~1.6 | ≤0.035 | ≤0.035 | ≥0.015 | ≤0.02 | ≤0.35 | ≤0.20 | ≤0.40 | ≤0.08 | 0.02~0.05 | 0.05~0.10 |
| DH40 | ≤0.18 | ≤0.50 | 0.9~1.6 | ≤0.035 | ≤0.035 | ≥0.015 | ≤0.02 | ≤0.35 | ≤0.20 | ≤0.40 | ≤0.08 | 0.02~0.05 | 0.05~0.10 |
| EH40 | ≤0.18 | ≤0.50 | 0.9~1.6 | ≤0.035 | ≤0.035 | ≥0.015 | ≤0.02 | ≤0.35 | ≤0.20 | ≤0.40 | ≤0.08 | 0.02~0.05 | 0.05~0.10 |
| FH40 | ≤0.16 | 0.1~0.5 | 0.9~1.6 | ≤0.025 | ≤0.025 | ≥0.015 | ≤0.02 | ≤0.35 | ≤0.20 | ≤0.80 | ≤0.08 | 0.02~0.05 | 0.05~0.10 |
Shipbuilding Steel Plate Mechanical Properties
| Grade | Thickness(mm) max | Yieldpoint(Mpa) min | Tensile Strength(Mpa) |
Elongation(%) min |
V-impact test | cold bend test | |||
| Temperature(ºC) | Average AKV | b=2a 180° | b=5a 120° | ||||||
| lengthways Min | crosswise Min | ||||||||
| A | 50 | 235 | 400~520 | 22 | - | - | - | - | d=2a |
| B | 50 | 235 | 400~520 | 22 | 0 | 27 | 20 | - | d=3a |
| D | 50 | 235 | 400~520 | 22 | -10 | 27 | 20 | - | d=3a |
| E | 50 | 235 | 400~520 | 22 | -40 | 27 | 20 | - | d=3a |
| AH32 | 50 | 315 | 440~570 | 22 | 0 | 31 | 22 | - | d=3a |
| DH32 | 50 | 315 | 440~570 | 22 | -20 | 31 | 22 | - | d=3a |
| EH32 | 50 | 315 | 440~570 | 22 | -40 | 31 | 22 | - | d=3a |
| FH32 | 50 | 315 | 440~570 | 22 | -60 | 31 | 22 | - | d=3a |
| AH36 | 50 | 355 | 490~620 | 21 | 0 | 34 | 24 | - | d=3a |
| DH36 | 50 | 355 | 490~620 | 21 | -20 | 34 | 24 | - | d=3a |
| EH36 | 50 | 355 | 490~620 | 21 | -40 | 34 | 24 | - | d=3a |
| FH36 | 50 | 355 | 490~620 | 21 | -60 | 34 | 24 | - | d=3a |
| AH40 | 50 | 390 | 510~660 | 20 | 0 | 41 | 27 | - | - |
| DH40 | 50 | 390 | 510~660 | 20 | -20 | 41 | 27 | - | - |
| EH40 | 50 | 390 | 510~660 | 20 | -40 | 41 | 27 | - | - |
| FH40 | 50 | 390 | 510~660 | 20 | -60 | 41 | 27 | - | - |
Shipbuilding Plate Available Dimensions
| Item | Thickness (mm) | Width (mm) | Length/coil diameter(mm) |
| Shipbuilding plate | 6~50 | 1300~3000 | 3000~15000 |
| Shipbuilding coil | 6~20 | 1500~2000 | 760+20~760-70 |
Additional Condition
UT (Ultrasonic examination),AR(As Hot Rolled only),TMCP(Thermal Mechanical Control Processing),N(Normalized),Q+T(Quenched and Tempered),
Z Direction Test(Z15,Z25,Z35) ,Charpy V-Notch Impact Test,The Third Party Test (such as SGS Test), Coated or Shot Blasting and Painting.
Other Terms
A)Packaging Details: Standard export seaworthy packing or as required.
B)Delivery Time:30-50 days, 7 days for stock goods.
C)Loading Port:Shanghai ,Tianjin, Qingdao.
D)Offer Ability:5000MT/Per Month.
E)MOQ:1 Pcs.
Packaging & Shipping
Packaging: standard export packing, or as per customers' requirement
Shipping: Break bulk ship or Container,according to the product and customer's requirements
