Pure 99.9% Red Copper Bar 150mm OD Red Copper Earthing Rod For Electrical installations
Pure 99.9% Red Copper Bar 150mm OD Red Copper Earthing Rod For Electrical installations
Product Description
1.5mm copper sheet plate sheet prices 4ft x 8 ft
Pure copper is a soft metal. When the surface is just cut, it is red orange with metallic luster, and the simple substance is purplish red. Good ductility, high thermal conductivity and conductivity, so it is the most commonly used material in cables and electrical and electronic components. It can also be used as building materials and can form many kinds of alloys.
Copper alloy has excellent mechanical properties and low resistivity, among which bronze and brass are the most important.
In addition, copper is also a durable metal, which can be recycled many times without damaging its mechanical properties.
| Copper Sheet, Copper Plate,Copper Bar | ||
| Material | C10100,C10200,C10300,C10400,C10500,C10700,C10800,C10910,C10920, C10930,C11000,C11300,C11400,C11500,C11600,C12000,C12200,C12300, C12500,C14200,C14420,C14500,C14510,C14520,C14530,C17200,C19200, C21000,C23000,C26000,C27000,C27400,C28000,C33000,C33200,C37000, C44300,C44400,C44500,C60800,C63020,C65500,C68700,C70400,C70600, C70620,C71000,C71500,C71520,C71640,C72200,etc. |
|
| Specifications | Thickness | 0.1mm-200mm |
| Width | 10mm-2500mm | |
| Length | 10mm~12000mm,or as required. | |
CHEMICAL COMPOSITION
| Grade | Chemical Composition(%) | |||||||||||||
| GB | JIS | Cu+Ag | P | Bi | Sb | As | Fe | Ni | Pb | Sn | S | Zn | O | |
| Refined Copper | T1 | C1020 | 99.95 | 0.001 | 0.001 | 0.002 | 0.002 | 0.005 | 0.002 | 0.003 | 0.002 | 0.005 | 0.005 | 0.02 |
| T2 | C1100 | 99.9 | - | 0.001 | 0.002 | 0.002 | 0.005 | - | 0.005 | - | 0.005 | - | - | |
| T3 | C1221 | 99.7 | - | 0.002 | - | - | - | - | 0.01 | - | - | - | - | |
| Oxygen Free Copper | TU0 | C1011 | 99.99 | 0.0003 | 0.0001 | 0.0004 | 0.0005 | 0.001 | 0.001 | 0.0005 | 0.0002 | 0.0015 | 0.0001 | 0.0005 |
| TU1 | C1020 | 99.97 | 0.002 | 0.001 | 0.002 | 0.002 | 0.004 | 0.002 | 0.003 | 0.002 | 0.004 | 0.003 | 0.002 | |
| TU2 | 99.95 | 0.002 | 0.001 | 0.002 | 0.002 | 0.004 | 0.002 | 0.004 | 0.002 | 0.004 | 0.003 | 0.003 | ||
PHYSICAL PROPERTIES
| Grade | Temper | Hardness(HV) | Tensile strength(Mpa) | Elongation(%) |
| C1000 C1200 C1220 etc. | Soft | <60 | >205 | ≥40 |
| 1/4H | 55-100 | 217-275 | ≥35 | |
| 1/2H | 75-120 | 245-345 | ≥25 | |
| H | 105-175 | >295 | ≥13 |

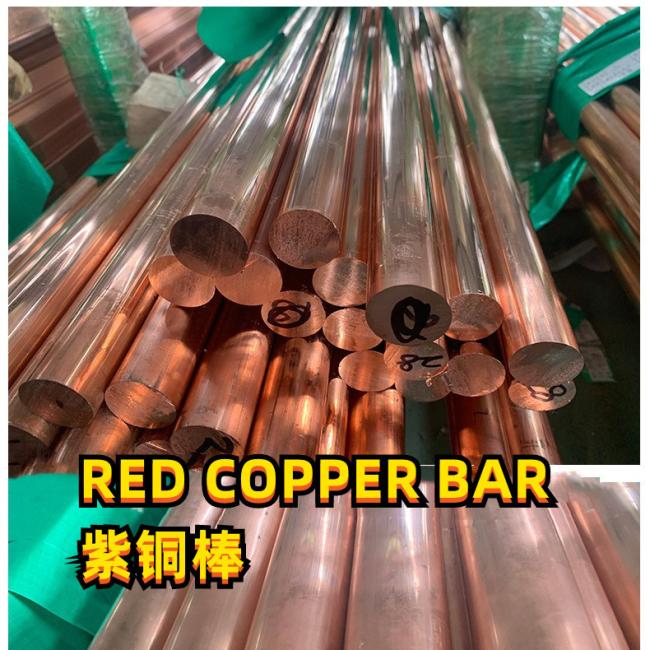

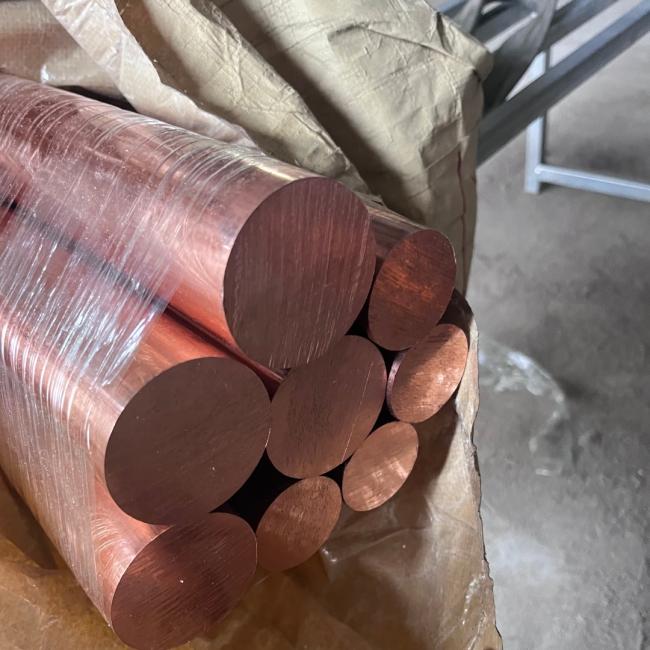

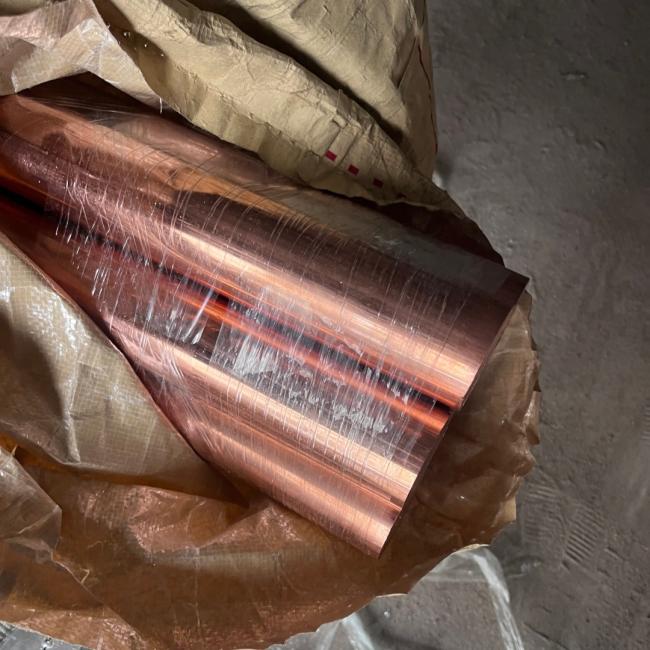

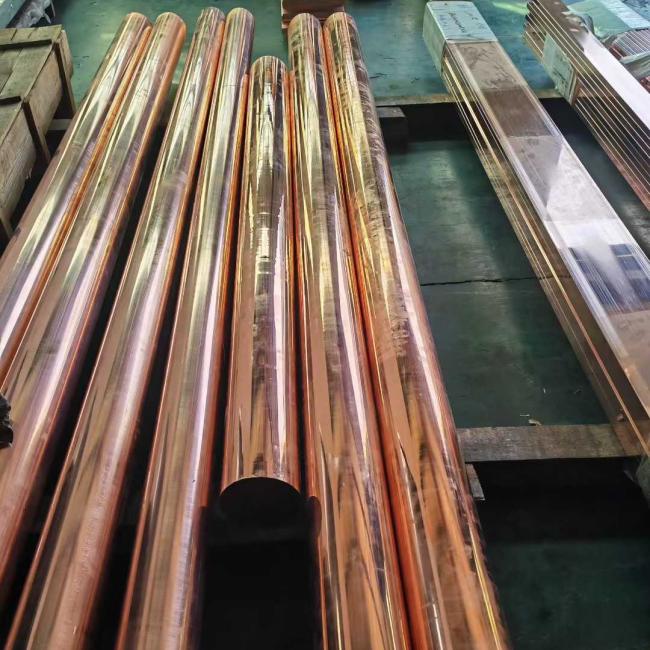

PHOTO:
APPLICATION
1) Further making utensil.
2) Solar reflective film
3) The appearance of the building
4) Interior decorating:ceilings,walls,etc.
5) Furniture cabinets
6) Elevator decoraction
7) Signs,nameplate,bags making.
8) Decorated inside and outside the car
9) Household appliances:refrigerators,microwave ovens,audio equipment,etc.
10) The consumer electronics:mobile phones,digital cameras,U disk,etc.
Q: How about the MOQ? If my first order qty is small, will you accept?
A: We would like to do our best to support your trial order qty, so even 1 pc or 1 kg is ok to start cooperation; because we have confidence to move on second order with your esteemed company.
Q: What is your payment terms ?
A: Commonly two payment term for new customers: 1) 30% T/T as deposit , 70% balance against B/L copy; 2) 100% Irrevocable L/C at sight;If you need any other terms, pls feel free to contact us too, we will try our best.
Q: How long is your delivery time?
A: Our daily inventory is more than 8000 tons, so for common product size, just need 5 days from stocks; if the special size from new production, delivery 7 days.
Q: How about the samples ? is it free or extra fees?
A: Yes, we would like to supply the samples before order; if the samples from stock, it will be free; if the samples from new production, we will charge some reasonable cost, but this amount will be deducted from your first order invoice.
Q: How to control and guarantee your shipment quality?
A: 1) All our factories are ISO9001, CE certified facility; 2) World famous origin mills as TISCO, Baosteel. 3) Ex factory inspection by our own laboratory. 4) SGS/BV Third party inspection before delivery.
