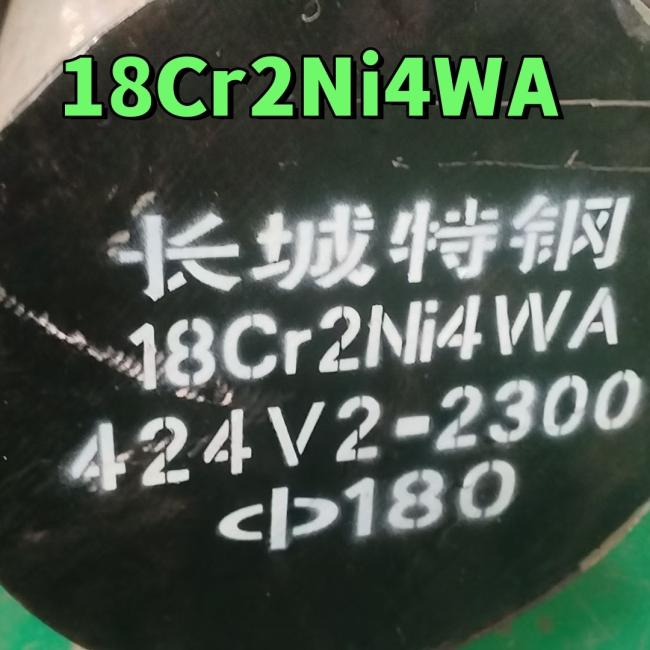

Hot Rolled JIS SNCM815 18Cr2Ni4WA Alloy Round Bar 180mm For Mechanical Engineering

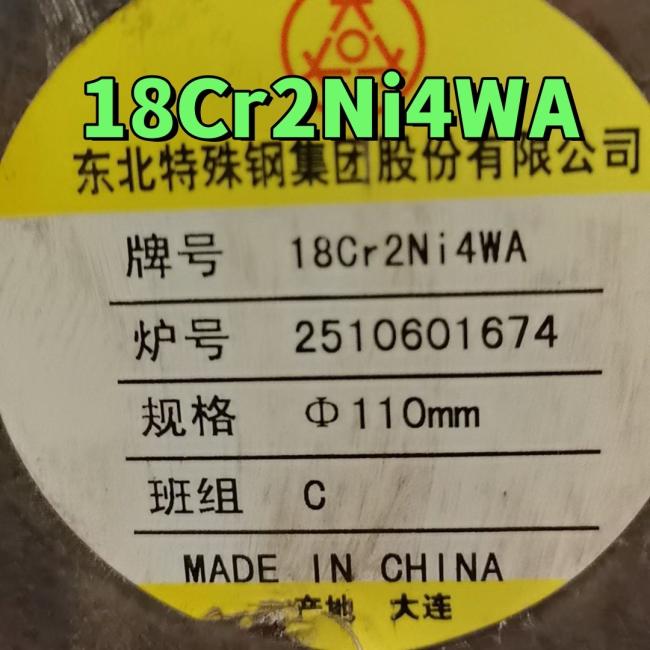

Hot Rolled DIN SNCM815 18Cr2Ni4WA Alloy Round Bar 110mm OD For Machinery
Product Description
Special Steel Round Bar
| Grade | Spec | Dimension | Steel Grade | Application industry | |
| Special Steel Round Bar | Quality carbon structural steel | GB/T699 JIS G 4051 ASTM A29 SAE,EN10083 (Others) | 12-260 | 10# ,20#,45#, 65Mn,SAE1080,S45C,etc | For Manufacturing of All Kinds of Bearing Parts, Connecting Rod. Rigging Metal Tools etc. |
| Low alloy high-strength steel | GB/T1591,(Others) | 13-260 | Q355 series,Q460C,etc | Mechanical,Car,Engineering machinery | |
| Alloy structural steel | GB/T3077,JIS,ASTM A29, EN10083,(Others) | 13-260 |
20Mn2-45Mn2,25MnV,27SiMn-42SiMn, 20Cr-40Cr,12CrMo-42CrMo,20CrMn,40CrMn,SCr420,SCr440, SCM420,SCM440, 41Cr4,20CrMoA,30CrMoA,20Cr2MoA, 20CrNiMo,20Cr2Ni4A,SAE4340, 20Cr2Ni4A,30CrMnSiA etc |
Mechanical,Car,Bridge, Petrochemical industry |
|
| Bearing steel | GB/T18254,(Others) | 14-200/5-25 wire rod and cold drawn wire |
GCr15,GCr15SiMn,C&U1,C&U2,GCr15-JN,SCP52100,SCPSS52100, GCr15S700,100CrMn6,SUJ2, SUJ2S1,SAE1055,S55C, G20CrNiMoA(SAE8620),GCr15etc |
Mechanical ,Car ,Electric machinery,Engineering machinery etc | |
| Spring Steel | GB/T1222,JIS,SAE,EN,(Others) | 13-120 |
60Si2MnA,60Si2CrA,60Si2CrVA,55CrMnA, 50CrVA,SUP9, SUP9A ,SUP11A, 55Cr3 ,51CrV4 , 52CrMoV4 ,SAE5160 SAE6150 ,SAE9254, 60SiCrVAT, 52CrMoV4 ,55SiCr etc |
Car,High Speed railway,Locomotive | |
| Round billet | 300mm-600mm ( According to the different requirement) | ||||
| Large section bar | 80mm-350mm ( According to the different requirement) | ||||
Square/Round Bar: 12~ 500mm
Flat:10~155 x 50~ 800mm
Steelmaking process: EF, EF/EAF+LF+VD, EF/EAF+ESR, hot forged/ hot rolled
Delivery condition: hot rolled, forged, annealed, quenched and tempered ,or as your special requirements.
Surface condition: black surface, polished surface, grinded surface, peeled surface, milled surface.
Hot Rolled and Forged 18Cr2Ni4WA Alloy Steel Round Bar Structure Application Diameter 20 - 300mm
Products Specification
| Products Name | 18Cr2Ni4WA Alloy Steel Round Bar |
| Diameter | 20 - 350 mm |
| Length | 6m or custom cutting any length as request |
| Type | Hot Rolled |
| Brand | BAOSTEEL DELTA DONGBEI HUAXI SHAGANG.etc |
| MOQ | 1 Ton |
| Loading Port | Shanghai Port |
| Packing | packing by steel wire rope |
| Deliver time | 5 - 7 days for stock materials |
| Other Grade |
Q195,Q235,10#,20#,35#,45#,Q215,Q345,12Cr1Mov,15CrMo ,20Cr,40Cr,20CrMo,35CrMo,42CrMo,40CrNiMo,GCr15,65Mn,50Mn, 50Cr,3Cr2W8V,20CrMnTi,25Cr2MoVA,5CrMnMo ,38CrMoAl, 30CrMnSiA,B16,31CrMoV9 |
| Standard | ASTM GB EN DIN |
| Application | Structure and Industrial |
Hot Rolled and Forged 18Cr2Ni4WA Alloy Steel Round Bar Structure Application Diameter 20 - 300mm
Introduction to 18Cr2Ni4WA Alloy Steel Round Bar
18Cr2Ni4WA is a high-strength, high-durability alloy steel commonly used in various structural applications. The alloy composition includes Chromium (Cr), Nickel (Ni), and Molybdenum (Mo), which endow the steel with exceptional mechanical properties. Hot rolled and forged 18Cr2Ni4WA alloy steel round bars with diameters ranging from 20mm to 300mm are widely utilized in industries requiring robust materials capable of withstanding heavy mechanical stress, corrosion, and high-temperature environments.
This alloy steel is particularly renowned for its excellent performance in applications such as machinery manufacturing, heavy-duty equipment, automotive components, and aerospace engineering. The steel is produced through advanced forging and hot rolling processes, which significantly enhance its strength, fatigue resistance, and overall reliability.
Chemical Composition
The key elements that make up the 18Cr2Ni4WA alloy steel are:
| Element | Composition (%) |
|---|---|
| Carbon (C) | 0.18 - 0.22 |
| Chromium (Cr) | 1.8 - 2.2 |
| Nickel (Ni) | 3.8 - 4.2 |
| Molybdenum (Mo) | 0.2 - 0.4 |
| Silicon (Si) | 0.3 - 0.6 |
| Manganese (Mn) | 0.5 - 0.8 |
| Phosphorus (P) | ≤ 0.035 |
| Sulfur (S) | ≤ 0.035 |
| Tungsten (W) | 0.4 - 0.7 |
This unique combination of alloying elements provides excellent toughness, wear resistance, and high-temperature stability.
Mechanical Properties
The mechanical properties of 18Cr2Ni4WA alloy steel round bars can be summarized as follows:
| Property | Value |
|---|---|
| Tensile Strength | 800 - 1000 MPa |
| Yield Strength | 650 - 850 MPa |
| Elongation | ≥ 15% |
| Hardness (HB) | 250 - 300 |
| Impact Toughness | ≥ 30 J at -20°C |
| Modulus of Elasticity | 200 GPa |
These mechanical properties ensure that the 18Cr2Ni4WA alloy steel is capable of withstanding high levels of stress and wear while maintaining structural integrity under extreme conditions. The tensile strength, yield strength, and impact toughness make it ideal for use in critical structural and engineering applications where reliability is essential.
Applications of 18Cr2Ni4WA Alloy Steel Round Bars
The versatility and superior mechanical properties of 18Cr2Ni4WA alloy steel make it suitable for a variety of structural and engineering applications. Some of the most common uses include:
-
Automotive Industry:
-
Manufacturing of engine components, drive shafts, and gears.
-
Production of high-performance suspension parts, bearing housings, and crankshafts.
-
-
Aerospace Industry:
-
Aircraft landing gear components, turbine engine parts, and structural components.
-
Parts requiring high tensile strength and resistance to fatigue and high temperatures.
-
-
Heavy Machinery and Equipment:
-
Construction machinery such as bulldozer blades, excavator arms, and hydraulic cylinders.
-
Mining equipment and other high-load bearing components.
-
-
Mechanical Engineering:
-
Shafts, axles, and couplings that require high mechanical strength and resistance to wear and tear.
-
Gear shafts and other rotating equipment parts.
-
