UNS N08904 stainless steel seamless tube 904L 1/8" to 10" OD

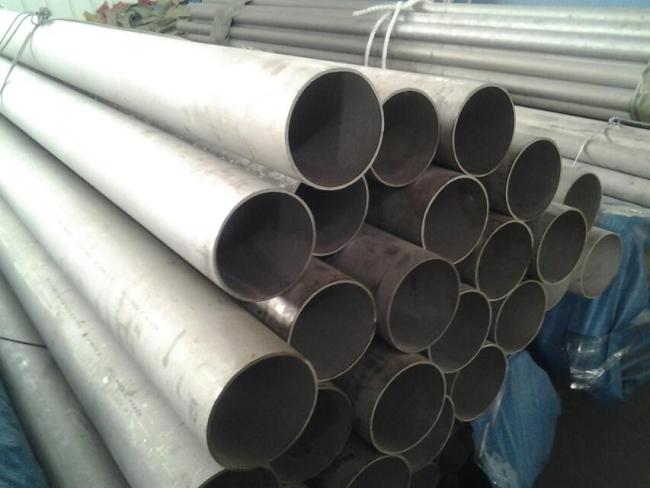

904L stainless steel seamless tube
grade: 304/304l.316;316L,310S,321,904L
OD: 1/8" to 10"
Thickness :SCH10-SCH160
Length: 6m-11m
Description:
| Stainless steel pipe | |||
| ASTM | 904L | ||
| EN | 1.4539 | ||
| AISI | 904L | ||
| JIS | SUS904L | ||
| UNS | N08904 | ||
| Standard |
ASTMA312,A213,A376,A789,A790,A376,A249,EN10217-7-2005, GB14976-2002,GB13296-2009,JIS G3459-2004,JIS3463-2006 |
||
| Outside diameter | 5mm-400mm | ||
| Wall thickness | 0.5mm-40mm | ||
| Length | 1m-12m or as required | ||
| Surface | Annealing,picking,polished,bright,hair line,brush,etc | ||
| Chemical composition |
C ≤ 0.08,Mn ≤ 2.00 ,Si ≤ 1.00,P ≤ 0.040,S ≤ 0.030,Cr:24.0-26.0, Ni:19.0~22.0 |
||
| Package | Standard export package,suit for all kinds of transport,suit for all kinds of transport. | ||
| Price term | Ex-Work,FOB | ||
| Application | Stainless steel pipes are widely used in petroleum, Foodstuff, chemical industry, construction, electric power,nuclear energy, biotechnology, machinery, papermaking, shipbuilding, boiler fields etc |
||
| Contact |
If you have any question,please feel free to contact me . |
||
Applications:
Super austenitic stainless steel (904 l stainless steel plate) is a kind of low carbon high alloyed austenitic stainless steel, in dilute sulphuric acid have good corrosion resistance, specially designed for harsh environment corrosion conditions. Has high chromium content and plenty of nickel content, the addition of copper makes it have strong ability to resist acid, especially for chloride clearance corrosion and stress corrosion cracking are highly resistant, not easy appeared pitting spots and cracks, pitting resistance slightly better with other steel grade, good machinability and weldability, can be used for pressure vessels
Specifications:
904 l stainless steel grades: 00 cr20ni25mo4. 5 cu/UNS: N08904 / EN: 1.4539
Composition ranges of grade 904L stainless steels
|
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
Cu |
|
|
904L |
min. max. |
- 0.02 |
- 2 |
- 1 |
- 0.045 |
- 0.035 |
19 23 |
4 5 |
23 28 |
1 2 |
Mechanical properties of grade 904L stainless steels
|
Grade |
Tensile Strength (MPa) min |
Yield Strength 0.2% Proof (MPa) min |
Elongation (% in 50mm) min |
Hardness |
|
|
Rockwell B (HR B) |
Brinell (HB) |
||||
|
904L |
490 |
220 |
36 |
70-90 typical |
150 |
Competitive Advantage:
1,good price and high quality
2, 5000 tons stainless steel pipes in stock

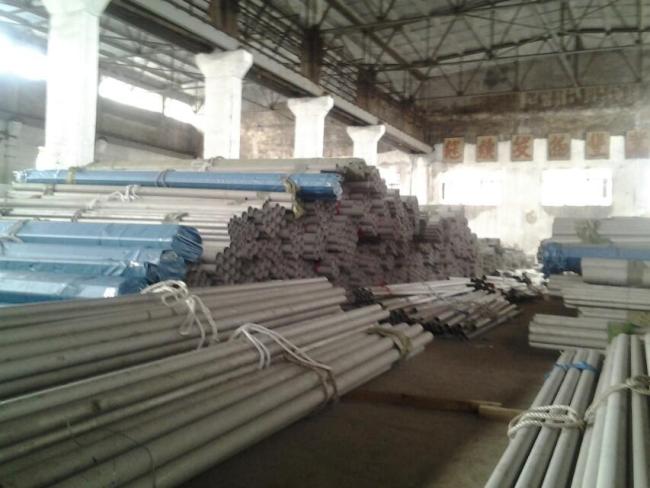

3. we have a factory in Wen zhou, our produce period is short
4, 12 years export experience
