Heat Exchange ASTM A213 SS Pipe Stainless Steel Seamless Tube TP316L Seamless Tube
Heat Exchange SS Pipe Stainless Steel Seamless Tube Grade 316L
| Products name | Stainless steel pipe / SS pipe |
| Type | seamless pipe |
| Out Diameter | 10-630mm |
| Wall Thickness | 1-50mm |
| Length | 6-11mm |
| Main Material | 304 304L 309S 310S 321 316L 316Ti 904L 2205 2507.etc |
| Deliver time | 5-15 days according to the quantity |
| Packing | Standard export seaworthy packing or as required |
| Other shape pipes | Square pipes, Rectangular tube , Special pipe |
| Surface details | Polished / not polished |
| MOQ | 2 ton |
| Port | Shanghai |
We can produce diferent standard stainless steel pipe, the mainly material and the standard is as following. we can also produce special material pipes, like 904L duplex steel 2205 2507.etc
|
Character |
General Code |
UNS Code |
Standard |
Application |
|
Stainless Steel Pipe |
304 |
S30400 |
ASTM A312 |
Chemical, Oil chemical, Heat exchange, Liquid transfer,Machinery, Paper making, Power station, Construction and etc. |
|
304L |
S30403 |
ASTM A213 |
||
|
316L |
S31603 |
ASTM A269 |
||
|
316Ti |
S31635 |
ASTM A511 |
||
|
321 |
S32100 |
ASTM A778 |
||
|
321H |
S32109 |
ASTM A554 |
||
|
310 |
S31000 |
ASTM A249 |
||
|
310S |
S31008 |
GOST9941 |
||
|
317 |
S31700 |
JIS3459 |
||
|
317L |
S31703 |
EN10216-5 |
||
|
347 |
S34700 |
DIN17458 |
Material analysis of our seamless stainless steel pipe
What is stainless steel used for?
Stainless steels of various kinds are used in thousands of applications.
- Domestic – cutlery, sinks, saucepans, washing machine drums, microwave oven liners, razor blades.
- Architectural/Civil Engineering – cladding, handrails, door and window fittings, street furniture, structural sections, reinforcement bar, lighting columns, lintels, masonry supports.
- Transport – exhaust systems, car trim/grilles, road tankers, ship containers, ships chemical tankers, refuse vehicles.
- Chemical/Pharmaceutical – pressure vessels, process piping.
- Oil and Gas – platform accommodation, cable trays, subsea pipelines.
- Medical – Surgical instruments, surgical implants, MRI scanners.
- Food and Drink – Catering equipment, brewing, distilling, food processing.
- Water – Water and sewage treatment, water tubing, hot water tanks.
- General – springs, fasteners (bolts, nuts and washers), wire.
| Grade | Chemical Composition | ||||||||
| C max | Si max | Mn max | P max | S max | Ni | Cr | Mo | Others | |
| TP 304 | 0.08 | 0.75 | 2 | 0.04 | 0.03 | 8 - 11 | 18 - 20 | ||
| TP 304L | 0.035 | 0.75 | 2 | 0.04 | 0.03 | 8 - 13 | 18 – 20 | ||
| TP 310S | 0.08 | 0.75 | 2 | 0.045 | 0.03 | 19 - 22 | 24 -26 | 0.75 max | |
| TP 316 | 0.08 | 0.75 | 2 | 0.04 | 0.03 | 10 - 14 | 16 – 18 | 2 – 3 | |
| TP 316L | 0.035 | 0.75 | 2 | 0.04 | 0.03 | 10 - 15 | 16 - 18 | 2 - 3 | |
| TP 317 | 0.08 | 0.75 | 2 | 0.04 | 0.03 | 11 - 14 | 18 - 20 | 3 - 4 | |
| TP 321 | 0.08 | 0.75 | 2 | 0.04 | 0.03 | 9 - 13 | 17 - 20 | Ti: 5×C% | |
| Mechanical Properties | |||||
| Grade | Tensile Strength Mpa, (Min) | Yield Strength Mpa, (Min) | %Age Elongation in 50mm gauge length min | Hardness (Max) | |
| BHN | Rb | ||||
| 301 | 585 | 244 | 56 | 197 | 75 |
| 304 | 585 | 244 | 56 | 191 | 72 |
| 304L | 585 | 210 | 56 | 191 | 72 |
| 310S | 615 | 245 | 56 | 197 | 75 |
| 316 | 615 | 245 | 57 | 197 | 75 |
| 316L | 585 | 215 | 56 | 197 | 75 |
| 321 | 615 | 245 | 56 | 197 | 75 |

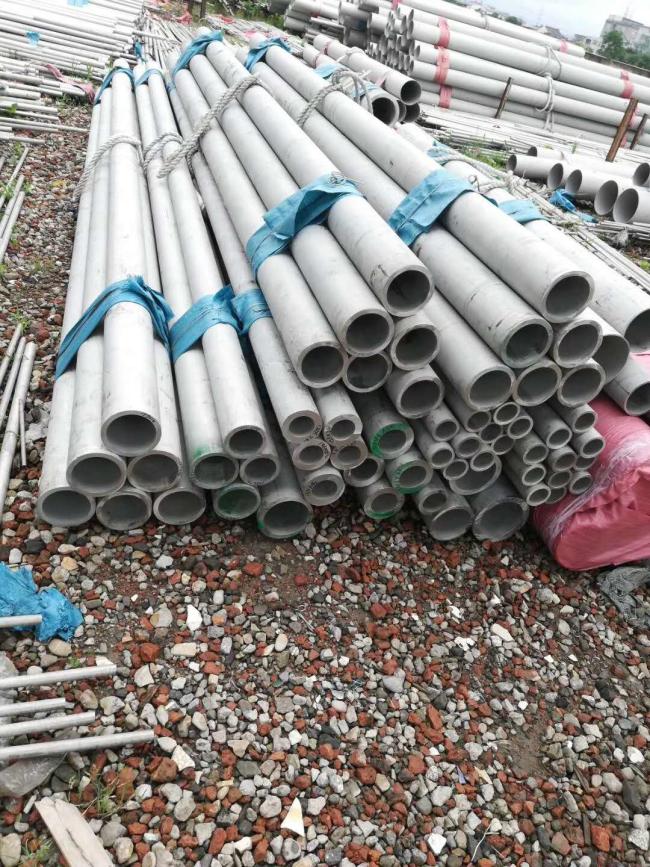

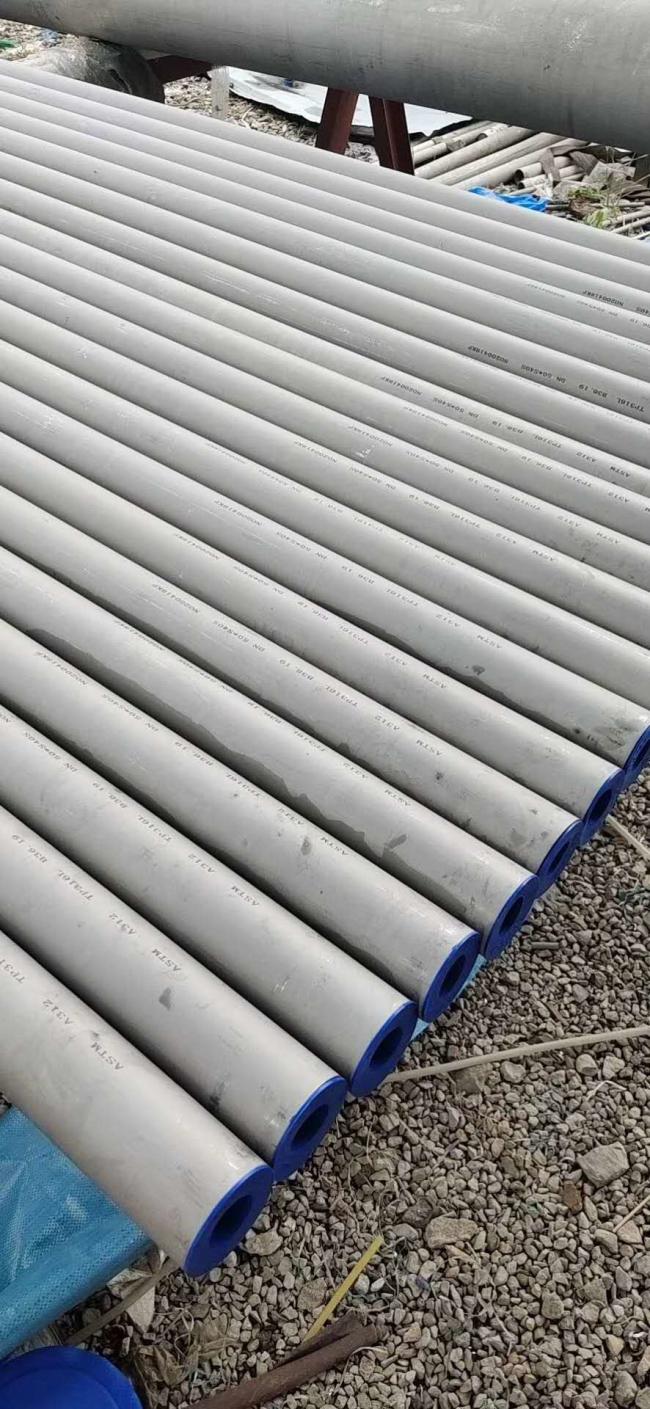

Photos of our seamless stainless steel pipe
