Construction Material 316L Stainless Steel Metal Sheet 1.4404 SS316L SUS316L Inox Sheet
Construction Material 316L Stainless Steel Metal Sheet 1.4404 SS316L SUS316L Inox Sheet
Product Parameters
Stainless steel plate is an alloy material made from iron with the addition of chromium, nickel and other elements. According to different compositions and uses, stainless steel sheet can be divided into many different types. Some common types of stainless steel sheet will be introduced below.
1, chromium stainless steel plate: chromium stainless steel plate is one of the most common types of stainless steel plate. It contains at least 10.5% chromium, which can form a layer of dense chromium oxide film and play a role in corrosion prevention. Chromium stainless steel plate has good corrosion resistance and high temperature resistance, widely used in chemical, petroleum, pharmaceutical and other fields.
2, nickel stainless steel plate: nickel stainless steel plate is a stainless steel plate with high nickel content. Nickel can improve the corrosion resistance and toughness of stainless steel, so that it has better oxidation resistance. Nickel stainless steel plate is commonly used in the manufacture of chemical equipment, marine equipment and so on.
3, titanium stainless steel plate: titanium stainless steel plate is a stainless steel plate containing titanium. Titanium can improve the strength and corrosion resistance of stainless steel, so that it has better wear resistance and high temperature resistance. Titanium stainless steel plate is widely used in aerospace, shipbuilding and other fields.
4, aluminium alloy stainless steel plate: aluminium alloy stainless steel plate is a kind of stainless steel plate containing aluminium element. Aluminium can improve the strength and corrosion resistance of stainless steel, so that it has better wear resistance and high temperature resistance. Aluminium alloy stainless steel plate is commonly used in automotive manufacturing, construction and other fields.
5, titanium composite stainless steel plate: titanium composite stainless steel plate is a kind of material compounded by stainless steel plate and titanium metal plate. It combines the corrosion resistance of stainless steel and the strength of titanium metal, with better wear resistance and high temperature resistance. Titanium metal composite stainless steel plate is commonly used in shipbuilding, chemical equipment and other fields.
In addition to the above several common types of stainless steel plate, there are many other types of stainless steel plate, such as duplex stainless steel plate, martensitic stainless steel plate and so on. Each type of stainless steel plate has its unique characteristics and application areas, and users should choose according to specific needs.
Detailed Information:
| Typical chemical composition | ||||
| % | 304 | 304L | 310s | 321 |
| C | 0-0.07 | 0-0.03 | 0.8 | 0.08 |
| Mn | 0-2.0 | 0-2.0 | 2.00 | 2.00 |
| Si | 0-1 | 0-1 | 1.00 | 1.00 |
| P | 0-0.05 | 0-0.05 | 0.035 | 0.035 |
| S | 0-0.02 | 0-0.02 | 0.030 | 0.03 |
| Cr | 17.5-19.5 | 17.5-19.5 | 24.0-26.0 | 17.0-19.0 |
| Ni | 8-10.5 | 8-10.5 | 19.0-22.0 | 9.0-12.0 |
| Mo | ||||
| TI | 5×C% | |||
| Fe | Balance | Balance | ||
| Item | Material | Specification |
| 316Series Stainlee Steel Sheet/Plate | 316L/2B | Thickness:0.4-40 mm Width:≥1000 mm Length:≥6000 mm |
| 316L/NO.1 | ||
| 316Ti | ||
| 317L | ||
| 317L | ||
| 304 Series Stainlee Steel Sheet/Plate | 304/2B | Thickness:0.4-40 mm Width:≥1000 mm Length:≥6000 mm |
| 304/NO.1 | ||
| 304L/NO.1 | ||
| 321 Series Stainlee Steel Sheet/Plate | 321/2B | Thickness:0.4-60 mm Width:≥1000 mm Length:≥6000 mm |
| 321/NO.1 |
Surface Finishing:
| Surface | Definition | Application |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. |
Chemical tank, pipe. |
| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size | Building Construction. |
| BA (No.6) |
Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| Mirror (No.8) |
Shinning like a mirror | Building construction |

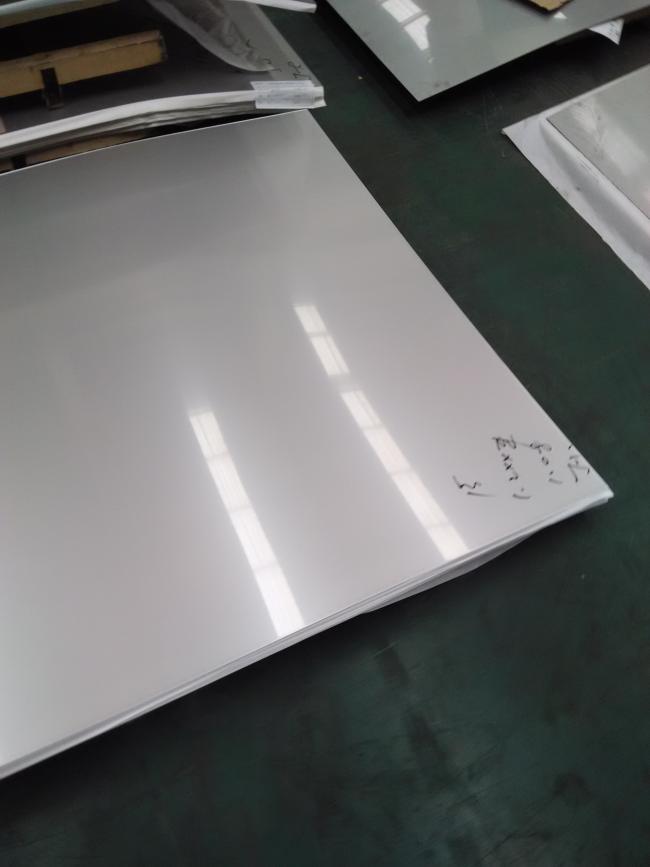

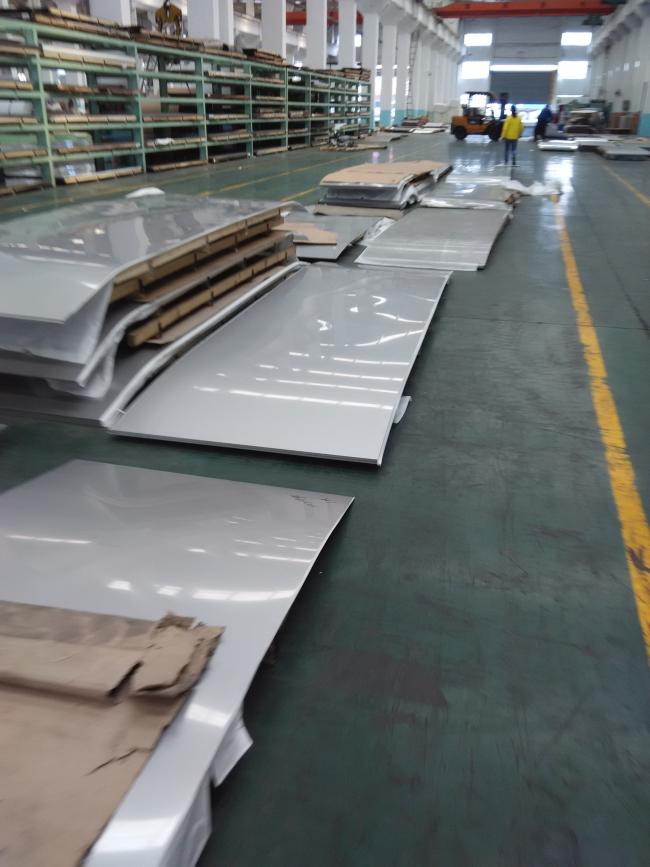

Product Shows :
Packing:
1.with wooden pallets, or film covered, in the containers.
2.Export standard package or as the customers' demands.
3.seaworthy wooden cases,
4.with or without edge protector,steel hoop and seals,
5.export -ted standard package or as customers signal requirement
Our Advantage:
(1) Rapid transportation
(2) High quality , quantity is with preferential treatment
(3) We can cut stainless steel sheet in any shapes
(4) Famous stainless steel company in China and overseas.
(5) Strong ability to supply
(6) Branded stainless steel
(7) Bottom price
(8) Reliable quality and service
