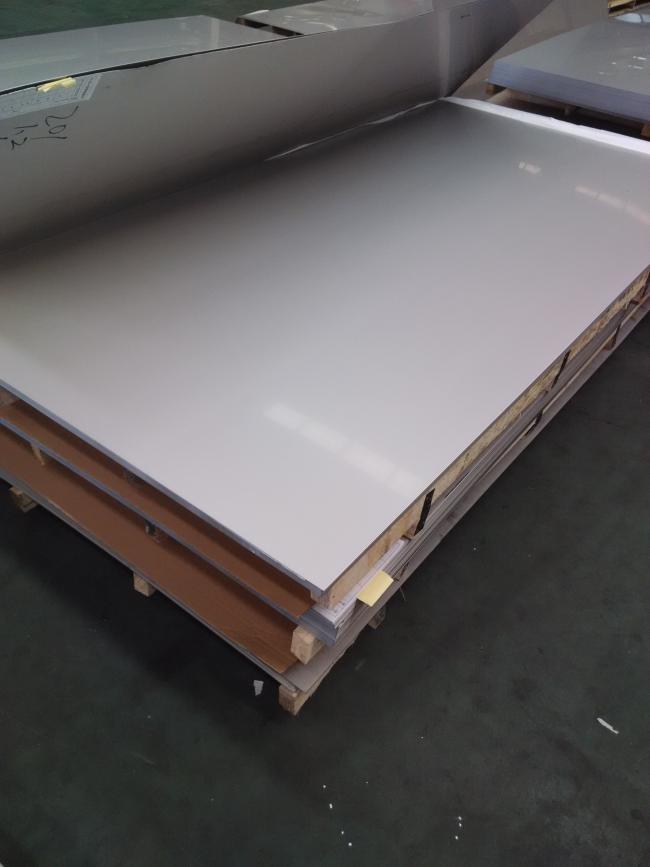

430 Super Mirror 8K Finish Stainless Steel Plate AISI For Construction Field
1) Material :
200 Series:201, 202
300 series:301,302,303,304,304L,304H,304N,305,309,309S,310,
310S,316,316L,316Ti,317,317L,321,321H,347M347H
400 series: 408,409,410,416,420,430,436,439,440,441,443,444
600series:610,620,630
900series:904L
Duplex stainless steel :S32750,S31803,S31500,2507,2205,etc
2)Surface finish: No.1,No.2D, No.2B,BA, No.3,No.4,No 240, No.320,
No.400,HL, No.7,No
3) Standard: GB/T4237-2009
GB/T4238-2009
GB/T3280-2007
GB/T4237-2007
JIS G4304-2005
JIS G4305-2005
ASTM A240/240M-10
ASTM A240-05
4)Rolling range: Thickness*Width*Length 0.3-100mm*500-4200mm
*500-18000mm or as per your request
Thickness: 0.3mm-3.0mm (Cold Rolled Stainless Steel Plate)
3mm-100mm (Hot Rolled Stainless Steel Plate)
Width:500mm, 1000mm,1219mm,1250mm,1500mm,
Length: 500mm,2000mm,3000mm,2438mm,as customer requirement
Transports---------Containler sizes:
20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
40ft HC:12032mm(Lengh)x2352mm(Width)x2698mm(High)
20feet container load 25tons coils whose length is under 5.8m
40feet container load 25tons coils whose length is under 11.8m
|
Model Name |
China Supplier Cold Rolled AISI 430 304 / 304L / 316L / 430 Stainless Steel Sheet |
|
Type |
201,202,304,304l,316,316l,321,410,430 |
|
Color |
Silver white |
|
Standard |
ASTM,AISI,DIN |
|
Surface |
No.1,No.4,2B,BA,HL,8K, mirror |
|
Thickness |
0.3-6.0mm, or as your requirement |
|
Width |
100mm-2000mm, or as your requirement |
|
Length |
1000mm-6000mm, or as your requirement |
|
Feature |
Corrosion and heat resistance, good toughness |
|
Application |
1: Chemical industry equipment, industrial tanks 2: Medical instruments, tableware, kitchen utensil and kitchen ware. 3: Architectural purpose, milk or food processing facilities. 4: Hospital equipment, interior exterior decoration for building 5: Architectural purposes, escalators, kitchen ware and vehicles. Or they can be made as your requirement. |
Surface description
|
Surface |
Picture |
Features |
|
2B |
|
The surface brightness and flatness of 2B is better than 2D. Then through a specialsurface treatment to improve its mechanical properties, it could nearly satisfy comprehensive uses. |
|
No.1 |
|
Polished with abrasive belt of grit#100-#200, have better brightness with discontinuous coarse stria, used as inner and external ornaments for building, electrical appliances and kitchen utensils etc. |
|
No.4 |
|
Polished with abrasive belt of grit #150-#180,have better brightness with discontinuous coarse stria, but thinner than No3, are used as bathtub buildings inner and external ornaments electrical appliances kitchen utensils and food processing equipment etc. |
|
HL |
|
Polished with abrasive belt of grit #150 #320 on the NO.4 finish and has continuous streaks, mainly used as buildings ornaments elevators, door of building, frontal plate etc. |
|
BA |
|
Cold rolled, bright annealed and skin-passed, the product have excellent brightness and good reflexivity like mirror, kitchen apparatus, ornament etc. |
|
8k |
|
The product have excellent brightness and prefer reflexivity can to be the mirror. |
Chemical composition & physical properties
|
Chemical composition of Stainless Steel 304 |
||||||||
|
chemical element |
C |
Si |
Mn |
P |
S |
Cr |
Ni |
Others |
|
Ingredient |
<=0.07 |
<=1.0 |
<=2.0 |
<=0.035 |
<=0.03 |
17.0-19.0 |
8.0-11.0 |
|
|
Physical Properties of Stainless Steel |
|
|
Tensile Strength (MPa) |
520 |
|
Compression Strength (MPa) |
205-210 |
|
Proof Stress 0.2% (MPa) |
205-210 |
|
Elongation A5 (%) |
Min40 |
|
Hardness Rockwell B |
92 |
