S31803/S32205 Duplex Stainless Steel Plate DIN 1.4462 Duplex Steel Laser Cutting
S31803/S32205 Duplex Stainless Steel Plate DIN 1.4462 Duplex Steel Laser Cutting
1. Steel Grade: ASTM A240 2205/ S32205
2. Product name: ASTM A240 2205/ S32205/ Stainless Steel Plate
3.Size: thickness: 2-300mm
width: 1000-3000mm
length: 3000-12000mm or as required
4.Heat Treatment: as required
5.Standard: ASTM,GB,JIS,DIN,BS
For more information of ASTM A240 2205 stainless steel plates, please check them in following:
| ASTM A240 2205 Chemical Composition | |||||||
| Grade | The Element Max (%) | ||||||
| C | Mn | P | S | Si | Cr | Ni | |
| ASTM A240 2205 | 0.03 | 2.00 | 0.030 | 0.020 | 1.0 | 22-23 | 4.5-6.5 |
| Mo | N | Ti | Cb | ||||
| 3-3.5 | 0.14-0.20 | - | 0.8 | ||||
| ASTM A240 2205 Mechanical Property | |||||
| Grade | |||||
| Yield | Tensile | Elongation | Hardness, max | ||
| ASTM A240 2205 | Min Mpa | Mpa | Min % | Brinell | Rockwell B |
| 450 | 655 | 25% | 293 | - | |
| Item | S32205 stainless steel |
| Standard | ASTM A240,GB/T3280-2007,JIS4304-2005,ASTM A167,EN10088-2-2005,etc |
| Material |
316N,N08904,310S,309S,316,316L,316Ti,317,317L,317LMN,317LN,321,321H,347, 347H,304,304L,301,302,201,202, 410,420,430,0Cr25Ni20,0Cr23Ni13,0Cr17Ni12Mo2,0Cr18Ni12Mo3Ti,0Cr19NI13Mo3, 0Cr18Ni9Ti,0Cr18Ni11Nb,0Cr18Ni9,0Cr19Ni10,1Cr17Ni7,1Cr13,2Cr13,3Cr13,1Cr17, EN1.4372,EN1.4373,EN1.4319,EN1.4301,EN1.4306,EN1.4315,EN1.4303,EN1.4833, EN1.4845,EN1.4401,EN1.4571,EN1.4404,EN1.4429,EN1.4438,EN1.4541,EN1.455, EN1.4477,EN1.4462,EN1.4402,EN1.4016,EN1.4113,etc |
| Surface | 2B,BA,NO.1,NO.4,NO.8,8K,mirror,etc |
| Thickness | 0.1mm-120mm |
| Width | 20mm-2500mm |
| Length | 2000mm-8000mm; at your request |
| Application |
a) General service industries (petroleum, food, chemical,paper, fertilizer, fabric, aviation and nuclear)
|
| Chemical Composition | C ≤ 0.030, Si ≤ 1.00,Mn ≤ 2.50,P≤0.040,S≤0.030, Cr 21.5~24.5, Ni 3.0~5.5, Mo 0.05~0.60 ,N 0.05~0.20 Cu 0.05~0.60 |
| Package |
Export standard package: bundled wooden box or be required;
|
Product details

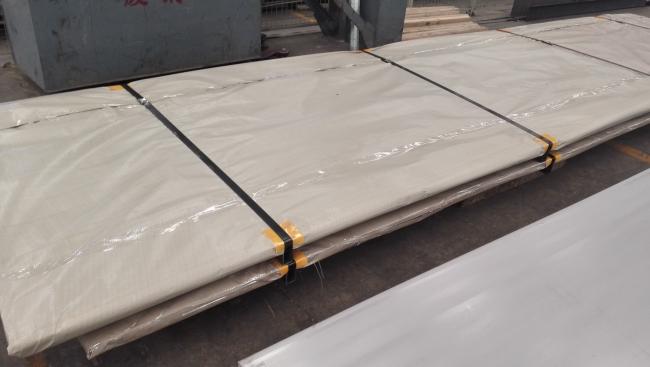

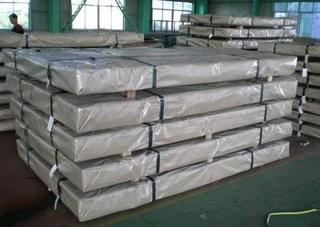

Packing&Shipping
Standard seaworthy package(wooden boxes package,pvc package, and other package duplex stainless steel plate
