Hot Rolled or Cold Drawn Prime 347H stainless steel metal sheet Plate
Stainless steel Sheet
| Type | stainless steel |
| Thickness | 0.3-3.0mm or Customer's request |
| Size | 1500*3000mm,1500*6000mm,1000*2000mm,1800*6000mm, or as request. |
| Application | Decoration , construction etc |
| Surface | 2B,BA,HL,BK,NO.1,No.4, Hairline, Mirror, Etching, PVD Color, Embossed, Vibration, Sandblast |
| Material | 201/201/304/304L/316/316L/420/309S/310S/904L |
| Origin | POSCO,JISCO,TISCO,LISCO,BAOSTEEL etc. |
| Packing way | PVC+ waterproof paper + strong sea-worthy wooden package |
Chemical & Mechanical & Physical Properties
| Chemical Properties | ||||||||
| % | C | Cr | Mn | Ni | P | S | Si | Cb/Ta |
| 347 | 0.08 max | min: 17.0 max: 20.0 |
2.0 max | min: 9.0 max: 13.0 |
0.04 max | 0.30 max |
0.75 max |
min:10x C max: 1.0 |
| 347H | min: 0.04 max: 0.10 |
min: 17.0 max: 20.0 |
2.0 max | min: 9.0 max: 13.0 |
0.03 max | 0.30 max |
0.75 max |
min:10x C max: 1.0 |
| Mechanical Properties: | |||||
|---|---|---|---|---|---|
| Grade | Tensile Strength ksi (min) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
| 347/347H |
75 (515) |
30 (205) |
40 | 201 | 95 |
| Physical Properties | |||||
|---|---|---|---|---|---|
| Density lbm/in3 |
Coefficient of Thermal Expansion (min/in)-°F |
Thermal Conductivity BTU/hr-ft-°F | Specific Heat BTU/lbm -°F | Modules of Elasticity (annealed)2-psi | |
| at 68 °F | at 68 – 212°F | at 68 – 1832°F | 68-932°F | at 32 – 212°F | in tension (E) |
| 0.288 | 9.2 | 11.4 | 14.7 | 0.12 | 28 x 106 |

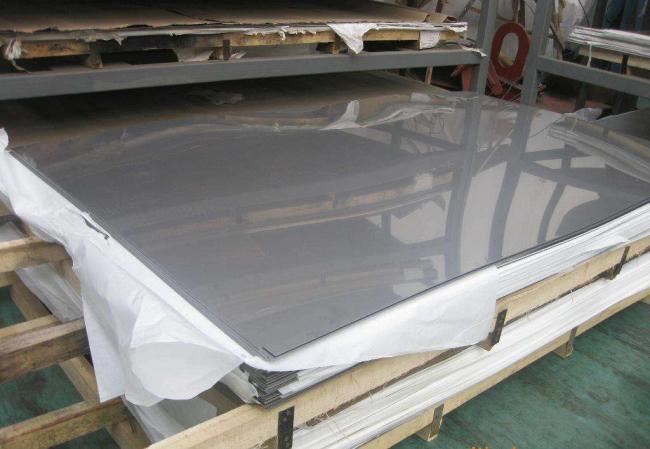

Product and Factory ShowStainless steel sheet Application
| Finish | Thickness | Characteristics | Applications |
| No. 2B | 0.3mm~6.0mm | Finished by heat treatment, pickling after cold rolling, followed by skin pass line to be more brighter and smooth surface | General Application Medical Instruments,Tableware |
| No. BA (Bright Annealed) | 0.5mm~2.0mm | Bright heat treatment after cold rolling | Kitchen utensil, kitchen ware,architectural purpose |
| No. 4 | 0.4mm~3.0mm | Polishing with No. 150 to No.180 mesh abrasivesThe most popular finishes | Milk & Food processing acilities, Hospital Equipment, Bath-tub |
| HL(Hair Line) | 0.4mm~3.0mm | Finished by continuous linear polishing | Architectural purposes, escalators, kitchen ware vehicles |
Product details

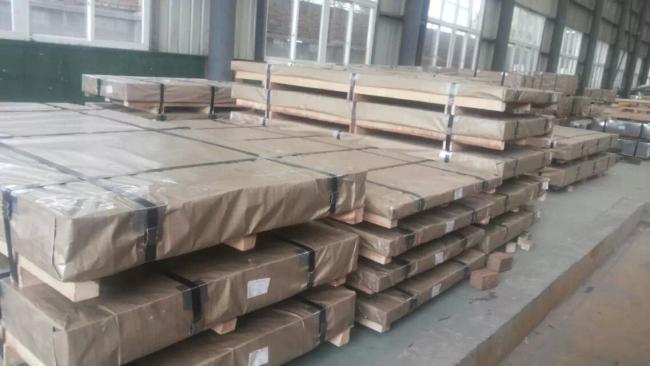

Packing&shipping
FAQ:
Q1:How many coutries you already exported ?
A1:Exported to more than 30 countries mainly from America, Russia, UK, Kuwait, Egypt, Iran, Turkey, Jordan, etc.
Q2:How can I get some samples?
A2:Small samples in store and can provide the samples for free. Catalgue is available, most patterns we have ready samples in stock. Customized samples will take about 5-7days.
Q3:What is the MOQ?
A3:Stainless steel coils 1 ton, pattern sheets 50pcs.
Q4:What is the delivery ?
A4:Sample order’s delivery time is 5- 7 days. Container orders are about 15-25 days.
Q5:How does your company do regarding quality control?
A5:BV and SGS certificates, production process followed the ISO 9000 system.
Q6:How To Protect The Sheets?
A6:Two white and black PE layers to cover the surface, each layer is 70 micro (Total 140 micro), laser PVC is also workable.( Novacel or poli-film brand )
Q7:What is the application about your Products?
A7: 1.elevator door/cabin or and escalator’s side-wall.
2.Wall cladding inside or outside meeting room/ restaurant.
3.Facade when cladding over something, like columns in the lobby.
4.Ceiling in the supermarket.
5.Decorative draws in some entertainment places.
Q8: Can You Guarantee for This Product?
A8:Original materials quality certificate can be provided.
