High Yield High Strength 10mm steel plate Q390 Q420 Q460 Q500 Q550 Q620 Q690
High Yield High Strength 10mm steel plate Q390 Q420 Q460 Q500 Q550 Q620 Q690
1.short delivery time
2.flexible payment term
3.prime quality
4.competitive price
1.Information Descriptions
| Item |
Steel Sheet,Sheet Steel, Q690 Steel Sheet,Steel Sheet Q690, Steel Plate Q690,Q690 Steel Plate |
| Standard | ASTM,AISI,EN,DIN,BS,JIS,SUS,etc |
| Material | Q390B,Q420C,Q460C,Q550D,Q620D,Q690D,etc |
| Thickness | 0.20mm-200mm |
| Width | 2m,2.2m,2.5m,or as customer required |
| Length | 8m,10m,12m,or as customer required |
| Packing |
Standard Export Seaworthy Package. Suit for all kinds of transport,or as required |
| Price Term | EXW,FOB,CIF,CFR,etc |
| Payment Term | L/C,T/T,D/P,etc |
| Delivery Time | According to the quantity you ordered,or Upon negotiation. |
| Container Size |
20FT GP:5898mm(Length)x2352mm(Width)x2393mm(High) 40FT GP:12032mm(Length)x2352mm(Width)x2393mm(High) 40FT HC:12032mm(Length)x2352mm(Width)x2698mm(High) |
| Application |
Steel plate are widely used in shipping building, engineer construction,mechanical manufacturing, the size of alloy steel sheet can be made according to customer required |
2.Mechanical Property
|
Steel Grade |
Grade | Y.S.(MPa)ór0.2≥ | T.S. ób/MPa | EL | IMPACTAkV/J | 180°BEND | |||
| thickness/mm | δ5(%) | 0℃ | -20℃ | -40℃ | |||||
| ≤50 | >50~100 | ≥ | |||||||
| Q420 | CDE | 420 | 400 | 520~670 | 18 | 40 | 40 | 27 | d=3a |
| Q460 | CDE | 460 | 440 | 550~7l0 | 17 | 40 | 40 | 27 | d=3a |
| Q500 | DE | 500 | 480 | 6l0~770 | 16 | 40 | 27 | d=3a | |
| Q550 | DE | 550 | 530 | 670~830 | 16 | 40 | 27 | d=3a | |
| Q620 | DE | 620 | 600 | 720~890 | 15 | 40 | 27 | d=3a | |
| Q690 | DE | 690 | 670 | 770~940 | 14 | 40 | 27 |
d=3a |
|
3.Chemical Composition
| Grade | C | Mn | Si | P | S | V | Nb | Ti | AL | Cr | Ni |
| ≤ | ≤ | ≤ | ≤ | ≤ | ≤ | ≥ | ≤ | ≤ | |||
| C | 0.2 | 1.0-1.7 | 0.55 | 0.035 | 0.035 | 0.20 | 0.015-0.16 | 0.02 | 0.015 | 0.70 | 0.70 |
| D | 0.2 | 1.0-1.7 | 0.55 | 0.030 | 0.030 | 0.20 | 0.015-0.16 | 0.02 | 0.015 | 0.70 | 0.70 |
| E | 0.2 | 1.0-1.7 | 0.55 | 0.025 | 0.025 | 0.20 | 0.015-0.16 | 0.02 | 0.015 | 0.70 | 0.70 |

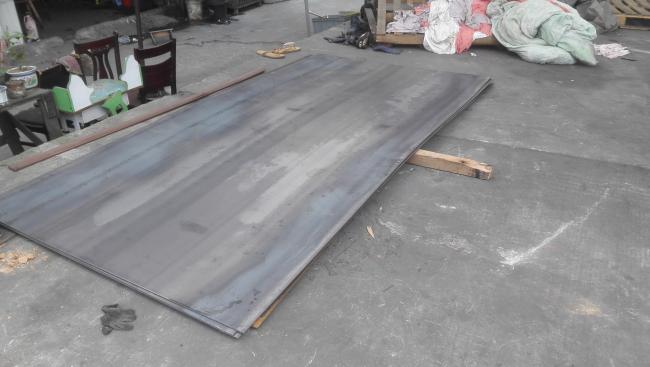

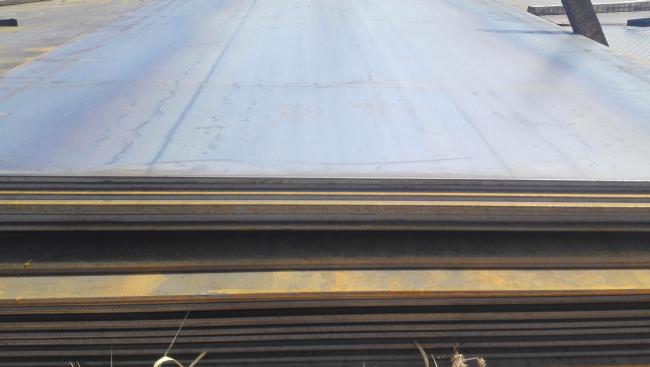

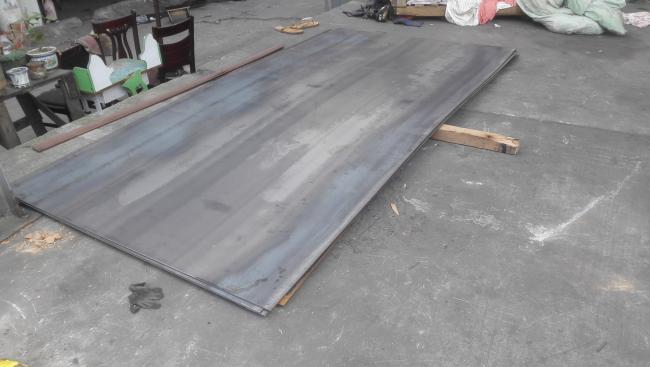

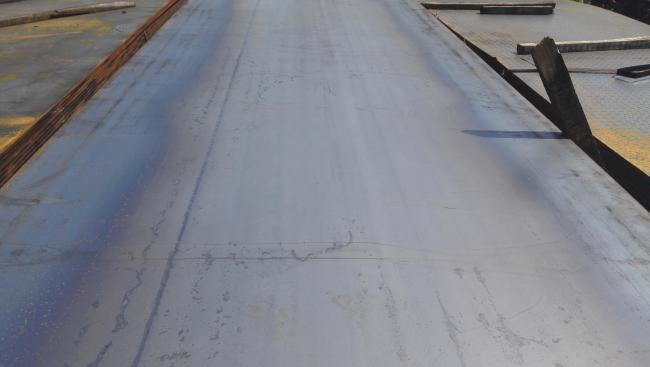

4.Photo Exhibition
