UNS S31254(254SMO) Stainless Steel Seamless Tube DIN 1.4547 00Cr20Ni18Mo6CuN Hollow Pipe Tube
UNS S31254(254SMO) Stainless Steel TubeDIN 1.4547 00Cr20Ni18Mo6CuN Hollow Tube
|
Product
|
Stainless Steel Pipe and Tube
|
|
Outside Diameter
|
1-1500mm
|
|
Thickness
|
0.1-150mm/SCH5-SCH160-SCHXXS
|
|
Production Process
|
Cold Drawn,Cold Rolled,Bright Anneal etc
|
|
Application
|
1).Heat exahanger tube for petrochemical,chemical and ocean development
2).Industrial furnace and heater tubes 3).for gas turbine and prochemical processing4).Condenser tubes,sulfuric and phosphoric acids tubes,API tubing
5).Construction and ornament 6).Acid production,waste incineration,FGD,paper processing industrial e |
|
Price Item
|
EXW,FOB,CNF,CIF etc
|
|
Surface
|
Pickling,Bright etc
|
|
Type
|
Seamless,welded
|
|
Material
|
200 series: 201,202,202Cu,204Cu,
300 series: 301,303/Cu,304/L/H,304Cu,305,309/S,310/S,316/L/H/Ti,321/H,347/H,330, 400 series: 409/L,410,416/F,420/F,430,431,440C,441,444,446, 600 series: 13-8ph,15-5ph,17-4ph,17-7ph(630,631),660A/B/C/D, Duplex: 2205(UNS S31803/S32205),2507(UNS S32750),UNS S32760,2304,LDX2101.LDX2404,LDX4404,904L Alloy : Alloy 20/28/31; Hastelloy: Hastelloy B / B-2/B-3/C22/C-4/S/ C276/C-2000/G-35/G-30/X/N; Haynes: Haynes 230/556/188; Inconel: Inconel 100/600/601/602CA/617/625713/718738/X-750,Carpenter 20; Incoloy: Incoloy 800/800H/800HT/825/925/926; GH: GH2132,GH3030,GH3039,GH3128,GH4180,GH3044 Monel: Monel 400/K500 Nitronic: Nitronic 40/50/60; Nimonic: Nimonic 75/80A/90 ; Others: 153Ma,254SMo,253Ma,654SMo,F15,Invar36,1J22,N4,N6 etc 1.4057,1.4313,1.4362,1.4372,1.4378,1.4418,1.4482,1.4597,1.4615,1.4662,1.4669, 1.4913,1.4923 etc |
Alloy 254 SMO - 254 Smo Material Equivalent
** Nearest equivalent grade.
Product standards
- Seamless tube and pipe: ASTM A269, A213, A312, NFA 49-217, EN 10216-5
- Welded tube and pipe: ASTM A249, A269 , A312, A358, A409
- Fittings: ASTM A182
- Bar: ASTM A276, A479, EN 10088-3
- Forged products: ASTM A473
1.4547 (UNS S31254 – 254 SMO® – SS2378)
By using 1.4547 (UNS S31254 – 254 SMO® – SS2378) you get a high alloyed, stainless steel with outstanding corrosion resistance. The steel is developed for use in halide-containing environment such as seawater. Some common applications are off shore, marine environment and within chemical industry.
1.4547 (also called UNS S31254, 254 SMO® and SS2378) is a high alloyed austenitic stainless steel with exceptionell corrosion resistance. The steel is developed for use in halide-containing environment such as seawater, hydrochloric acid and contaminated sulphuric acid. 1.4547 has a superior resistance to uniform corrosion compared with common stainless steel, especially in acids containing halides. It has a high content of alloy materials which gives the steel exceptionally good resistance to pitting and crevice corrosion. The steel also have very good resistance to stress corrosion cracking.
Typical application areas for 1.4547:
- Off shore
- Marine environment
- Chemical industry
- Pharmaceutical industry
- Food industry
Good formability and weldability
1.4547 has a good weldability and the methods used for welding conventional austenitic steels are used. It is somewhat more sensitive to hot cracking and shall be welded with low heat input.
Filler metal of type Avesta Welding P12 or P16 are recommended. These filler metals will give a weld with a resistance to pitting corrosion. The steel can be both cold and hot formed. Due to a higher strength and alloy materials the steel is difficult to machine.
We offer steel grade 1.4547 in the following profiles
Steel grade 1.4547 is a available as machined round bar in dimensions 10 – 320 mm..
If there is something you miss or wonder about you can always contact us to discuss your needs.

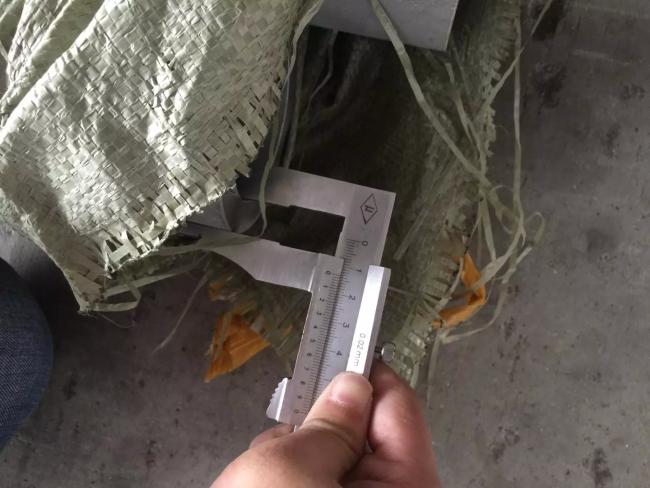

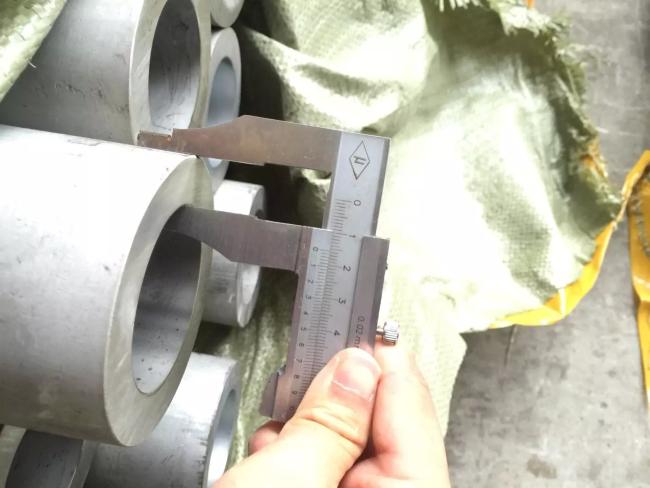

Products Show

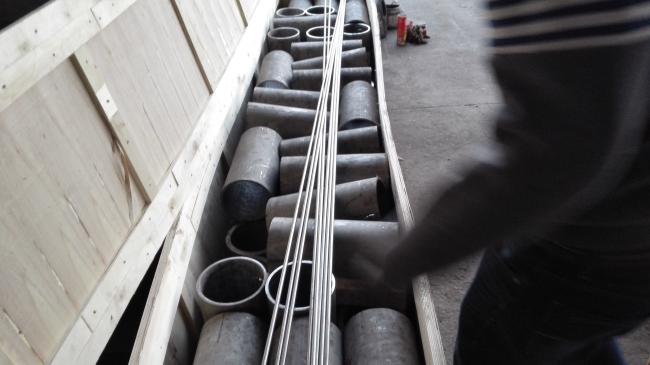

Packing & Delivery
Packing: 1.wooden box
2.bundle package
Delivery time: 15-25 days,depend on the actual quantity and stock situation.
we promise best quality,competitive price and professional service.
1.Free sample is available.
2.Mill Test Certificate is supplied with shipment.
3.The third party inspection is accepted.
