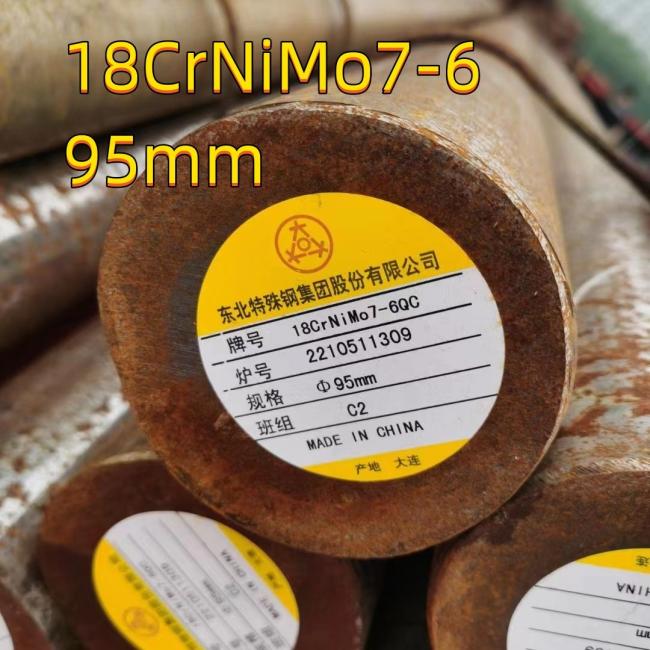

Hot Rolled Alloy Steel Round Bar DIN 1.6587 17CrNiMo6 18CrNiMo7-6 Steel OD 95mm
17CrNiMo6 Steel Round Bar Hot Rolled Alloy Bar 17Cr2Ni2MoA 17Crnimo6 Steel Equivalent
| Grade : | 18CrNiMo7-6 | |
| Number: | 1.6587 | |
| Classification: | Alloy special steel | |
| Standard: |
|
|
| Equivalent grades: | Go here |
Chemical composition % of steel 18CrNiMo7-6 (1.6587): EN 10084-2008
| Elements not quoted in this table shall not be intentionally added to the steel without the agreement of the purchaser, other than for the purpose of finishing the heat. Steels with improved machinability as a result of the addition of lead or higher sulfur contents, depending on the manufacturing process up to around 0.1 % S, may be supplied on request. In this case, the upper limit of the manganese content may be increased by 0.15 % |
| C | Si | Mn | Ni | P | S | Cr | Mo |
| 0.15 - 0.21 | max 0.4 | 0.5 - 0.9 | 1.4 - 1.7 | max 0.025 | max 0.035 | 1.5 - 1.8 | 0.25 - 0.35 |
Mechanical properties of steel 18CrNiMo7-6 (1.6587)
| Nominal thickness (mm): | to 16 |
| Rm - Tensile strength (MPa) hardening and tempering at 200 | 1200 |
| Brinell hardness (HBW): (+S) | 255 |
| Brinell hardness (HBW): (+A) | 229 |
| Brinell hardness (HBW): (+TH) | 179 - 229 |
| Brinell hardness (HBW): (+FP) | 159 - 207 |
Equivalent grades of steel 18CrNiMo7-6 (1.6587)
Warning! Only for reference
| EU EN |
Germany DIN,WNr |
France AFNOR |
England BS |
Italy UNI |
China GB |
Finland SFS |
Inter ISO |
||||||||
| 18CrNiMo7-6 |
|
|
|
|
|
|
|
NEW opportunities for buyers!
Post free buying requirement of steel 18CrNiMo7-6 (1.6587)
Mechanical properties
| ReH | Minimum yield strength / Mindestwert der oberen Streckgrenze / Limite d elasticite minimale |
| Rm | Tensile strength / Zugfestigkeit / Resistance a la traction |
| A | Minimum elongation / Mindestwert der Bruchdehnung / Allongement minimal |
| J | Notch impact test / Kerbschlagbiegeversuch / Essai de flexion par choc |
Heat treatment conditions
|
|
|
Alloy special steel |
