UNS NO 4400 Monel 400 Hot Rolled Round Bar 10.0mm ~ 350mm Diameter
* Product Description *
10.0mm~350mm Diameter High Quality UNS NO 4400 Monel 400 Round Bar
MONEL® alloy 400
A nickel-copper alloy with high strength and excellent corrosion resistance in a range of media including sea water, hydrofluoric acid, sulfuric acid, and alkalies. Used for marine engineering, chemical and hydrocarbon processing equipment, valves, pumps, shafts, fittings, fasteners, and heat exchangers.
UNS: N04400 / W.Nr.: 2.4360, 2.4361
1. Limiting Chemical Composition
| Alloy | % | Ni+Co | Cu | Fe | C | Mn | S | Si |
| Monel 400 | Max. | 34.0 | 2.5 | 0.3 | 2.0 | 0.024 | 0.5 | |
| Min. | 63.00 | 28.0 |
2. Nominal Mechanical Properties
Density | Melting Range °C | Tensile Strength | Yield Strength | Elongation |
| 8.80 | 1300-1350 | 517-620Mpa | 172-345Mpa | 35-60 |
3. The nominal room-temperature tensile properties of MONEL alloy 400, rod/bar annealed, Tensile Strength: 75-90KSI/517-620MPA, Yield Strength(0.2% offset):25-50KSI / 172-345MPA, Elongation%: 60-35. MONEL alloy 400 has excellent mechanical properties at subzero temperatures. Strength and hardness increase with only slight impairment of ductility or impact resistance. The alloy does not undergo a ductile-to-brittle transition even when cooled to the temperature of liquid hydrogen. This is in marked contrast to many ferrous materials which are brittle at low temperatures despite their increased strength.

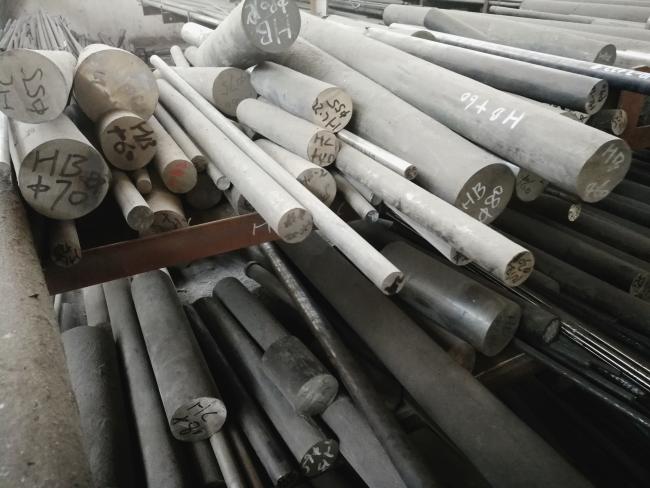

* Products Display *
Material/Grade : 304 321 316 316L 310S 309S 202 201 430 409L 444 410s 904L 2205 2507 Incoloy 800 800H 800HT 825 Inconel 600 625 718 Monel 400 Hastelloy C-276.etc
Our Service
| 1 | Free samples will be available for most of the products |
| 2 | 24 hours online to ensure your inquiry will be replied within 12 hours |
| 3 | Most products can be delivered within 7 days after order |
| 4 | Small trial order can also be accepted |
| 5 | Customized Size & Surface Treatment as your requirement |
| 6 | Quality Inspection---We can provide MTC , PMI inspection , and SGS inspection or other third Party Inspection . |
| 7 | If you are not sure about what exactly you need - feel free to contact us anytime and get professional assistance from us |
