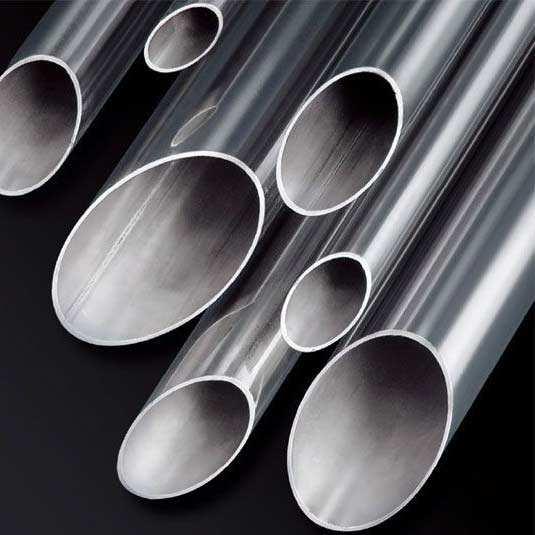

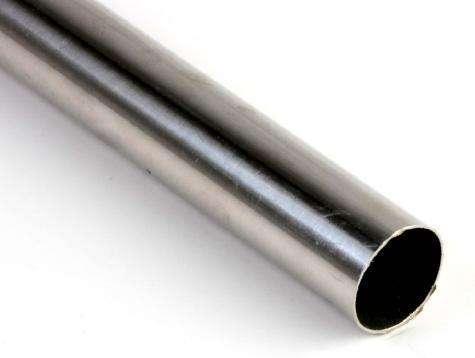

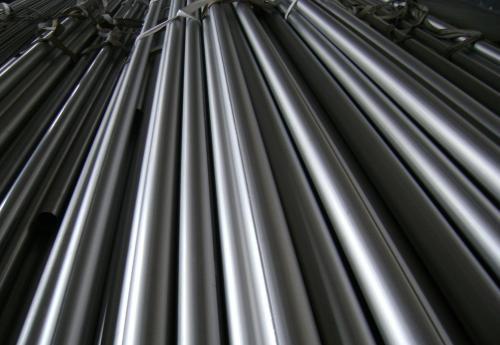

Polished Welded Stainless Steel Pipes 410 446 0.1mm - 3.0mm Thickness
Polished Welded Stainless Steel Pipes 410 446 0.1mm-3.0mm Thickness
| Product Name | Welded Stainless Steel Pipes 410 446 |
| Series | 302,303,304,304L,305,309S,316,316L,321,430,446, etc |
| Length | 1000mm-6000mm |
| Shape | round, square, rectangular, oval, shaped |
| Usage | industry pipe, Decorative tube, fluid pipe, structure pipe |
| Finish | polishing,NO.1,NO.2D,NO.2B,NO.3,NO.4,#320,hairline HLNO.4,BA,8K mirror/ No.8,annealed,satin |
Specification
| Nominal Diameter | O.D | WALL THICKNESS(MM) | ||||
| A | B | MM | SCH5S | SCH10S | SCH20S | SCH40S |
| 8 | 1/4" | 13.80 | 1.20 | 1.65 | 2.00 | 2.20 |
| 10 | 3/8" | 17.30 | 1.20 | 1.65 | 2.00 | 2.30 |
| 15 | 1/2" | 21.70 | 1.65 | 2.10 | 2.50 | 2.80 |
| 20 | 3/4" | 27.20 | 1.65 | 2.10 | 2.50 | 2.90 |
| 25 | 1" | 34.00 | 1.65 | 2.80 | 3.00 | 3.40 |
| 32 | 1 1/4" | 42.70 | 1.65 | 2.80 | 3.00 | 3.60 |
| 40 | 1 1/2" | 48.60 | 1.65 | 2.80 | 3.00 | 3.70 |
| 50 | 2" | 60.50 | 1.65 | 2.80 | 3.50 | 3.90 |
| 65 | 2 1/2" | 76.30 | 2.10 | 3.00 | 3.50 | 5.20 |
| 80 | 3" | 89.10 | 2.10 | 3.00 | 4.00 | 5.50 |
| 90 | 3 1/2" | 101.60 | 2.10 | 3.00 | 4.00 | 5.70 |
| 100 | 4" | 114.30 | 2.10 | 3.00 | 4.00 | 6.00 |
| 125 | 5" | 139.08 | 2.80 | 3.40 | 5.00 | 6.60 |
| 150 | 6" | 165.20 | 2.80 | 3.40 | 5.00 | 7.10 |
| 200 | 8" | 216.30 | 2.80 | 4.00 | 6.50 | 8.20 |
| 250 | 10" | 267.40 | 3.40 | 4.00 | 6.50 | 9.30 |
| 300 | 12" | 318.50 | 4.00 | 4.50 | 6.50 | 10.30 |
| 350 | 14" | 355.60 | 11.10 | |||
| 400 | 16" | 406.40 | 12.70 | |||
Composition Sheet
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0.15 | ≤1.00 | 5.5-7.5 | ≤0.06 | ≤0.03 | 3.5-5.5 | 16.0-18.0 | — |
| 202 | ≤0.15 | ≤1.00 | 7.5-10.00 | ≤0.06 | ≤0.03 | 4.0-6.0 | 17.0-18.0 | — |
| 301 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 6.0-8.0 | 16.0-18.0 | — |
| 302 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.0-10.0 | 17.0-19.0 | — |
| 304 | ≤0.07 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.0-10.0 | 18.0-20.0 | — |
| 304L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 9.0-13.0 | 18.0-20.0 | — |
| 310S | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 19.0-22.0 | 24.0-26.0 | — |
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
| 316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 12.0-15.0 | 16.0-18.0 | 2.0-3.0 |
| 321 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 9.0-13.0 | 17.0-19.0 | — |
| 430 | ≤0.12 | ≤0.75 | ≤1.00 | ≤0.04 | ≤0.03 | ≤0.60 | 16.0-18.0 | — |
| 430A | ≤0.06 | ≤0.50 | ≤0.50 | ≤0.03 | ≤0.50 | ≤0.25 | 14.0-17.0 | — |
Pre-sale service:
1.Providing sample
2.According to your size processing
3.Respond promptly
After-sales service :
1.After placing orders will be timely feedback to track the progress of related production, shipment
2.Accordance with the stipulated time of shipment delivery, guaranteed delivery and supply capacity.
3.Encounter any quality problems can always contact us, we will promptly communicate timely
Pipe sizes in regular stock:
Round Stainless Steel Pipe:
16, 17, 18, 19, 20, 21, 22, 23, 25, 28, 31.8, 35, 36, 38.1, 48, 50.8, 60, 63.5, 76.2, 89, 101, 114 mm
Square Stainless Steel Pipe:
17, 18, 19, 20, 21, 22, 23, 24, 25, 28, 30, 36, 38, 50 mm
Rectangle Stainless Steel Pipe:
10*30, 10*40, 10*50, 20*10, 23*11, 24*12, 25*13, 28*25, 28*13, 29*14, 30*15, 30*20, 30*22, 34*22, 36*23, 50*25, 60*30, 75*45, 95*45 mm
Thickness:
exact 0.25, 0.28, 0.32, 0.37, 0.41, 0.51, 0.61, 0.71, 0.91, 1.11, 1.15, 1.41 mm
