201 Mirror Stainless Steel Sheet Black Mirror Inox Sheet Slit Edge For Wall / Corner Guards
201 Mirror With Common Pvc Coating, Gold Mirror ,Black Mirror Inox Sheet Slit Edge For Wall And Corner Guards
| Product Details | |
| Product name | Stainless steel plate |
| Brand name | MITTEL |
| Standard | ASTM A240, ASTM A480, EN10088, JIS G4305 |
| Material | 201 202 304, 316L, 321, 310S, 1.4301, 1.4307, 1.4404, S31803, S32750, 904L, Monel 400, Inconel 800 |
| Surface | NO.1,2B,NO.4,BA,SB,Satin,Brushed,Hairline,Mirror |
| Certificate | BV, LR, GL, NK, RMRS |
| Packing | In wooden cases,in wooden pallets |
| Shipment | By sea, by air, by express |
Stainless steel sheet surface finish characteristics
| Surface finish | Characteristics and application |
| 2B | The surface brightness and flatness of no2B is better than no2D. then through a special surface treatment to improve its mechanical properties,No2B could nearly satisfy comprehensive uses. |
| No.1 | Polished with abrasive belt of grit#100-#200, have better brightness with discontinuous coarse stria, used as inner and external ornaments for building, electrical appliances and kitchen utensils etc. |
| No.4 | Polished with abrasive belt of grit #150-#180,have better brightness with discontinuous coarse stria, but thinner than No3, are used as bathtub buildings inner and external ornaments electrical appliances kitchen utensils and food processing equipment etc. |
| HL | Polished with abrasive belt of grit #150-#320 on the NO.4 finish and has continuous streaks, mainly used as buildings ornaments elevators, door of building, frontal plate etc. |
| BA | Cold rolled, bright annealed and skin-passed, the product have excellent brightness and good reflexivity like mirror, kitchen apparatus, ornament etc. |
| 8K | The product have excellent brightness and prefer reflexivity can to be the mirror. |
| Specifications |
| Chemical Composition(%) | |||||||||||
| Grade | C | Si | Mn | P | S | Cr | Ni | Mo | N | Cu | |
| 201 | ≤0.15 | ≤0.75 | 5.5~7.5 | ≤0.060 | ≤0.03 | 16.00~18.00 | 3.5~5.5 | - | - | 0.08 | 1.5 |
| 202 | ≤0.15 | ≤1.00 | 7.5~10.00 | ≤0.060 | ≤0.03 | 17.00~19.00 | 4.0~6.0 | - | ≤0.25 | ||
| 301 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 16.00~18.00 | 6.00~8.00 | - | |||
| 302 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.03 | 17.00~19.00 | 8.00~10.00 | - | |||
| 304 | ≤0.07 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 18.00~20.00 | 8.00~10.50 | - | |||
| 304L | ≤0.030 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 18.00~20.00 | 9.00~13.00 | - | |||
| 310S | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 24.00~26.00 | 19.00~22.00 | - | |||
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 16.00~18.00 | 10.00~14.00 | 2.00~3.00 | |||
| 316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 16.00~18.00 | 12.00~15.00 | 2.00~3.00 | |||
| 321 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 17.00~19.00 | 9.00~13.00 | - | |||
| 430 | ≤0.12 | ≤0.75 | ≤1.00 | ≤0.040 | ≤0.03 | 16.00~18.00 | - | ||||
| 2205 | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.030 | ≤0.015 | 22.00~23.00 | 4.5~6.5 | 2.5~3.5 | |||
| 2507 | ≤0.03 | ≤0.08 | ≤1.20 | ≤0.035 | ≤0.015 | 24.00~26.00 | 6.00~8.00 | 3.0~5.0 | |||
| 904L | ≤0.02 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.035 | 19.00~23.00 | 23.00~28.00 | 4.0~5.0 | 1.0~2.0 | ||
|
INCONEL 028 |
≤0.03 | ≤1.00 | ≤2.50 | ≤0.030 | ≤0.030 | ≤28.0 | ≤34.0 | ≤4.0 | ≤1.4 | ||
|
MONEL 400 |
≤0.30 | ≤0.5 | ≤2.00 | - | ≤0.024 | - | ≥63.0 | - | ≤34.0 | ||
|
INCONEL 800 |
≤0.10 | ≤1.00 | ≤1.50 | - | ≤0.015 | ≤23.0 | ≤35 | 4.0~5.0 | - | ≤0.75 |
Ti≤0.6 Al≤0.6 |
1. HS CODE: 7219339000,7219320000,7219220000,7219110000
2. Trade term: FOB,CNF,CIF
3. Payment term: 30% by T/T as down payment balance against B/L copy or 100% LC at sight.
4. Delivery time: Within 3-15 working days after received deposit or LC draft.
5. A copy of mill test certificate will be provided with shipment.

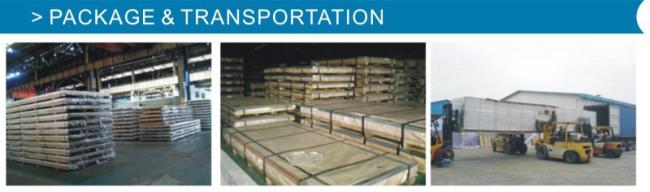

Standard export package: In wooden cases,in wooden pallets or as customer’s request.
The inner size of container:
20ft container: 5.8m(Length)*2.13m(Width)*2.18m(High) 23-26CBM
40ft container: 11.8m(Length)*2.13m(Width)*2.72m(High) 68CBM
We will make the products with good surface protected,our packages are totally according to international exporting standard.
Why choose us?
19 Years specialized in processing,sales and technical services of high quality stainless steel plates and coils.
Our company located in wuxi City Center of stainless steel plates and coils to our customers all over the world.
One of the biggest agent of Baosteel,TISCO in the South of China.
6 processing platform such as "Shearing,cutting,surface finish,forming,welding and machine platforms".
