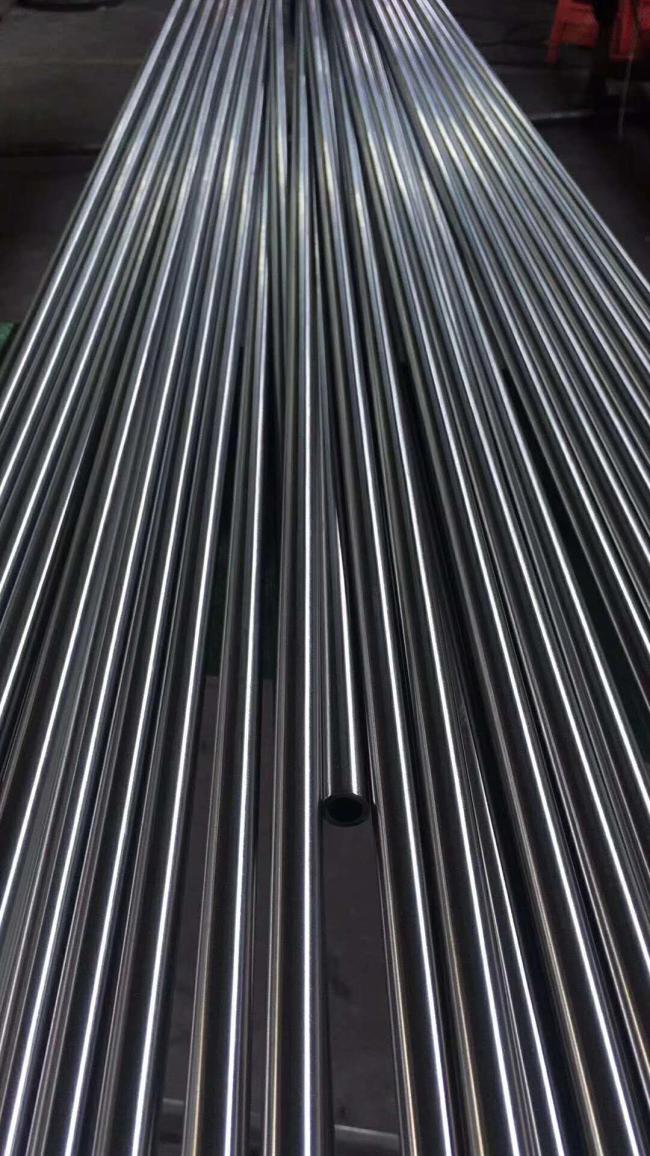

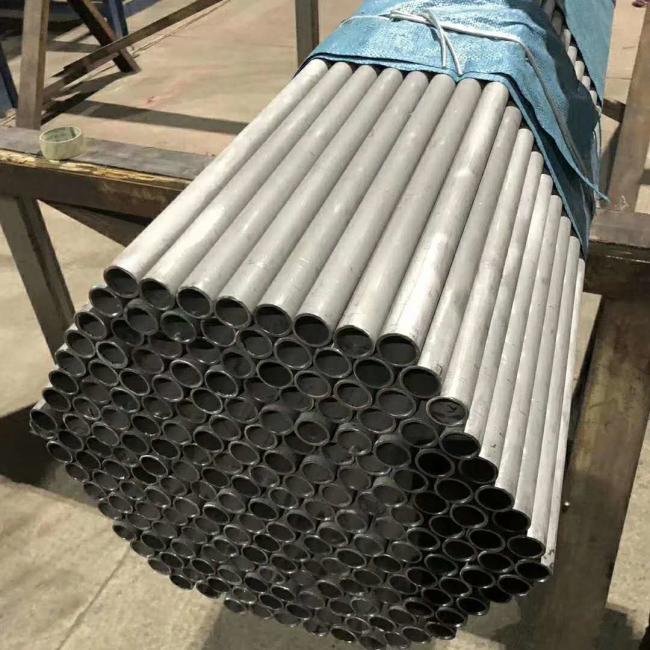

-28 UNS N08028 Seamless Stainless Steel Tube ASTM B668 SGS ISO
-28 UNS N08028 Seamless Stainless Steel Tube ASTM B668 SGS ISO
Type: UNS N08825 Seamless Pipe
Material: Incoloy Alloy 028 (UNS N08028/W. Nr. 1.4563/28), etc
Standard: ASME, ASTM, etc.
Size:
A) O. D.: 6 – 710mm
B) Thickness: 0.8mm – 50mm
Length: Max. 17 meters (specific or random)
Delivery conditions: Annealed, pickled & polished
Chemical Composition of UNS N08028 Incoloy Alloy 028 Flange
| Element | Content (%) |
|---|---|
| Iron, Fe | 29-40.4 |
| Nickel, Ni | 30-34 |
| Chromium, Cr | 26-28 |
| Molybdenum, Mo | 3-4 |
| Manganese, Mn | ≤2.5 |
| Others | Remainder |
| Properties | Metric | Imperial |
|---|---|---|
| Density | 8 gm/cm3 | 0.289 lb/in3 |
| Mechanical Properties of UNS N08028 | Metric | Imperial |
|---|---|---|
| Tensile strength(annealed) | 500 MPa | 72.5 ksi |
| Yield strength(annealed) | 214 MPa | 31 ksi |
| Elongation at Break(Cold worked) | 15% | 50% |
| Modulus of Elasticity | 200 GPa | 29000 ksi |
| Hardness, Rockwell B | 80-90 | 80-90 |
| Hardness, Rockwell C | 33 | 33 |
Description:
(UNS N08028/W. Nr. 1.4563) is a highly alloyed austenitic stainless steel offering resistance to a variety of corrosive media. By virtue of its contents of chromium and molybdenum, the alloy offers resistance to both oxidizing and reducing acids and salts. The presence of copper increases its resistance to sulfuric acid.
The alloy is used in the chemical and petrochemical processing industry. Alloy tubes are cold worked to high strength levels for downhole service in moderately corrosive deep sour gas
UNS N08028
| C | Si | Mn | P | S | Cr | Ni | Mo | Cu | Fe | |
|---|---|---|---|---|---|---|---|---|---|---|
| Min | • | • | • | • | • | 26.00 | 30.00 | 3.00 | 0.06 | 0.00 |
| Max | 0.03 | 1.00 | 2.50 | 0.030 | 0.030 | 28.00 | 34.00 | 4.00 | 1.40 | 0.00 |
Mechanical properties
Condition: UNS N08028 Annealed
| .T.S | 73 KSI Min |
|---|---|
| 0.2% Proof Stress | 31 KSI Min |
| Elongation | 40 % |
Condition: UNS N08028 Cold Worked
| U.T.S | 120 KSI Min |
|---|---|
| 0.2% Proof Stress | 90 KSI Min |
| Elongation | 5 % |
Specifications:
| Standards | Desciption |
|---|---|
| ASTM B668 | Standard Specification for UNS N 08028 Seamless Pipe and Tube |
| ASTM B709 | Standard Specification for Iron-Nickel-Chromium-Molybdenum Alloy (UNS N08028) Plate,Sheet and Strip |
| EN10216-5 | Seamless steel pipes under compression load Pipes made from stainless steel |
| EN 10088-1 | Stainless steels Part 1: List of stainless steels |
| EN 10088-3 | stainless steels.Technical delivery conditions for semi-finished products,bars,rods,wire selection and bright products of corrosion resisting steels for general and construction purposes |
| EN 10217-5 | Welded steel pipes under compression load Pipes made from stainless steel |
| EN 10297-2 | Welded circular steel pipes for machine construction and general technical service stainless steel. Pipes made from stainless steel |
| SEW 310 (08/1992) | physical properties of steel |
| SEW 400 (1997-02) | Rolled and forged stainless steel |
1.4563 Range of products
| Product type | Products | Dimension | Processes | Deliver Status |
|---|---|---|---|---|
| Plates / Sheets | Plates / Sheets | 0.08-200mm(T)*W*L | Forging, hot rolling and cold rolling | Annealed, Solution and Aging, Q+T, ACID-WASHED, Shot Blasting |
| Steel Bar | Round Bar, Flat Bar, Square Bar | Φ8-1200mm*L | Forging, hot rolling and cold rolling, Cast | Black, Rough Turning, Shot Blasting, |
| Coil / Strip | Steel Coil /Steel Strip | 0.03-16.0x1200mm | Cold-Rolled & Hot-Rolled | Annealed, Solution and Aging, Q+T, ACID-WASHED, Shot Blasting |
| Pipes / Tubes | Seamless Pipes/Tubes, Welded Pipes/Tubes | OD:6-219mm x WT:0.5-20.0mm | Hot extrusion, Cold Drawn, Welded | Annealed, Solution and Aging, Q+T, ACID-WASHED |
