ASTM A790 S32750/2507 Stainless Steel Tube Duplex Stainless Steel S32750 Tube
Annealing Super Duplex Steel 2507 tubing Seamless For Heat Exchanger
| UNS Designation | C | Si | Mn | P | S | Cr | Ni | Mo | N | Cu |
| max | max | max | max | max | ||||||
| S31803 | 0.03 | 1 | 2 | 0.03 | 0.02 | 21.0 - 23.0 | 4.5 - 6.5 | 2.5 - 3.5 | 0.08 - 0.20 | - |
| S32205 | 0.03 | 1 | 2 | 0.03 | 0.02 | 22.0 - 23.0 | 4.5 - 6.5 | 3.0 - 3.5 | 0.14 - 0.20 | - |
| S32750 | 0.03 | 0.8 | 1.2 | 0.035 | 0.02 | 24.0 - 26.0 | 6.0 - 8.0 | 3.0 - 5.0 | 0.24 - 0.32 | 0.5 max |
| S32760 | 0.05 | 1 | 1 | 0.03 | 0.01 | 24.0 - 26.0 | 6.0 - 8.0 | 3.0 - 4.0 | 0.20 - 0.30 | 0.50 -1.00 |
| Physical Properties | |||||||||
| Grade | Y.S.MPa min | T.S.Mpa min | Elongation % | Hardness HRC | / | ||||
| UNS S32750 | 550 | 800 | 15 | 20 | / | ||||
| UNS S31803 | 450 | 620 | 25 | 20 | / | ||||
Super duplex stainless such as duplex is a mixed microstructure of austenite and ferrite which has improved strength over ferritic and austenitic steel grades . The main difference is super duplex has a higher molybdenum and chromium content which gives the material greater corrosion resistance . Super duplex has the same benefits as its counterpart - it has lower production costs when compared with similar ferritic and austenitic grades and due to the materials increased tensile and yield strength , in many cases this gives the purchaser the welcomed option of purchasing smaller thicknesses without the need to compromise on quality and performance .
In the near future, duplex steel will be more popular than basic stainless steel material products.
ASTM A789 2205 / 2507 Duplex Steel Tube With Bright Annealed Surface
| Item | Description | |
| Basic Information | Material Grade | S32205 , S31803 , S32304 , S32750 , F51 , F53 , 2205 , 2507 etc |
| Outer Diameter | 3.18mm - 101.6mm | |
| Wall Thickness | 0.5mm - 20mm | |
| Length | Normally fixed length 6m , can as per customer’s requirement | |
| Standard | ASTM A789 ; ASTM A790 ; EN 10216-5 ect . | |
| Process Method |
Cold Drawn or Cold Rolled |
|
Super duplex stainless such as duplex is a mixed microstructure of austenite and ferrite which has improved strength over ferritic and austenitic steel grades . The main difference is super duplex has a higher molybdenum and chromium content which gives the material greater corrosion resistance . Super duplex has the same benefits as its counterpart - it has lower production costs when compared with similar ferritic and austenitic grades and due to the materials increased tensile and yield strength , in many cases this gives the purchaser the welcomed option of purchasing smaller thicknesses without the need to compromise on quality and performance .
Terms & Conditions :
1 . Price Term : FOB , CFR , CIF or as negotiation
2 . Payment : T / T , L / C or as negotiation
3 . Delivery time : 30 working days after received your deposit ( Normally according to the order quantity )

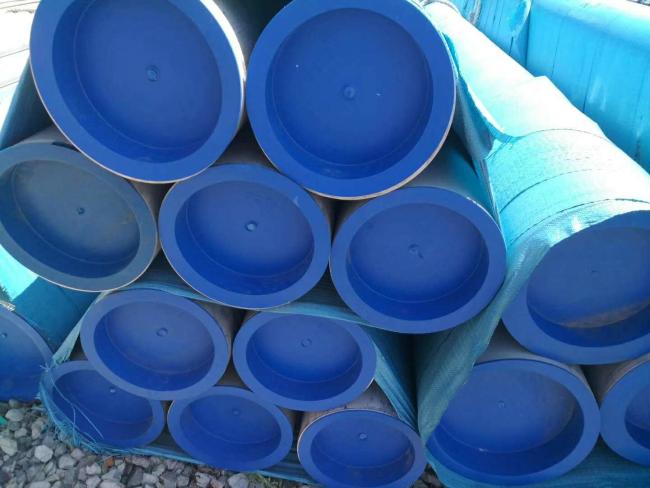

4 . Package : Iron case ; woven bag or as per customer’s requirement
5 . Quality Requirement : Mill Test Certificate will be supplied with shipment , Third Part Inspection is acceptable
| ASTM A789 / A789M | ||||
| UNS Designation | T.S. Min , Ksi [Mpa] | Y.S. Min , Ksi [Mpa] | Elongation Min % | Hardness, Max |
| S31803 | 90 [620] | 65 [450] | 25 | 30.5 |
| S32205 | 95 [655] | 70 [485] | 25 | 30.5 |
| S32750 | 116 [800] | 80 [550] | 15 | 32 |
| S32760 | 109 [750] | 80 [550] | 25 | … |
