Cold Rolled 304 Stainless Steel Sheet 2B BA Finished 2.0*2000*6000mm DIN1.4301 Inox Metal Sheet
Cold Rolled 304 Stainless Steel Sheet 2B BA Finished DIN1.4301 Inox Metal Sheet
1) Products Discription
| product name | Factory ASTM JIS SUS 201 202 301 304 304l 316 316l 310 410 430 Stainless Steel Sheet/Plate/Coil/Roll 0.1mm~50mm |
| standard | ASTM,AISI,SUS,JIS,EN,DIN,GB, ASME,etc |
| material | 201, 304,304L,316L,310S,309S,321,310S,347H, 410,420,430,904, 2205. S31803 etc |
| surface | 2B, 2D, No.1, No.4, BA, HL, 6K, 8K ,etc |
| application | Construction field, ship building, chemical industry, food processing,etc |
2)What is stainless steel
Stainless steel is an alloy of Iron with a minimum of 10.5% Chromium. Chromium produces a thin layer of oxide on the surface of the steel known as the 'passive layer'. This prevents any further corrosion of the surface. Increasing the amount of Chromium gives an increased resistance to corrosion.
Stainless steel also contains varying amounts of Carbon, Silicon and Manganese. Other elements such as Nickel and Molybdenum may be added to impart other useful properties such as enhanced formability and increased corrosion resistance.
Quality assurance:We can do third party inspection before shipment
stock:
Length:1.5mm/1.8mm/2.0mm/2.5mm/2.75mm/3mm/3.75mm/4mm/4.75mm/5mm/5.75mm/
6mm/7.5mm/7.75mm/8mm/9.5mm/9.75mm/10mm/11.75mm/12mm/13.5mm
wide:1250mm/1500mm/1800mm/2000mm
4) Specification of Stainless Steel 304/304L/316/316L BA Finish Sheet
| STAINLESS STEEL | TRADENAME | UNS NO. | WERKSTOFF NO | DENSITY (G/CM3) |
|---|---|---|---|---|
| 304 | 304 Stainless | S30400 | 1.4301 | 8 |
| 304L | 304L Stainless | S30403 | 1.4307 | 8 |
| 304H | 304H Stainless | S30409 | 1.4948 | 8 |
| 316 | 316 Stainless | S31600 | 1.4401 | 8 |
| 316L | 316L Stainless | S31603 | 1.4404 | 8 |
| 316Ti | 316Ti Stainless | S31635 | 1.4571 | 8 |
5)Chemical Composition of Stainless Steel 304/304L/316/316L BA Finish Sheet
| C | MN | SI | P | S | CR | NI | FE | |
|---|---|---|---|---|---|---|---|---|
| 304 | 0.08 max. | 2.00 max. | 1.00 max | 0.045 max. | 0.03 max. | 18.0 – 20.0 | 8.0 – 10.5 | Balance |
| 304L | 0.03 max. | 2.00 max. | 1.00 max. | 0.045 max. | 0.03 max. | 18.0 – 20.0 | 8.0 – 12.0 | Balance |
| 304H | 0.04-0.10 | 2.00 max. | 1.00 max. | 0.045 max. | 0.03 max. | 18.0 – 20.0 | 8.0 – 12.0 | Balance |
6) Chemical Composition of Stainless Steel 304/304L/316/316L BA Finish Sheet
| C | MN | SI | P | S | CR | NI | MO | TI | |
|---|---|---|---|---|---|---|---|---|---|
| 316 | 0.08 max. | 2.00 max. | 1.00 max. | 0.045 max. | 0.03 max. | 16.0 – 18.0 | 10.0 – 14.0 | 2.00 – 3.00 | |
| 316L | 0.03 max. | 2.00 max. | 1.00 max. | 0.045 max. | 0.03 max. | 16.0 – 18.0 | 10.0 – 14.0 | 2.00 to 3.00 | 0.5 max. |
| 316TI | 0.08 max. | 2.00 max. | 1.00 max. | 0.045 max. | 0.03 max. | 16.0 – 18.0 | 10.0 – 14.0 | 2.00 to 3.00 | 5 x %C |
7)Physical & Mechanical Properties of Stainless Steel 304/304L/316/316L BA Finish Sheet
| 304 | 304L | 304H | 316 | 316L | 316TI | |
|---|---|---|---|---|---|---|
| Density | 8 | 8 | 8 | 8 | 8 | 8 |
| Melting Range,℃ | 1400 ℃ | 1400 ℃ | 1400 ℃ | 1400 ℃ | 1400 ℃ | 1400 ℃ |
| Elongation % | 40 | 40 | 40 | 40 – 55 | 40 – 60 | 40 – 50 |
| Tensile Strength (Mpa) | 515 | 485 | 515 | 515 | 485 | 515 |
| Yield Strength (Mpa) | 205 | 170 | 205 | 205 | 170 | 205 |
| Hardness (Brinell) | 201 | 201 | 201 | 201 | 201 | 201 |

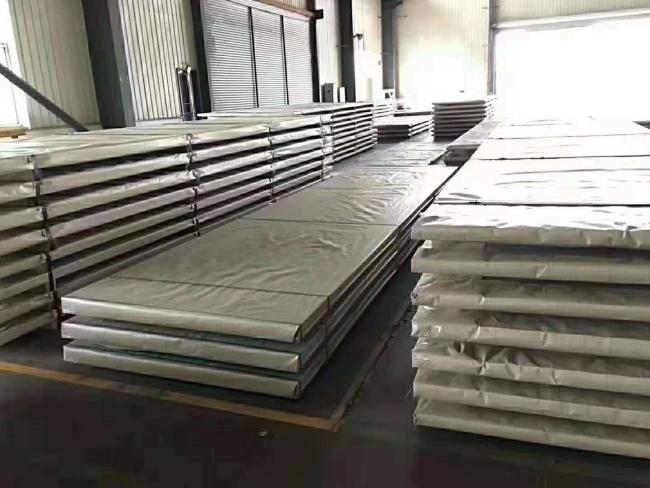

8) Photo
Company Profile
Our company supplies kinds of stainless steel strip , high quality and resonable price. We stick to the principle of quality first. Our advanced manufacturing techniques ensurea we provide the highest quality products, products, efficiently that are cost and delivered on time.
FAQ
Q: Are you Manufacturer or Trading company?
A: We are both manufacturer and trading company in Ningo city, Zhejiang Province, China.we have professional processing mill with 10 years' experience.
Q: What's your main products?
A: Our main products is including Stainless Steel Strip grade in
201,301,304,304L,316L, 430, 410L.
Q:Do you provide samples ?
A3: Yes, we could offer the sample for free charge but the cost of freight is by receiver, normally.
Why choose us?
1. With over 15 years' experience in Stainless Steel strip coil manufacturing.
2. Competitive Price and Best Services.
3. Work with many famous brands,such as Tisco,Baosteel.
4. Strong production capacity.
5. Excellent exprience of after-sale service.
How to order
Please inform us the following information
1.Grade,Surface,Thickness,Size,Tolerance,Special request
2.Amount
3.Price Term
4.Leave your contact
If you are interested in our products, please feel free to contact me any time! Welcome to hear from your inquiry!
