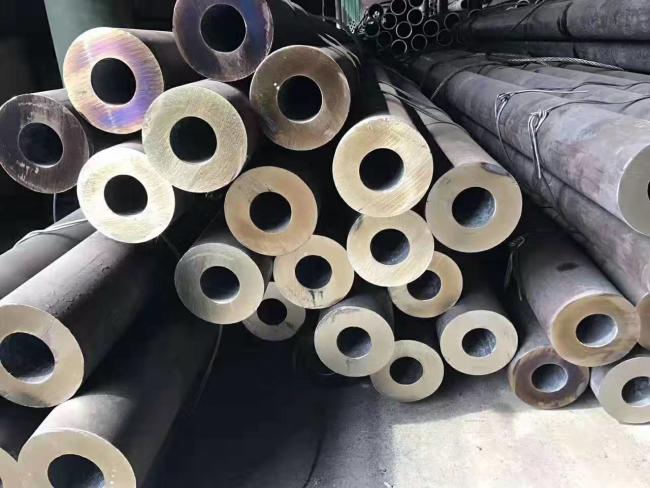

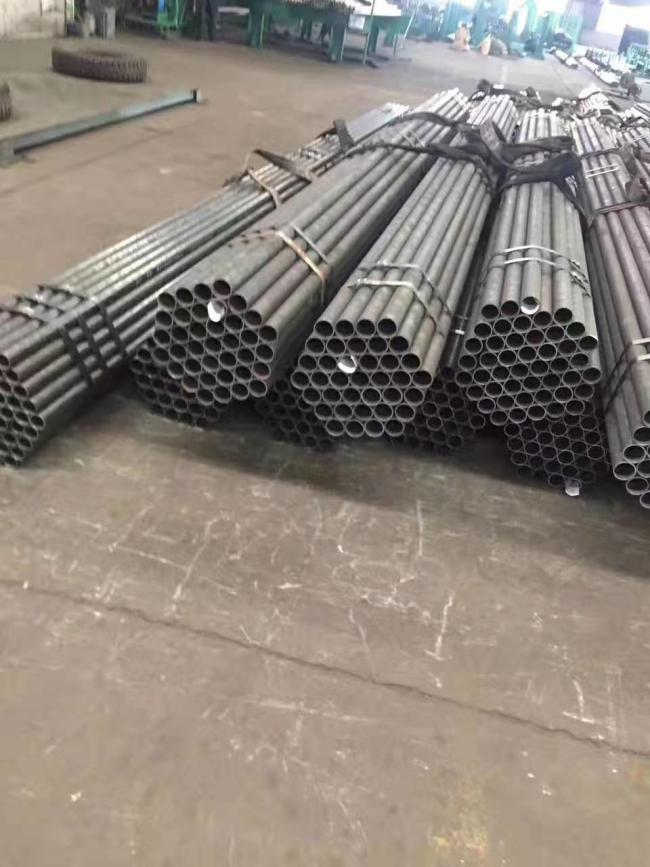

OD168.3 MM * 14mm Steel Seamless Tube DIN1.4922 X20CrMov11-1 L8000MM Alloy Steel Pipe
Price:
0.85 USD/KG
MOQ:
100KGS
Delivery Time:
14 Days
Brand:
MITTEL
Product Description
X20CrMoV11-1, is a similar grade to X22CrMoV12-1, 1.4923 with a martensitic structure in the heat-treated state. Designed for pressure and high temperature applications up to 600 ℃ for devices used mainly in the power, oil and chemical industries.
Steel is mainly supplied in the form of hot-rolled boiler pipes, fittings and sleeves. In contrast to 23H12MNF, the above-mentioned grades shows much better and more stable strength properties in the normalized and tempered +NT conditions.
Steel can be classified as one of the heat-resistant grades.
|
Grade : |
X20CrMoV11-1 | ||||
| Number: | 1.4922 | ||||
| Classification: | Alloy special martensitic creep-resisting steel | ||||
| Density: | 7.7 g/cm ³ | ||||
| Standard: |
|
||||
| Equivalent grades: |
|
Mechanical properties of X20CrMoV11-1, 1.4922 acc. to EN 10216-2 in +NT condition
- Tensile strength, Rm: 690 - 840 MPa
- The yield point, Rp0,2: >490 MPa
- Properties of samples tested longitudinally:
- Elongation, A:> 17%
- Impact resistance, KV20℃: > 20 J
- Properties of samples tested transversally:
- Elongation, A:> 14%
- Impact resistance, KV20℃: > 20 J
Chemical composition % of steel X20CrMoV11-1 (1.4922): EN 10302-2008
| According to EN 10088-1:2005: Si max =0.4; Mn min= 0.3 ; V min=0.2; |
| C | Si | Mn | Ni | P | S | Cr | Mo | V |
| 0.17 - 0.23 | max 0.5 | max 1 | 0.3 - 0.8 | max 0.025 | max 0.015 | 10 - 12.5 | 0.8 - 1.2 | 0.25 - 0.35 |
