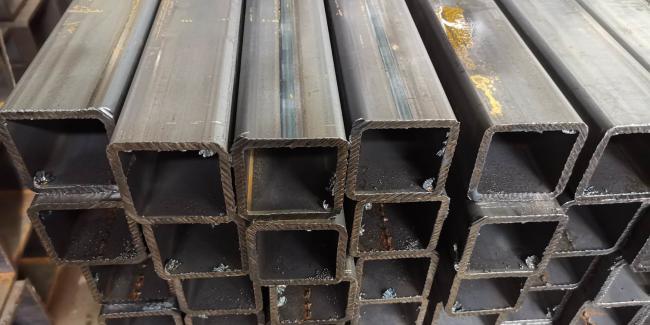

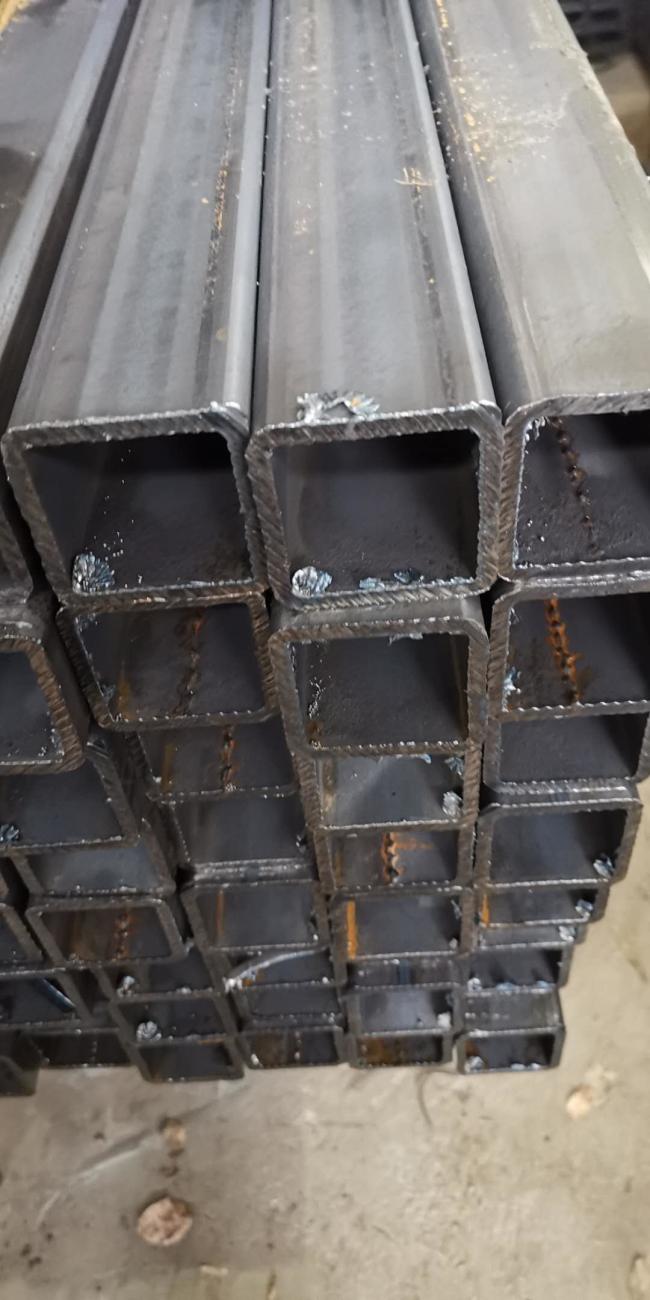

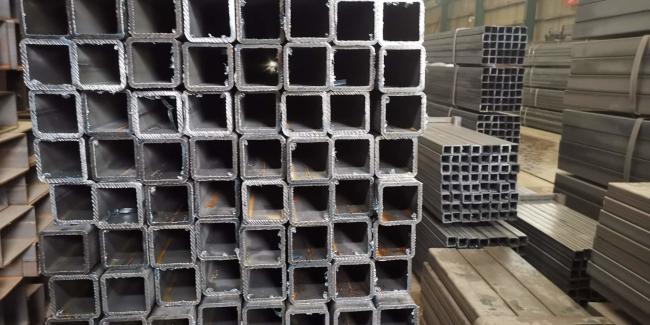

S235 / S275 / S355 Square Steel Pipes / ERW Steel Structural Hollow Section Sch 40
S235 / S275 / S355 Square Steel Pipes / ERW Steel Structural Hollow Section Sch 40
| EN10210 EN10219 S355 S235 S275 steel tube,galvanized steel pipe | ||
|
Name |
Diameter or Size |
Wall Tickness |
|
Round pipe |
8mm-3000mm |
0.4mm-60mm |
|
Square pipe |
30×30mm-800×800mm |
2mm-30mm |
| Rectangular pipe |
50×30mm-800×300mm |
2mm-30mm |
|
Length |
1m-16m or according to customers’requirements |
|
|
Standards |
EN 10210 EN10219 ASTM A500 JIS G3466 STKR etc |
|
|
Grade |
S235JRH S275J2H S355J0H S355J2H Grade A/B/C/D 400/490 |
|
|
Surface finish |
Black Bright and Galvanized or painted |
|
|
Packing |
With steel belts or nylon or according to customers’requirements |
|
|
Application |
Structural pipe Pressure pipe Mechanical system roller,etc |
|
|
Supply ability |
10000T per month |
|
|
Payment terms |
L/C T/T or Western Union |
|
| Trade terms |
FOB/CIF/CFR |
|
| Certification |
CE CCS ISO9001 and so on |
|
EN 10025 S355 Steel
S355 steel is a European standard structural steel grade, according to EN 10025-2: 2004, material S355 is divided into 4 main quality grades:
- S355JR (1.0045),
- S355J0 (1.0553),
- S355J2 (1.0577) and
- S355K2 (1.0596).
The properties of structural steel S355 is better than steel S235 and S275 in yield strength and tensile strength.
Steel Grade S355 Meaning (Designation)
The following letters and numbers explains the steel grade S355 meaning.
- “S” is short for “structural steel”
- “355” refers to the minumum yield strength value for the flat and long steel thickness ≤ 16mm.
- “JR” means the impact energy value is minumum 27 J at room temperature (20℃).
- “J0” can withstand the impact energy at least 27 J at 0℃.
- “J2” related to the minumum impact energy value is 27 J at -20℃.
- “K2” refers to the minumum impact energy value is 40 J at -20℃.
Datasheet and Specification
Below are the tables to show the steel grade S355 datasheet including chemical composition, yield strength, tensile strength and elongation, etc. All data sheet of DIN EN 10025-2 is the same as BS EN 10025-2 and other EU member states.
Chemical Composition
The datasheet below shows grade S355 steel chemical composition.
| S355 Chemical Composition % (≤) | ||||||||||
| Standard | Steel | Grade | C | Si | Mn | P | S | Cu | N | Method of deoxidation |
| EN 10025-2 | S355 | S355JR | 0.24 | 0.55 | 1.60 | 0.035 | 0.035 | 0.55 | 0.012 | Rimmed steel is not allowed |
| S355J0 (S355JO) | 0.20 | 0.55 | 1.60 | 0.030 | 0.030 | 0.55 | 0.012 | |||
| S355J2 | 0.20 | 0.55 | 1.60 | 0.025 | 0.025 | 0.55 | – | Fully killed | ||
| S355K2 | 0.20 | 0.55 | 1.60 | 0.025 | 0.025 | 0.55 | – | Fully killed | ||
Mechanical Properties
The datasheet below gives EN 10025 S355 steel mechanical properties such as yield strength, tensile strength and elongation.
Yield Strength
| S355 Yield Strength (≥ N/mm2); Dia. (d) mm | |||||||||
| Steel | Steel Grade (Steel Number) | d≤16 | 16< d ≤40 | 40< d ≤63 | 63< d ≤80 | 80< d ≤100 | 100< d ≤150 | 150< d ≤200 | 200< d ≤250 |
| S355 | S355JR (1.0045) | 355 | 345 | 335 | 325 | 315 | 295 | 285 | 275 |
| S355J0 (1.0553) | |||||||||
| S355J2 (1.0577) | |||||||||
| S355K2 (1.0596) | |||||||||
Tensile Strength
| S355 Tensile Strength (≥ N/mm2) | ||||
| Steel | Steel Grade | d<3 | 3 ≤ d ≤ 100 | 100 < d ≤ 250 |
| S355 | S355JR | 510-680 | 470-630 | 450-600 |
| S355J0 (S355JO) | ||||
| S355J2 | ||||
| S355K2 | ||||
Elongation
| Elongation (≥%); Thickness (d) mm | ||||||
| Steel | Steel Grade | 3≤d≤40 | 40< d ≤63 | 63< d ≤100 | 100< d ≤ 150 | 150< d ≤ 250 |
| S355 | S355JR | 22 | 21 | 20 | 18 | 17 |
| S355J0 (S355JO) | ||||||
| S355J2 | ||||||
| S355K2 | 20 | 19 | 18 | 18 | 17 |
|
