ASTM 5140 10-140mm 1.7035 40Cr Alloy Steel Plate
ASTM 5140 Alloy Steel Plate 10 - 140mm Custom Cutting 1.7035 40Cr Alloy Steel

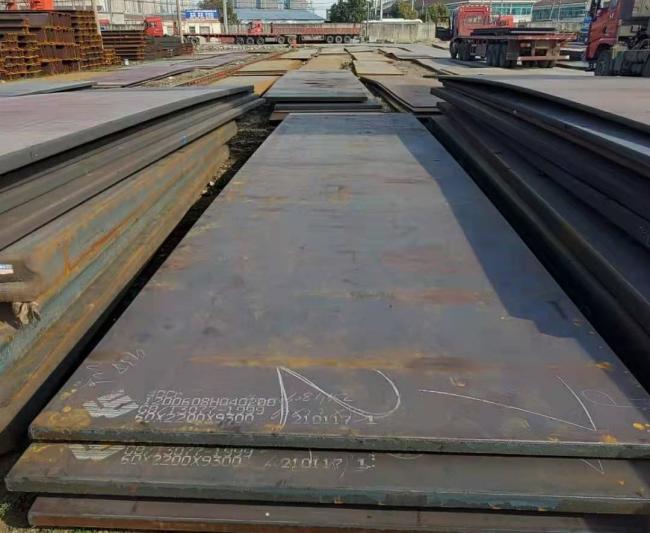

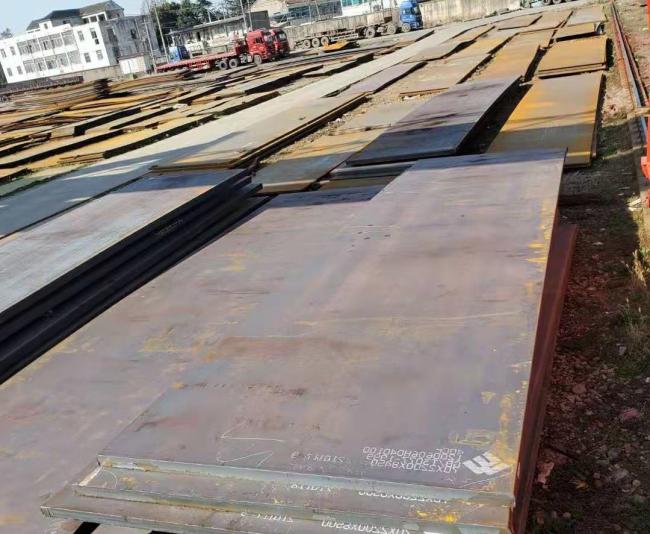

Detail informations of our 5140 Alloy Steel Plate
|
Product Name
|
5140 Alloy Steel Plate |
|
Width
|
2200mm or custom as request
|
|
Length
|
custom as request |
| Thickness | 10 - 140mm |
|
Service
|
Cutting plate into any size as request |
|
Other Grade
|
1035 1040 1055 1060 1065 1070 1016 1037 1039 1046 1053 1566 1572 Grade 50 Grade 55 Grade 60 Grade 65 Grade 80 S35C S40C S50C S55C S58C SWRH67B SWRH72A SWRH77A 40 1040 65 1065 SWRCH22K C22E S550QL 1.8925 1.0114 1.0425 40Cr 5140
|
|
Application
|
Widely used in construction machinery, mining machinery, coal mining machinery, environmental protection machinery, metallurgical
machinery and other parts.Excavator, loader, bulldozer bucket plate, blade plate, side blade plate, blade.Crusher liner, blade |
|
MOQ
|
500 kgs |
|
Shipment time
|
5 - 7 days for mateials in stock |
5140 steel has good comprehensive mechanical properties and is one of the most widely used steel types, used for manufacturing parts of medium speed and medium load, such as machine tool gear, shaft, worm, spline shaft and so on. The tensile strength, yield strength and hardenability of 5140 alloy steel are higher than 1045 steel, with higher fatigue strength and good toughness, normalizing or tempering machinability are very good, annealing machinability is also good, generally used after tempering treatment.
5140 steel products we can supply:
AISI 5140 steel, we can supply the round bar, steel flat bar, plate, hexagonal steel bar and steel square block. DIN W N-R 1.7035 steel Round bar can be sawn to your required lengths as one offs or multiple cut pieces. 1.7035 alloy steel Rectangular pieces can be sawn from flat bar or plate to your specific sizes. Ground tool steel bar can be supplied, providing a quality precision finished bar to tight tolerances.
Chemical composition
| C(％) | 0.38～0.43 | Si(％) | 0.15～0.35 | Mn(％) | 0.70～0.90 | P(％) | ≤0.025 | |
| S(％) | ≤0.040 | Cr(％) | 0.70～0.90 | Mo(％) | 0.06Max | Ni(％) | 0.25Max |
Equivalent Of 5140 Alloy Steel
| USA | Germany | China | Japan | France | England | Italy | Poland | ISO | Austria | Sweden | Spain |
| ASTM/AISI/UNS/SAE | DIN,WNr | GB | JIS | AFNOR | BS | UNI | PN | ISO | ONORM | SS | UNE |
| 5140 / G51400 | 41Cr4 / 1.7035 | 40Cr | SCr440 | 42C4 | 530A40 / 530M40 | 41Cr4 | 2245 |
Applications
Gear, shafts, Alloyed case hardening steel for parts with a required core tensile strength of 1000 – 1300 N/mm² and good wearing resistance as boxes, piston bolts, spindles, camshafts, gears, shafts and other mechanical controlling parts.Especially in wheels and stopcock.
Applications included worm, spline shaft, main shaft, oil pump rotor, sliding block, lantern ring, etc.
