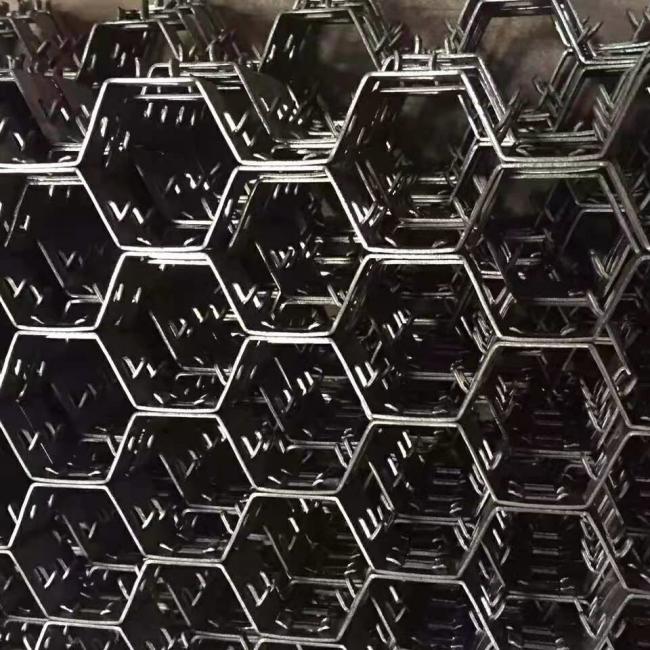

Grade 310S 410S Stainless Steel Tortoiseshell Net 10-40mm Height
Grade 304 310S 410S Stainless Steel Tortoise Shell Net 10 - 40mm Height Tortoise Shell Net
| Grade | Height(mm) | Thickness(mm) | Hole Size(mm) | Whole Size | Area(m2/PCS) | Length*Width(mm) |
| Carbon Steel | 8 | 1.2 | 40*40 | 8-1.2-40*40 | 0.6 | 1070*562 |
| Carbon Steel | 10 | 1.2 | 40*40 | 10-1.2-40*40 | 0.6 | 1070*562 |
| Carbon Steel | 15 | 1.5 | 50*50 | 15-1.5-50*50 | 1 | 1550*650 |
| Carbon Steel | 15 | 1.75 | 50*50 | 15-1.75-50*50 | 1 | 1550*650 |
| Carbon Steel | 20 | 1.75 | 50*50 | 20-1.75-50*50 | 2 | 1550*1300 |
| 0Cr13 | 10 | 1.2 | 40*40 | 10-1.2-40*40 | 0.6 | 1070*562 |
| 0Cr13 | 20 | 1.75 | 50*50 | 20-1.75-50*50 | 1.9 | 1550*1230 |
| 0Cr13 | 25 | 1.75 | 50*50 | 25-1.75-50*50 | 1.9 | 1550*1230 |
| 0Cr13 | 40 | 1.75 | 50*50 | 40-1.75-50*50 | 1.9 | 1550*1230 |
| 304 | 8 | 1.2 | 40*40 | 8-1.2-40*40 | 0.6 | 1070*562 |
| 304 | 10 | 1.2 | 50*50 | 10-1.2-50*50 | 1 | 1550*650 |
| 304 | 20 | 1.75 | 50*50 | 20-1.75-50*50 | 1.88 | 1540*1225 |
| 304 | 25 | 1.75 | 50*50 | 25-1.75-50*50 | 1.9 | 1550*1230 |
| 304 | 40 | 1.75 | 50*50 | 40-1.75-50*50 | 1.9 | 1550*1230 |
| S32205 | 10 | 1.2 | 40*40 | 10-1.2-40*40 | 0.73 | 1340*590 |
| 0Cr25Ni20 | 10 | 1.2 | 40*40 | 10-1.2-40*40 | 0.6 | 1070*562 |
| 0Cr25Ni20 | 20 | 2.0 | 50*50 | 20-2.0-50*50 | Custom as request: length1550*width | |
Other Grade: 304L 321 309S 316L 420 430.etc
Product advantages:
hexagonal hexsteel has increased its fixing power with the lining material, hence effectively strengthening self connecting property of the lining material. It can keep the heat insulation layer from peeling off znd raise the fastness of lining material.
Applications:
used for pouring shapeless lining material for lining material fixing up, We have produced necessary metal parts for many mainfram factories, various lining metal components for many petrochemical manufacturers. The products producted are widely used in petrochemical large devices, especailly as one of the key lining parts conducive to the catalyst.
