ASTM A240 S30451 304N 0.5 - 3.0mm Flat Stainless Steel Sheet
ASTM A240 S30451 304N Stainless Steel Sheet 0.5 - 3.0mm from TISCO SS Sheet 304N

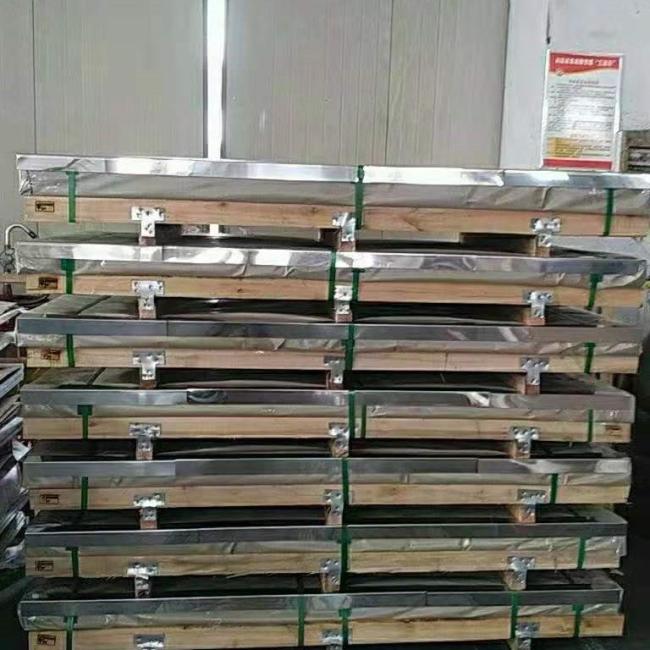

Stock informations of our 304N stainless steel sheet
| No. | Grade | Thickness | Size | Brand | Surface |
| 1 | 304N | 0.5mm | 1219*2438mm | TISCO | 2B |
| 2 | 304N | 0.6mm | 1219*2438mm | TISCO | 2B |
| 3 | 304N | 0.8mm | 1219*2438mm | TISCO | 2B |
| 4 | 304N | 1.0mm | 1219*2438mm | TISCO | 2B |
| 5 | 304N | 1.2mm | 1219*2438mm | TISCO | 2B |
| 6 | 304N | 1.5mm | 1219*2438mm | TISCO | 2B |
| 7 | 304N | 2.0mm | 1219*2438mm | TISCO | 2B |
| 8 | 304N | 2.5mm | 1219*2438mm | TISCO | 2B |
| 9 | 304N | 3.0mm | 1219*2438mm | TISCO | 2B |
Service for Stainless Steel Sheet
| Service | Type | available size range | Note |
| Cutting | Slit cutting | 0.5 - 10.0mm, min width 10mm | |
| Coil cutting | cutting coils into any length as request,max length10m | ||
| Laser cutting | cutting different size of sheets based on drawning | ||
| Surface treatment | Protect film | Laser film, pvc film | |
| surface process | hairline, mirror 8k, checkered, colored.etc |
Grade Description
Stainless steel grade 304 is the most commonly used stainless steel. Stainless steel grade 304N has better corrosion resistance than grade 302, and is mostly non-magnetic in nature; however when cold worked it acquires a slightly magnetic quality.
Chemical Composition
The chemical composition of grade 304N stainless steel is outlined in the following table.
Element | Content (%) |
|---|---|
Chromium, Cr | 18-20 |
Nickel, Ni | 8-11 |
Manganese, Mn | 2 |
Silicon, Si | 1 |
Nitrogen, N | 0.1-0.16 |
Carbon, C | 0.08 |
Phosphorous, P | 0.045 |
Sulfur, S | 0.030 |
Iron, fe | Balance |
Mechanical Properties
The mechanical properties of grade 304N stainless steel are displayed in the following table.
Properties | Metric | Imperial |
|---|---|---|
Tensile strength | 620 MPa | 89900 psi |
Yield strength | 330 MPa | 47900 psi |
Elastic modulus | 193-200 GPa | 28000- 29000 ksi |
Hardness, Rockwell B | 85 | 85 |
Application
Grade 304N stainless steel is widely used in the following applications:
Valves
Oil well filter screens
Cooling coils
Pressure vessels
evaporators
Beer barrels
Chemical equipment
Dairy equipment,
Flexible metal hose
Nuclear vessels
Textile dyeing equipment
Food processing equipment
Hypodermic needles
