TP304 TP316L TP321 TP317L DN6 - DN400 Stainless Steel Seamless Pipe
TP304 TP316L TP321 TP317L Stainless Steel Seamless Pipe DN6 - DN400 SS Pipe Stainless Pipe
stainless steel pipe system is the product of choice for carrying corrosive or sanitary fluids, slurries and gases, particularly where high pressures, high temperatures or corrosive environments are involved. As a result of the aesthetic properties of stainless steel, pipe is often use in architectural applications.
Stainless steel pipe can generally be defined as a heavy wall thickness tubing, with dimensions as specified by the American National Standards Institute (ANSI). Pipe dimensions are nominated by outside diameter indicated by the NPS (imperial) or DN (metric) designator and sometimes referred to as the ‘nominal bore’ – and wall thickness, is determined by the schedule number. The standard ASME B36.19 covers these dimensions.
Stainless steel pipe and fittings are supplied in the annealed condition to facilitate fabrication and ensure best corrosion resistance. Atlas Steels can also supply stainless steel pipe with an abrasive polished finish suitable for architectural applications.
Welded pipe
Welded stainless steel pipe is manufactured from 2B or HRAP stainless steel strip – formed (to shape) and longitudinally welded to completed pipe. With the exception of very large pipe welds are made without the addition of filler metal. Standard welded pipe is in nominal lengths of 6.0 to 6.1 metres.
Manufacturing specification:
- ASTM A312M – Austenitic
- ASTM A358M – Austenitic (large diameter)
- ASTM A790M – Duplex.
| Name | Stainless Steel Seamless Pipes |
| Standard | ASTM, GB, JIS, DIN, EN, AISI |
| Material Grade | TP304 TP304L TP316 TP316L TP347 TP347H TP321 TP321H TP310 TP310S |
| TP410 TP410S TP403 | |
| S31803/S32205 S32750 S32760 | |
| Outer Diameter | Seamless Pipe: 4mm-812.80mm |
| Welded Pipe: single slit(Φ8mm-Φ630mm); girth(Φ630mm-Φ3000mm), | |
| Thickness | Seamless Pipe: 0.5mm - 60mm |
| Welded Pipe: single slit(0.5mm-25mm);girth(3mm-45mm) | |
| Length | 5.8-6.1 m or as customers' request |
| Tolerance | Acording to the Standard. |
| Surface | 180G, 320G, 400G Satin / Hairline |
| 400G, 500G, 600G or 800G Mirror finish | |
| Test | UT, ET, HT, RT,ect, and others according to the standard,or as the requests of the customers |
| Certificate | ISO9001-2008,ASME, PED |
| Delivery Time | 30-60Days, Depends on quantity |
stainless steel pipe sizes
| seamless stainless steel pipe |
|
| welded stainless steel pipe |
|
Packing details
Shipping Informations:
-
1. WORLDWIDE SHIPPING. (Except some countries and APO/FPO)
-
2. Goods delivered by 20" , 40" FCL/LCL by quantity or customer's request.
-
3. Customers specifying freight forwarders or negotiable shipping methods!
-
4. Delivery Time: 10-30days after conformed or according to quantity.
FAQ
| Q | What is our product range? |
| A | Based on our Stainless Steel seamless pipe factory, We supply the ONE-STOP service fittings,flanges, valves etc |
| Q | What is our advantages? |
| A |
1.SAILING has more than 10 years experience in this industry. 2.For each order, strict QC will be carried by the QC department before Shipping 3.Certificated by ISO,PED,TUV 4.Third party inspection such as TUV,BVmLloyd's,SGS. 5.Competitive price with reliable quality |

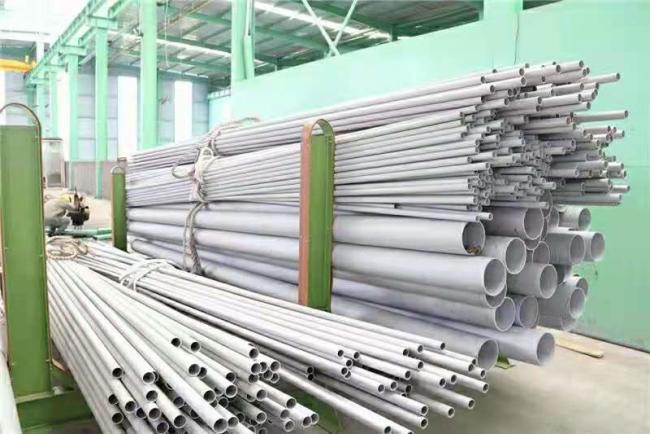

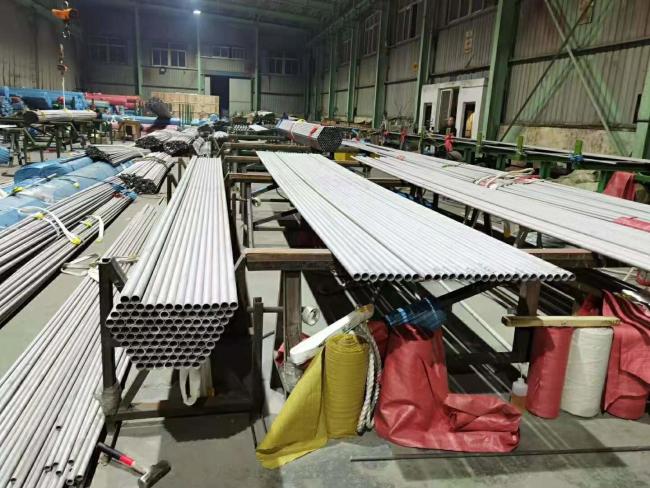

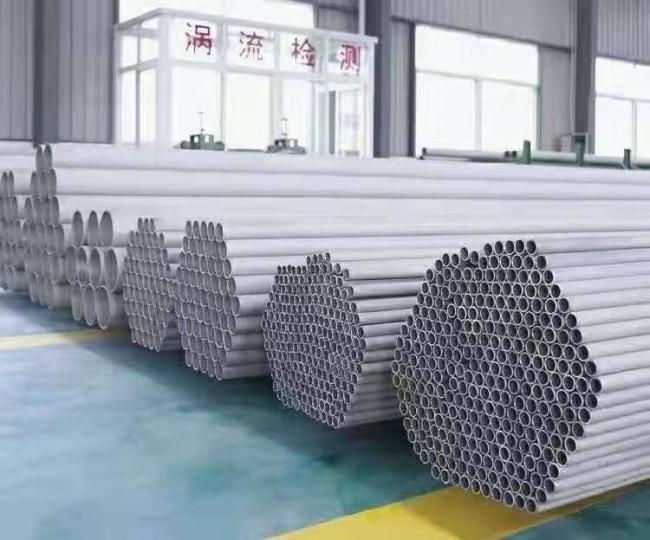

Products Pictures
