1.0mm Galvanized Steel Coils Dx51d Grade 50 - 150g Zinc Coated
PPGI/HDG/GI/SECC DX51 Zinc Coated Cold Rolled/Hot Dipped Galvanized Steel Coil
Quick Detial for Hot Dipped Galvanized Coil:
1. Thickness: 0.15-3.8mm
2. Width: 800 -1000/1220/1250/1500mm
3. Spangle: regular spangle, minimized spangle, big spangle and zero spangle
4. Inner diameter: 508mm or 610mm
5. Double size galvanized 60-275g /m2
6. Surface treatment:Passivated(chromated), oiled or anti-finger treatment(Acrylic coating)
7 Steel Grade:SGCC, SGCD3, SGCE, SGCH(Full hard), DX51D, DX53D, Q195, SGC490, ASTM A653
8. Standard: JIS G3302, ASTM A653, EN 10147
9. Package: with edge protector, steel hoop and seals, Export wrapped ID and OD protection or as per customers' requirements
10. Cutting and slitting can be requested as customer's designation
| 1 | Thickness | 0.15mm - 4.00mm |
| 2 | Width | 11mm-1500mm |
| 3 | Zinc Coating | Z80 - Z600/m2 |
| 4 | Surface treatment | Chromated, dry or oiled, cr3 treated. |
| 5 | CID | 508 or 610mm |
| 6 | Standard | ANSI, ASTM, BS, EN, JIS, GB |
| 7 | Grade | DX51D, SGCC, Cs-B, S280, S320, S350, S380, DQ, DDQ , Q195 |
| 8 | Technique | Hot dipped, hot rolled, cold rolled |
| 9 | Brand | MDS |
| 10 | Spangle: | Regular, Samll , Big or Zero |
| 11 | Skinnpassed | If required |
| 12 | Tension levelling | Continuously Hot Dip Galvanized Strips |
| 13 | Enduse | Profiles, purlins and other basic constructual enduses |

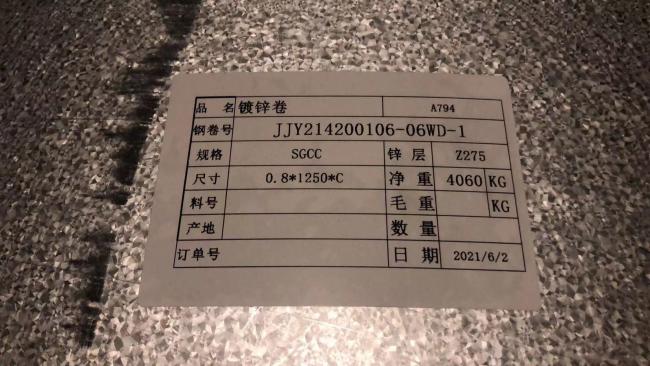

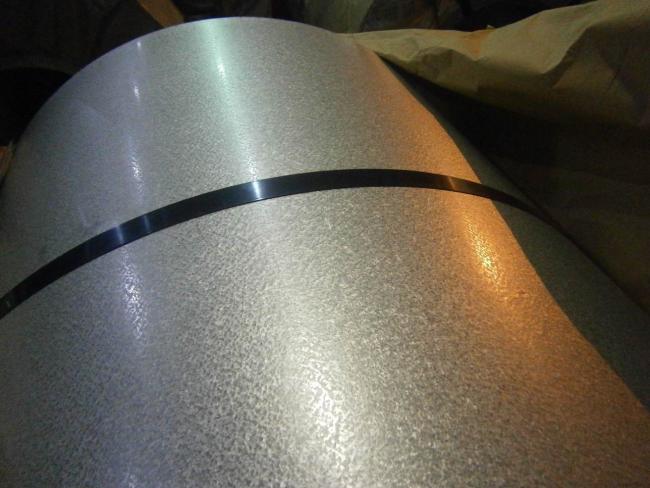

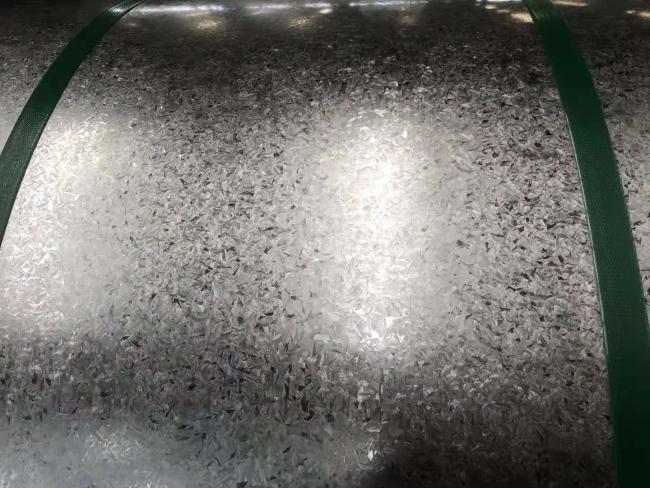

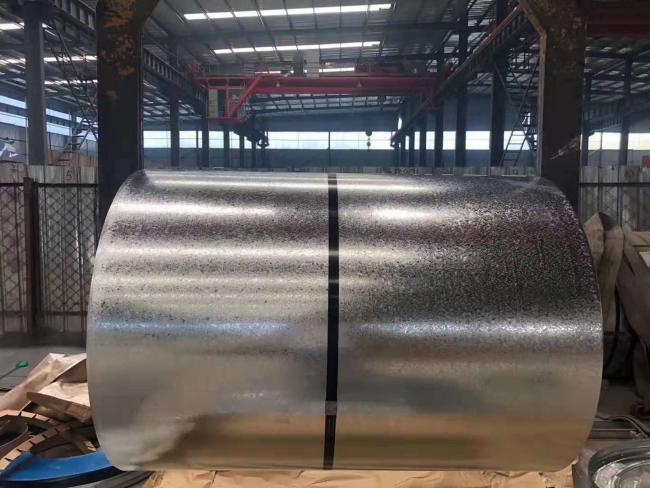

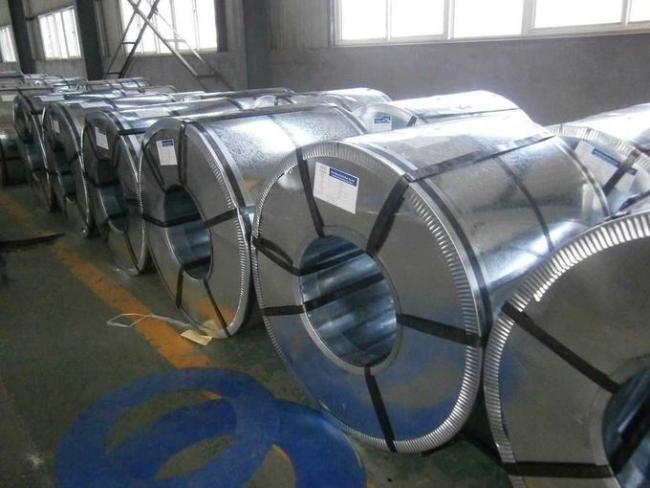

Photos for Hot Dip Galvanized Steel Coil
Photos for hot dip galvanized steel coil
Applications of gi steel coil:
1. Construction: roof and roof component, outside walls of civilian and industrial buildings, garage doors and window blinds.
2. Houshold appliances: washing machine, refrigerator, television, air conditioner and ventilation system, Vacuum cleaner, solar water heater.
3. Transportation: car ceiling, auto Industry Muffler, heat shields of exhaust pipe and catalytic converter, the ship bulkhead, highway fence.
4. Industry: industrial Instruments Electric control cabinet, industrial refrigeration equipment, automatic vending machine.
5. Furniture: lampshade, counter, signboard and medical facility etc.
Mill Test Certificate:(JIS G 3302 SGCH)
| Physical Spec | ||||||||||||
| No. | Heat No. | Size(mm) | Quantity | Chemical Composition(%) | Final | |||||||
| MT | C | Si | Mn | P | S | Tensile strength | Enlongation | Yield Strength(N/mm2) | ||||
| (Mpa) | (%) | |||||||||||
| 1 | 121208102 | 0.14MM X 750MM X COIL | 0.05 | 0.02 | 0.33 | 0.014 | 0.015 | 650 | 15 | 550 | A | |
| 2 | 121208208 | 0.15MM X 750MM X COIL | 0.06 | 0.03 | 0.32 | 0.015 | 0.019 | 660 | 17 | 558 | A | |
| 3 | 121208214 | 0.20MM X 750MM X COIL | 0.06 | 0.03 | 0.34 | 0.020 | 0.021 | 655 | 16 | 560 | A | |
| 4 | 121208216 | 0.30MM X 750MM X COIL | 0.08 | 0.02 | 0.40 | 0.016 | 0.017 | 660 | 17 | 568 | A | |
Competitive Advantage of galvanized steel roll:

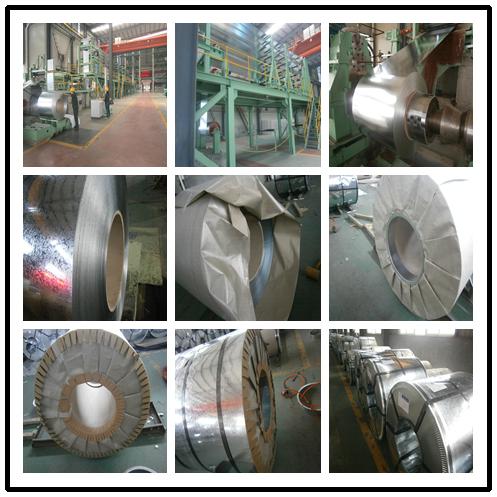

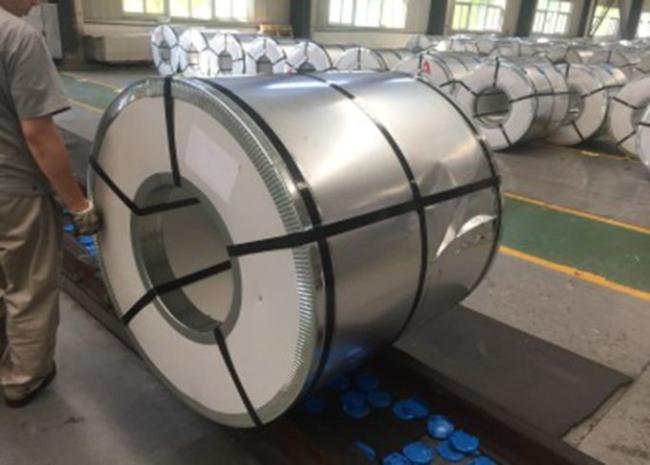

Packing pictures:
