Iso45001 Dia 50mm Molybdenum Rods 99.95 Percent Purity 2" Dia

Description:

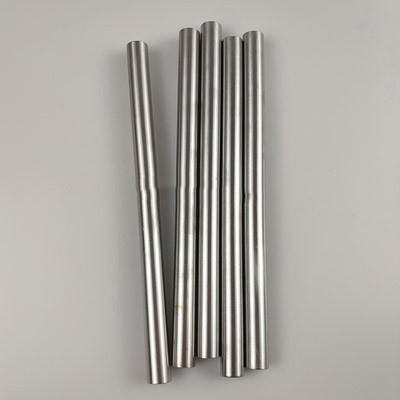

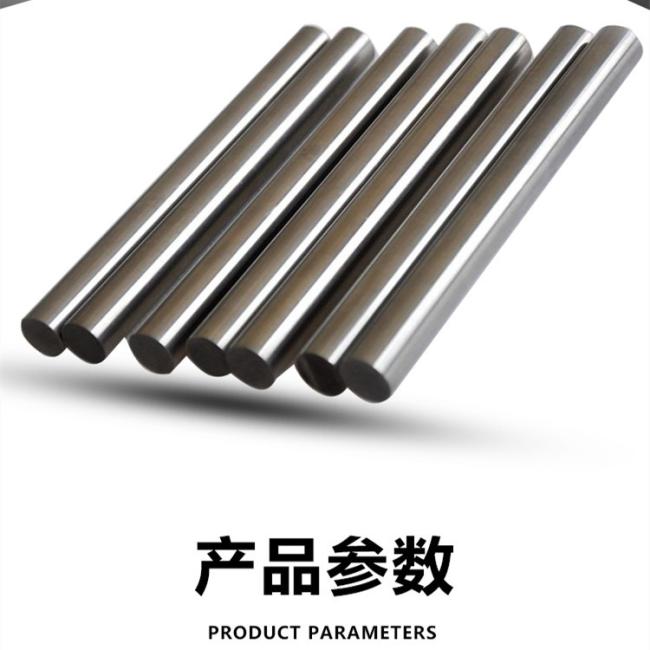

Product name: Molybdenum Rod
Standard: ASTM B387
Material: Mo >99.95%
Density: >10.2g/cc

Application:

Molybdenum rod can be stretched into molybdenum wire, molybdenum electrode and it also can be applied to steel-making additives, Electric vacuum parts, gas pipes, lead-wire, pole, side bar, daily-use glass, optical glass, insulation material and glass fiber.

Surface Finish:

Black - Surface is "as swaged" or "as drawn"; retaining a coating of processing lubricants and oxides.
Cleaned - Surface is chemically cleaned to remove all lubricants and oxides.
Ground - Surface is center-less ground to remove all coating and to achieve precise diameter control.



Specification:

Molybdenum rod is manufactured as random length pieces or cut to customers' desired lengths in diameters ranging from 0.080 inches to 6.00 inches. Below are most of the standard sizes. If you do not see the size of molybdenum rod that you require, please feel free to contact us.



Diameter	Length	Diameter Tolerance	Length Tolerance
0.08" ~ 0.40"	< 315"	±0.005"	+0.08", -0
0.40" ~ 0.80"	< 118"	±0.010"	+0.08", -0
0.80" ~ 4.00"	< 78"	±0.015"	+0.08", -0
>4.00"	< 40"	±0.025"	+0.08", -0

Composition:

Grade	The impurity content is not more than %
	Fe	Ni	Al	Si	Mg	C	N	O
Mo-1	0.01	0.005	0.002	0.01	0.005	0.01	0.003	0.008
Mo-2	0.01	0.005	0.005	0.01	0.005	0.01	0.003	0.02
