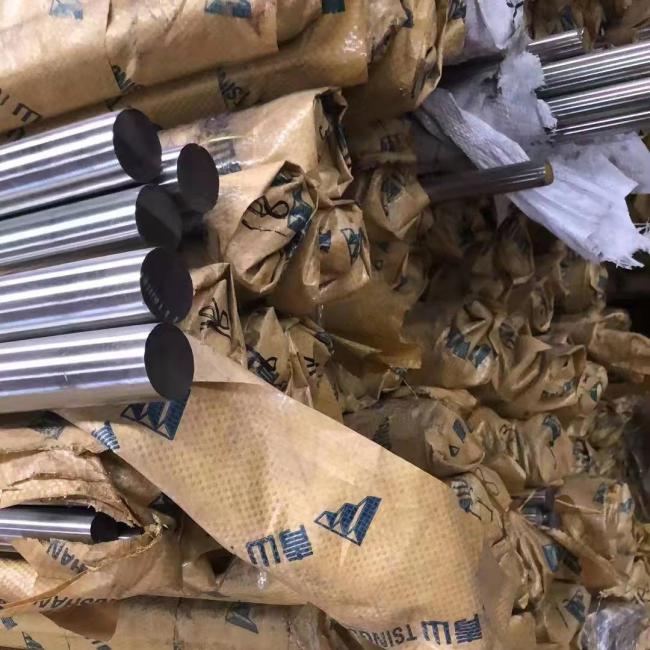

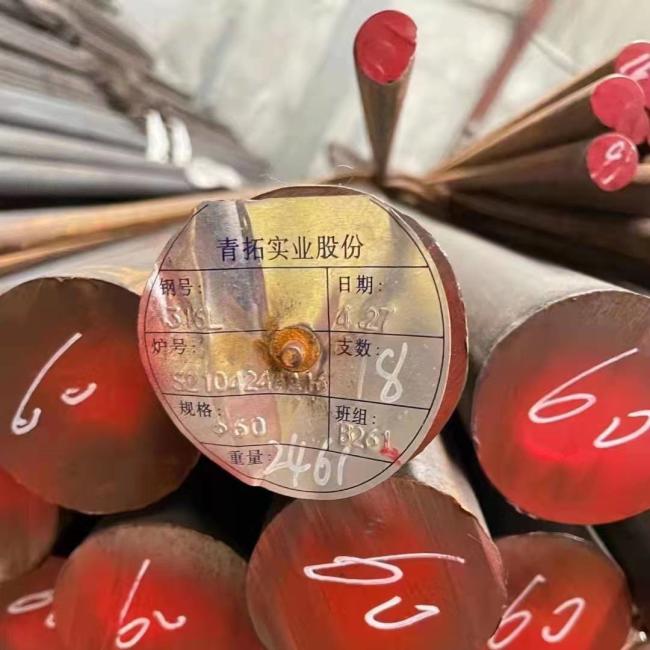

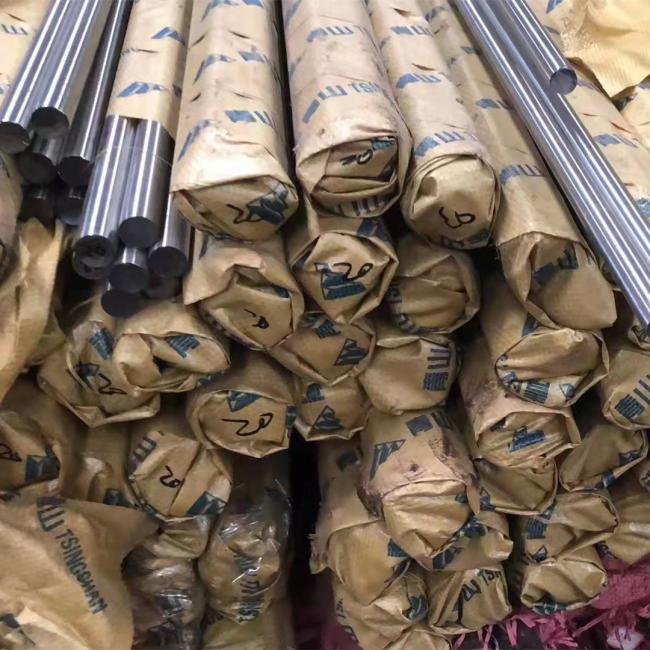

Astm A276 Stainless Steel Round Bar Tp316l Ss316l Bright
Price:
4 USD/KG
MOQ:
500KGS
Delivery Time:
7 Days
Brand:
Bao Steel
Product Description
|
Description
|
||
|
Item
|
Stainless steel round bar | |
|
Steel grade
|
200/300/400 series
|
|
|
Standard |
ASTM A213,A312,ASTM A269,ASTM A778,ASTM A789,DIN 17456, DIN17457,DIN 17459,JIS G3459,JIS G3463,GOST9941,EN10216, BS3605,
GB13296 |
|
|
Material
|
304,304L,309S,310S,316,316Ti,317,317L,321,347,347H,304N,316L, 316N,201,
202 |
|
|
Surface
|
Polishing,annealing,pickling,bright
|
|
|
Type
|
hot rolled and cold rolled
|
|
|
Delivery time
|
Prompt delivery or as the order quantity.
|
|
|
Package
|
Standard export seaworthy package,or as required.
|
|
|
Application |
Widely used in petroleum,foodstuff,chemical industry,construction, electric power,nuclear,energy,machinery,biotechnology,paper
making,shipbuilding,boiler fields. Pipes also can be made according to the customer's required. |
|
“316/316L Stainless Steel Round Bars Stock Available for Immediate Deliveries Worldwide!”
Stainless Steel 316/316L Round Bars
Prices for Stainless Steel 316/316L Round Bars Starting at Rs. 195/kg
Metline is one of the world most reliable supplier of stainless steel round bars with shortest delivery times. It can be supplied in a range of sizes and finishes with varying tolerances. Cold-finished stainless steel bar is usually supplied to meet the international standards of ASTM A276, A484 or A582/A484M.
Manufacturing Specifications for 316/316L Stainless Steel Round Bars, 316 Stainless Steel Rods
- ASTM A276 / A276M, Standard Specification for Stainless Steel Bars and Shapes
- ASTM A484 / A484M, Standard Specification for General Requirements for Stainless Steel Bars, Billets, and Forgings
- ASTM A479/ A479M, Standard Specification for Stainless Steel Bars and Shapes for Use in Boilers and Other Pressure Vessels
Designation of Stainless Steel 316/316L Grade Round Bars
| Stainless Steel [SS] 316 / 316H / 316 L / 316N / 316Ti | |
| AISI | 316 / 316H / 316 L / 316N / 316Ti |
| UNS | S31600 / S31609 / S31603 / S31651 / S31635 |
| Werkstoff Nr. | 1.4401 / 1.4404 / 1.4432 / 1.4435 / 1.4429 / 1.4571 |
Chemical Composition of Stainless Steel 316/316L Round Bars/Rods
| SS | 316 | 316H | 316N | 316L | 316Ti |
|---|---|---|---|---|---|
| Ni | 10 – 14 | 10 – 14 | 10 – 14 | 10 – 14 | 10 – 14 |
| Fe | Balance | ||||
| Cr | 16 – 18 | 16 – 18 | 16 – 18 | 16 – 18 | 16 – 18 |
| Mo | 2 – 3 | 2 – 3 | 2 – 3 | 2 – 3 | 2 – 3 |
| C | 0.08 max | 0.10 max | 0.03 max | 0.03 max | 0.08 max |
| Si | 0.75 max | 0.75 max | 0.75 max | 0.75 max | 0.75 max |
| Mn | 2 max | 2 max | 2 max | 2 max | 2 max |
| P | 0.045 max | 0.045 max | 0.045 max | 0.045 max | 0.045 max |
| S | 0.030 max | 0.030 max | 0.030 max | 0.030 max | 0.030 max |
| N | 0.1 max | 0.1 max | 0.1 max | 0.1 max | |
| Ti | 5 X % (C + N) | ||||
Mechanical and Physical Properties of Stainless Steel 316/316L Round Bars
| Density | 8.0 g/cm3 |
|---|---|
| Melting Point | 1400 °C (2550 °F) |
| Tensile Strength | Psi – 75000 , MPa – 515 |
| Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35 % |
Production and Supply Range for Stainless Steel 316/316L Round Bars – Buy Now!
| Standard | 316/316L, 1.4401, 1.4404 |
| Designation | ASTM A276, A479, ASME SA276, 479 |
| Range | 3 MM TO 350 MM DIA |
| Finish | Bright, Polish & Black |
| Form | Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc. |
Stainless Steel 316/316L Bright Round Bars Manufacturers, Suppliers Size Range
Metline Industries is a leading supplier of cold drawn machined bright bars with highest level of dimensional accuracy, right mechanical properties, and excellent machining capabilities.
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8” – 3.00” | h8-h9-h10-h11, ASTMA-484 |
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6” – 2.50” | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50” – 6.00” | h11, ASTMA-484 h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00” | h9-h10-h11, ASTMA-484 |
Specifications for Stainless Steel 316/316L Cold Drawn Round Bars
We can give Chamfering of 30 or 45 degrees on one or both the ends. For Strain-Hardened Bars, we can supply in B8(304) and B8M(316) in Class1 and Class2.
| Condition | Cold Drawn & Polished | Cold Drawn, Centreless Ground & Polished | Cold Drawn, Centreless Ground & Polished (Strain Hardened) |
| Grades | 201, 202, 303, 304, 304L, 310, 316, 316L, 321, 410, 420, 416, 430, 431, 430F & others | 304, 304L, 316, 316L | |
| Diameter (Size) | 2 mm to 5mm (1/8″ to 3/16″) | 6mm to 22m (1/4″ to 7/8″) | 10mm to 40mm (3/8″ to 1-1/2″) |
| Diameter Tolerance | h9 (Din 671),h11 ASTM A 484 |
h9 (Din 671) ASTM A 484 |
h9 (Din 671),h11 ASTM A 484 |
| Length | 3/4/5.6/6 meter (12/14ft/20feet) |
3/4/5.6/6 meter (12/14ft/20feet) |
3/4/5.6/6 meter (12/14ft/20feet) |
| Length Tolerance | -0/+200mm or +100mm or +50mm (-0 ”/+1 feet or +4 ” or 2 ”) |
-0/+200mm or +100mm or +50mm (-0 ”/+1 feet or +4 ” or 2 ”) |
-0/+200mm (-0 ”/+1 feet) |
Specifications for Peeled Turned Polished Stainless Steel 316/316L Round Bars, Forged Bars
We can manufacture and offer stainless steel hot rolled round bars and rods in “As rolled condition” or “Heat treated condition”. All products supplied by Metline Industries have passed IGC Practice E test, as well as UT Test.
| Condition | Peeled, Centre less Ground & Polished | Peeled & Polished | Peeled (Rough Turned) |
Forged, Rough Turned |
| Grades | 201, 202, 303, 304, 304L, 310, 316, 316L, 321, 410, 420, 416, 430, 431, 430F & others | 304, 304L, 316, 316L, 410, 416, 420, 431 | 303, 304, 304L, 316, 316L, 410, 416, 420, 431 | |
| Diameter (Size) | 20mm to 85mm (3/4 ” to 3–1/4 ”) |
85mm to 140mm (3-1/4 ” to 4–3/4 ”) |
25mm to 140mm (1 ” to 5–1/2 ”) |
150mm to 400mm (6 ” to 16”) |
| Diameter Tolerance | h9 (Din 671) ASTM A 484 |
h11 | K12/K13 (Din 1013) |
-0mm/+3mm (-0 ”/+0.12 ”) |
| Length | 3/4/5.6/6 meter (12/14ft/20feet) |
3/4/5.6/6 meter (12/14ft/20feet) |
3/4/5.6/6 meter (12/14ft/20feet) |
3 meter -5 meter 10 feet -16 feet |
| Length Tolerance | -0/+200mm or +100mm or +50mm (-0 ”/+1 feet or +4 ” or 2 ”) |
-0/+200mm or +100mm or +50mm (-0 ”/+1 feet or +4 ” or 2 ”) |
-0/+1000mm or 500mm (-0 ”/+3 feet or +2 feet) | -0/+2 meter- -0/+6 feet |
