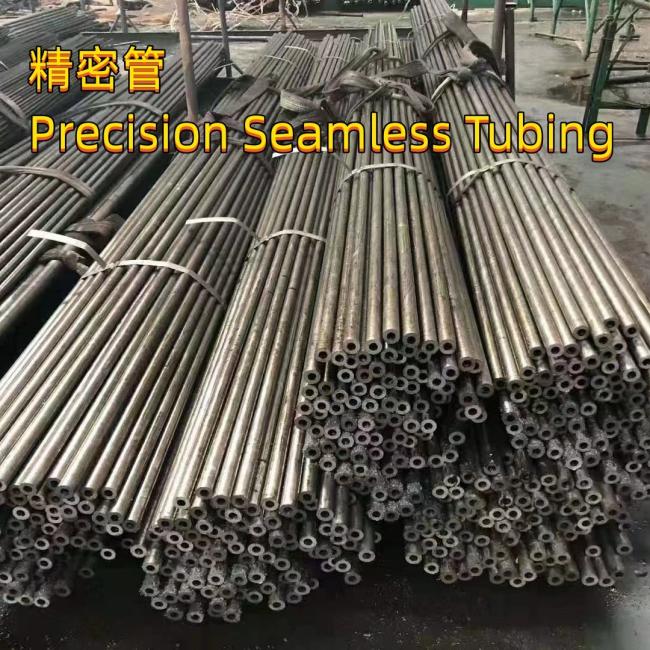

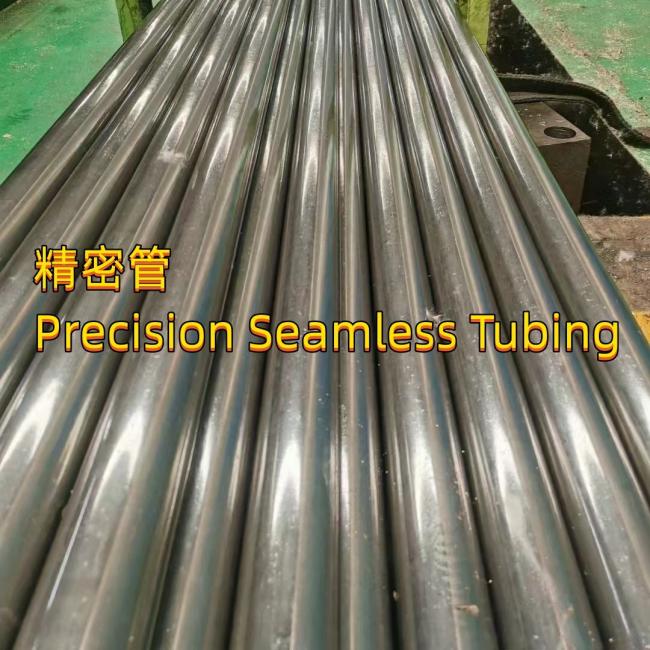

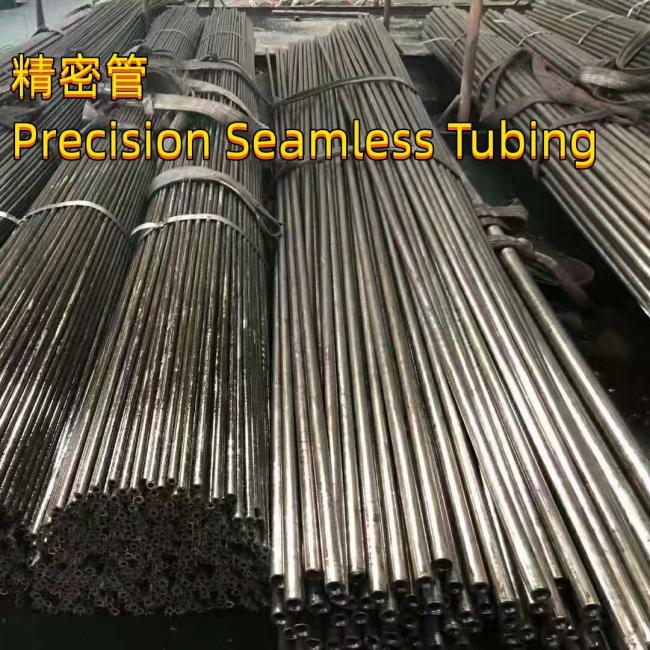

DIN2391 Precision Seamless Tubing St45 16mm 10mm Wall Thickness 3mm
Precision Steel Tube Cold Drawn Carbon Seamless Steel Pipe DIN2391 St35 St45 St37.0
Product description
| NAME | Cold Drawn Carbon Seamless Steel Pipe |
| STANDARD | ASTM, GB, API, JIS, BS, DIN, YB, SNY, etc |
| MATERIAL |
10#,20#,45#,A53A,A53B,A106Gr.A,A106Gr.B,A106A,A106B,ST52,ST358,16Mn, Q235, Q195, Q345, Q215, API 5L Gr.B,Gr.65,Gr.60,Gr.70, X42,X52,X60,X65,X70,X80,etc |
| SPECIFICATION |
Outer diameter: 15mm-1626mm Wall thickness: 2mm-30mm Length: 6m-12m or as requested |
| SEAM |
SAW(Spiral welded),SSAW(Spiral submerged-arc welded),HSAW,(Helical Submerged Arc Welded), ERW, |
| SURFACE |
Black painted, PE/PVC/PP coated, Galvanized, color coated, anti rust varnished, anti rust oiled, checkered, epoxy coating, etc. |
| END | plain end, spigot & socket joint, beveled, cut square, flanged, piling shoes |
| END PROTECTOR |
1) Plastic pipe cap 2) Iron protector |
| PACKAGE | Standard export package, suit for all kinds of transport or as required. |
| PRICE TERM | EXW, FOB, CFR, CIF, etc. |
| PAYMENT TERM | T/T, L/C at sight, etc. |
| APPLICATION |
1) General service for industries ( petroleum, chemical, aviation, etc.) 2) Fluid, gas and oil transport, 3) Press and heat transmission, 4) City construction, etc. |
| CONTACT | Please inform us if any item is interesting to you. |
Q235B, Q195B Thick Wall Heavy Wall Competitive Seamless Carbon Steel Pipe Price Per Ton
| Descriptions | Grades |
| Structural pipe |
20# 35# 45# Q345B, 16Mn, Q345B-E, 20Mn2, 25Mn, 30Mn2, 40Mn2, 45Mn2 SAE1018, SAE1020, SAE1518, SAE1045. |
| Liquid pipe | 20# q295b-e, q345b-e |
| High pressure boiler tube |
20G 15MnG 20MnG 15CrMoG, 12Cr1MoVG St35.8, sa106b, sa106c, sa210a, sa210c, A333P2, A333P11, A33P12, A333P22, A33P36, A333P91, A333P92, A335T2, A335T11, A335T12, A335T22, A335T91, A335T23, A335T9 |
| Pipeline |
API SPEC 5L, X42, X52, X60, X65,X70,X80 ASTMA53, ASTM A106, ASTM A333, BS301, BS3602, BS3603, BS3604, PSL1, PSL2, DNV-OS-F101, CSA-Z245 |
| Alloy pipe | 4140, 42CrMo, 32CrMo, 15CrMo, |
| Packing | Black paint, Varnish painting, Tarpaulin packing |
| End | Common round end, beveled. |
| Processing | Galvanizing; cutting; making thread outside the pipe; Machining. |
According to customer’s demanded material to produce the round bar, then making annealled heat treatment, then drill the hole as customer demanded inner diameter into the round bar, round bar piercing, making rough hole, then make precision processing to make outer diameter and inner diameter as requested. Any size hollow bar can be produced as demanded.
Tolerance for hollow round bar, forged round bar drilling hole hollow bar ASME SA530
| Type | Outer diameter(inner diameter) | Allowed tolerance | Wall thickness allowed tolerance |
|
Outer diameter |
≥219-457.2mm | -0.8 - +2.4mm |
-0.8 - +4.0mm |
| >457.2-660.4mm | -0.8 - +3.2mm | ||
| >660.4-863.6mm | -0.8 - +4.0mm | ||
| >863.6mm | -0.8 - +4.8mm | ||
| Inner diameter | All size | -1.6- 0mm | 0 - +3.2mm |
length tolerance -0 - +50mm
Round bar making Hollow bar cost is high
2. Hot rolled Hollow Bar
using hot rolled steel pipe billet to make heating and piercing, elongating, sizing and stranghtening, cooling, finally hollow bars finished, this is the type most commonly used. Because it is hot rolled, so cost is lowest, but it is suit for large quantity, for small quantity, have to make cold drawn or round bar piercing. size: outer diameter 32mm- 499mm, wall thickness 4mm- 80mm
3. Cold drawn Hollow Bar
for outer diameter not over than 63.5mm, small size hollow bar, when demanded quantity is under 5 tons, usually make cold drawn hollow bar, using larger size hot rolled hollow bar to draw to the size demanded.
some size can be finished only by one time drawing, but some other sizes might need twice or three times to finish drawing, it takes time, so the cost is higher.
cold drawn size outer diameter 32mm- 63.5mm
4. Hot- expanding Hollow Bar
For hollow bar sizes are special, not common sizes, have to use smaller thick wall hollow bar to hot expand to be larger size hollow bar, but the technical property for hot-expanded hollow bar will be lower than the original hollow bar. Size: outer diameter over 356mm.
Delivery conditions:
BK (+C) BKW (+LC) BKS (+SR) GBK (+A) NBK (+N)
Major Inspection Items: Tensile stength, Yield stength, Elongation, Flattenging, Flaring, Chemical analysis Eddy Current Test
100%, Size and surface checking 100%
Certificates: according to EN 10204 3.1
Applications:
1. For Vehicle (Automotive, locomotive, Construction Machinery like Concrete pump and others)
A. Powertrain system:
• Fuel-rails • Fuel-lines • Common-rail diesel lines • Piston-cooling jets • SCR & EGR
• Rigid pipes • Oil- & water-cooling pipes
B. Fluid handling systems
• Tube assemblies • Air-conditioning tube • Clutch actuator pipes C. Drive and steering system • Ingrain Gear Pipes •
Power-Steering Feed-Pipes
D. Hydraulic system
• Hydraulic and Pneumatic Pressure Lines • Hydraulic fittings • Hydraulic tubing
E. Others For example
• Front axles • Sun-shading board wire tube and other wire tubes • Headrest chair Tube
2. Mechanical and engineering usage
• Mechanic Processing and parts • Metal processing •Heat Exchange • Gas Cylinders
•Sub-sea and Marine • Aerospace • Winder Power Equipment •Energy and Power Generation •Bearings • etc
Other usage for details as per customers requirements
RFQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment>=1000USD, 30% T/T in advance ,balance before shipment.
