SUS304L ASTM Stainless Steel Strip 1219mm Stainless Steel Roll
ASTM 304L / JIS SUS304L / EN 1.4307 Stainless Steel Strip Slit Cutting Stainless Steel Roll
304L Stainless Steel Strip Specifications
- Grade: 304L
- Standard: ASTM/EN/JIS
- Thickness: 0.03mm-3.0 mm
- Width: 1.5mm-600 mm
- Length: coil type or it can be produced as customer requirements
- Surface Finish: NO.1, 2B, 2H(Rerolled Bright), BA, No.4, 8K (Mirror), HL (Hairline), Polishing Bright, etc
- Edge: Mill Edge, Slit Edge, Deburred Edge, Round Edge, V Type Edge
304L Stainless Steel Strip Introductions
304L stainless steel strip is 300 series stainless steel that is one of the most widely used metal strips due to its corrosion resistance and nice fabrication.
Both 304 and 304L stainless steel strips can be used for many similar applications and the differences are minor, but they really do exist.
304L stainless steel strip has lower carbon contents than 304 stainless steel strip.
304L Stainless Steel Strip Applications
304L stainless steel strip is widely used in automotive structures, chemical industry, food processing industry, marine environment industry, springs, welded parts and heat exchangers industry.
304L stainless steel strip can be also used in heavy industrial applications, especially in high-corrosion environments.
304L Stainless Steel Strip Chemical Composition
The chemical components of grade 304L stainless steel strip is summarized in the following table:
| Grade | Standard | C | Si | Mn | P | S | Cr | Ni | Mo |
| 304L | ASTM A240 | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 18.00-20.00 | 9.00-12.00 | – |
304L Stainless Steel Mother Coil Mechanical Property
| Grade | Standard | Yield Strength Rp0.2 (N/mm²) |
Tensile Strength Rm (N/mm²) |
Elongation % |
Hardness (HV) |
Hardness (HRB) |
|---|---|---|---|---|---|---|
| 201 | ASTM A240 | ≥ 275 | ≥ 520 | ≥ 35 | ≤ 260 | ≤ 101 |
| 202 | ASTM A240 | ≥ 275 | ≥ 520 | ≥ 40 | ≤ 218 | ≤ 95 |
| 301 | ASTM A240 | ≥ 205 | ≥ 520 | ≥ 40 | ≤ 200 | ≤ 90 |
| 304 | ASTM A240 | ≥ 205 | ≥ 515 | ≥ 40 | ≤ 210 | ≤ 92 |
| 304L | ASTM A240 | ≥ 205 | ≥ 520 | ≥ 40 | ≤ 200 | ≤ 90 |
| 316L | ASTM A240 | ≥ 177 | ≥ 480 | ≥ 40 | ≤ 200 | ≤ 90 |
| 316Ti | ASTM A240 | ≥ 205 | ≥ 520 | ≥ 40 | ≤ 200 | ≤ 90 |
| 317L | ASTM A240 | ≥ 205 | ≥ 515 | ≥ 40 | ≤ 218 | ≤ 95 |
| 309S | ASTM A240 | ≥ 205 | ≥ 515 | ≥ 40 | ≤ 218 | ≤ 95 |
| 310S | ASTM A240 | ≥ 205 | ≥ 520 | ≥ 40 | ≤ 200 | ≤ 90 |
304L Stainless Steel Strip Production Tolerance
| Thickness(mm) | Width＜125mm | 125mm≤Width＜250mm | 250mm≤Width＜600mm |
|---|---|---|---|
| ≥0.03-0.10 | ±0.06T | ±0.10T | ±0.10T |
| ≥0.10-0.15 | ±0.01 | ±0.015 | ±0.020 |
| ≥0.15-0.20 | ±0.015 | ±0.020 | ±0.025 |
| ≥0.20-0.25 | ±0.015 | ±0.020 | ±0.025 |
| ≥0.25-0.30 | ±0.018 | ±0.025 | ±0.030 |
| ≥0.30-0.40 | ±0.020 | ±0.025 | ±0.030 |
| ≥0.40-0.50 | ±0.025 | ±0.030 | ±0.040 |
| ≥0.50-0.60 | ±0.030 | ±0.030 | ±0.040 |
| ≥0.60-0.80 | ±0.030 | ±0.040 | ±0.040 |
| ≥0.80-1.00 | ±0.030 | ±0.040 | ±0.050 |

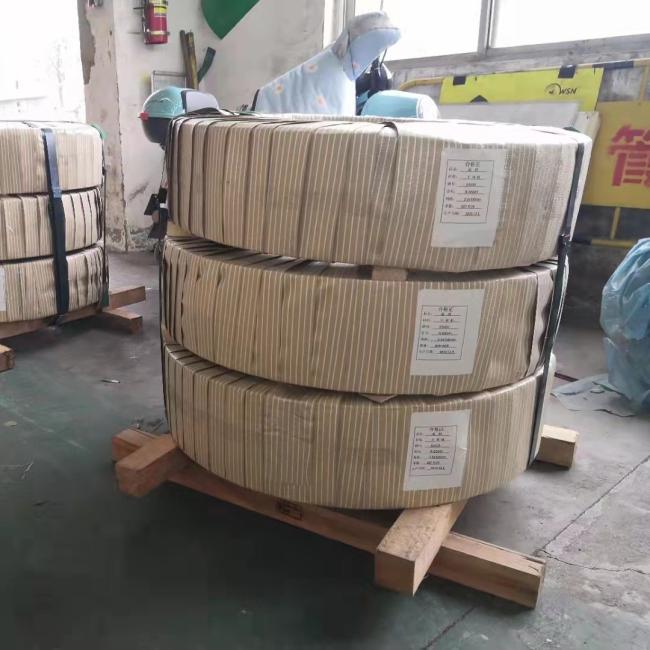

304L Stainless Steel Strip Packaging
Our company have professional team who can adopt developed packaging technology to assure no any damages of products during transportation.
- Standard export packaging:
Waterproof Paper Winding+PVC Film+Strap Banding+Wooden Pallet or Wooden Case; - Customized packaging as your request (Logo or other contents accepted to be printed on the packaging);
- Other special packaging will be designed as customer’s request;
- Eye to wall and eye to sky are both available;
- By International Express: DHL/UPS/FEDEX/EMS and our own express line;
- By air or By sea;
- Shipping port: Shanghai, Ningbo or as your request.

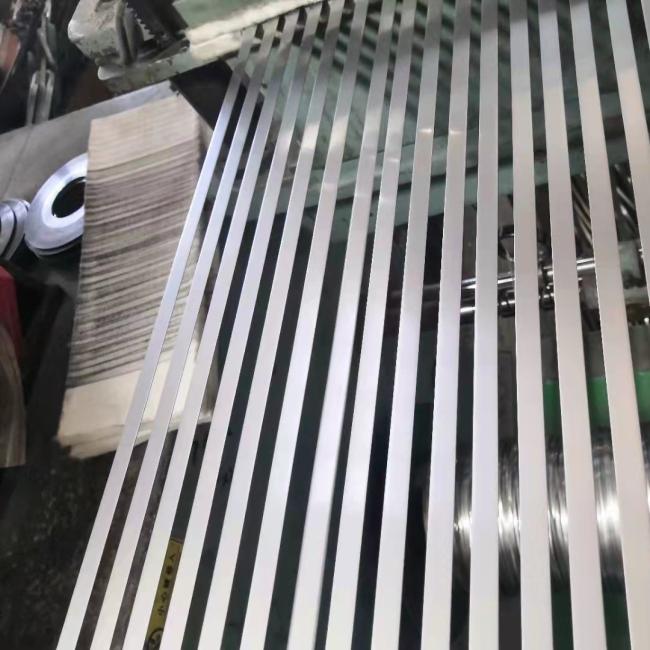

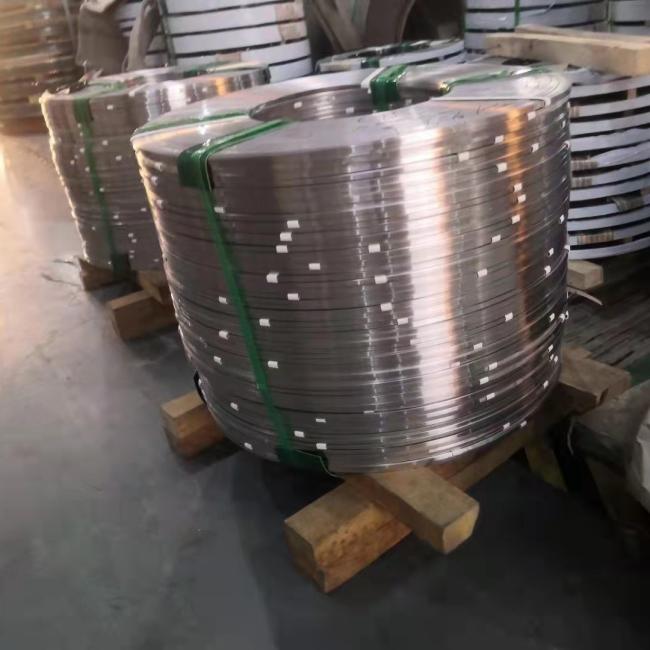

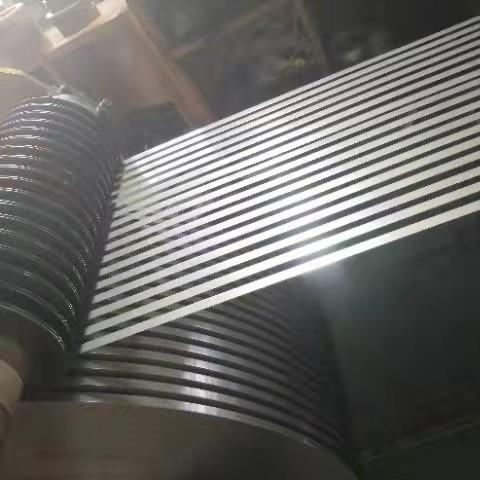

Products Show
