Heat Resistant 310S Stainless Steel Flat Bars Chemical Industrial SS Flat Bar
Heat Resistant 310S Stainless Steel Flat Bar EN 1.4845 Stainless Steel / SS Flat Bar
Grade 310 / 310S stainless steel (1.4845) is one of the most widely used grades of heat resistant stainless steel supplied into numerous industry sectors. The key properties of this material are its high chromium and medium nickel content making its resistance to oxidation, sulfidation and other forms of hot corrosion its main characteristics. Whilst retaining good strength when exposed to high temperatures, like most austenitic grades this grade will also maintain its strength and toughness at sub-zero temperatures. Overall this grade is an excellent choice for various applications ranging from furnace components to burner tips. 310 / 310S has a maximum dry air service temperature of 1100ºC.
Form of our 310S We can Supply
| * 310S Sheet | * 310S Plate | * 310S Round Bar | * 310S Wire | * 310S Tube & Pipe |
Nationwide Stainless are one of the UK’s largest independent Stockholders and Processors of grade 310 / 310S stainless steel (1.4845). With a large stock range and excellent processing capabilities we are able to supply most projects whether stock items or custom made products. We can offer; Stock size plate & sheet, Stock length round bar, Cut to size plate & sheet, Cut to length round bar, Cold forming of plate & sheet and round bar, And any other additional machining requirements that may be necessary. Please send any enquiries to wxsgms@hotmail.com
Applications of 310S Stainless Steel
| * Burners | * Burner Tips | * Brick Supports |
| * Jigs | * Tube Hangers | * Brick Shelf |
| * Heat Treatment Baskets | * Refractory Anchors | * Heat Exchangers |
| * Coal Gassifier Components | * Flare Tips | * Furnace Components |
| * Food Processing Equipment | * Bricking Plates | * Cement Kiln Components |
Corrosion Resistance of 310S Stainless Steel
310 / 310S stainless steel (1.4845) has excellent corrosion resistance at normal temperatures but is primarily designed to perform at high temperatures. In these high temperature environments, 310 / 310S (1.4845) maintains very good corrosion resistance and also has exceptional resistance to; oxidizing and carburizing atmospheres and other forms of hot corrosion, up to a maximum dry air service temperature of 1100ºC. Other corrosive compounds such as water and sulphur compounds will significantly reduce the maximum service temperature.
Typical Analysis of 310S Stainless Steel
| 310S | Cr% | Ni% | C% | Si% | Mn% | P% | S% | Mo% | Cu% | Fe% |
| MIN | 24.0 | 19.0 | - | - | - | - | - | - | - | - |
| MAX | 26.0 | 22.0 | 0.08 | 0.75 | 2.0 | 0.045 | 0.03 | 0.75 | 0.5 | Bal |
Mechanical Properties of 310S Stainless Steel
Properties quoted below are guideline figures only and should not be used for any design purposes
| Temperature ºC | 100 | 500 | 800 | 1000 | 1100 |
| UTS (Nmm²) | 600 | 475 | 215 | 85 | 45 |
| 0.2% (Nmm²) | 265 | 175 | 110 | ||
| Elongation % | 41 | 35 | 30 | 54 | 57 |
Related Specs & Trade Names
1.4845, Grade 310, Alloy 310S, AISI 310S, TYPE 310, UNS S31008, UNS S31000, X8CrNi25-21, EN10095, ASTM A276, 310H, 310 Stainless, T.310, 310S, 310, ss310, 310ss
Standard Size of our stainless steel flat bar
| Standard | ASTM A276-06 | |||||
| Size Specification | 3×20 | 5×40 | 8×20 | 10×60 | 15×50 | 20×60 |
| 3×25 | 5×50 | 8×25 | 10×80 | 15×60 | 20×80 | |
| 3×30 | 5×60 | 8×30 | 10×100 | 15×80 | 20×100 | |
| 3×40 | 5×80 | 8×40 | 12×20 | 15×100 | 25×40 | |
| 3×50 | 5×100 | 8×50 | 12×25 | 16×30 | 25×50 | |
| 4×20 | 6×20 | 8×60 | 12×30 | 16×40 | 25×60 | |
| 4×25 | 6×25 | 8×80 | 12×40 | 16×50 | 25×70 | |
| 4×30 | 6×30 | 8×100 | 12×50 | 16×60 | 25×100 | |
| 4×40 | 6×35 | 10×20 | 12×60 | 16×70 | 30×40 | |
| 4×50 | 6×40 | 10×25 | 12×80 | 16×80 | 30×50 | |
| 4×60 | 6×50 | 10×30 | 12×100 | 16×100 | 30×60 | |
| 5×20 | 6×60 | 10×35 | 15×20 | 20×30 | 30×80 | |
| 5×25 | 6×80 | 10×40 | 15×30 | 20×40 | 30×100 | |
| 5×30 | 6×100 | 10×50 | 15×40 | 20×50 | ||

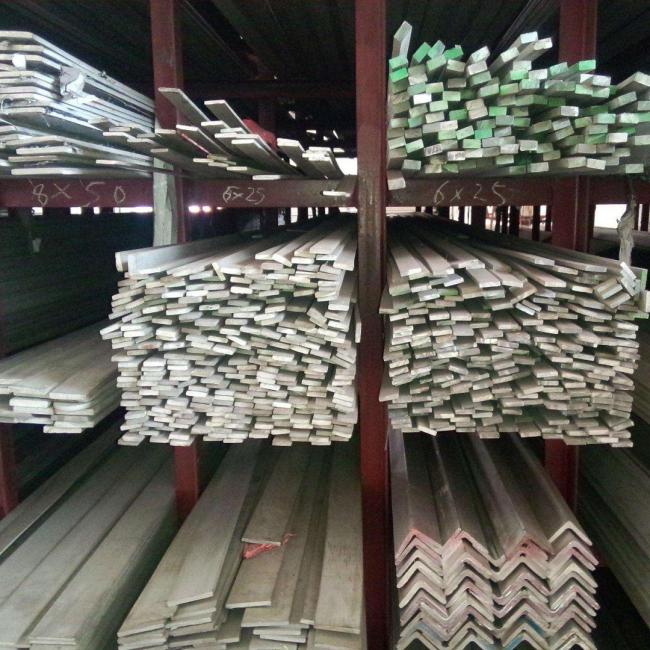

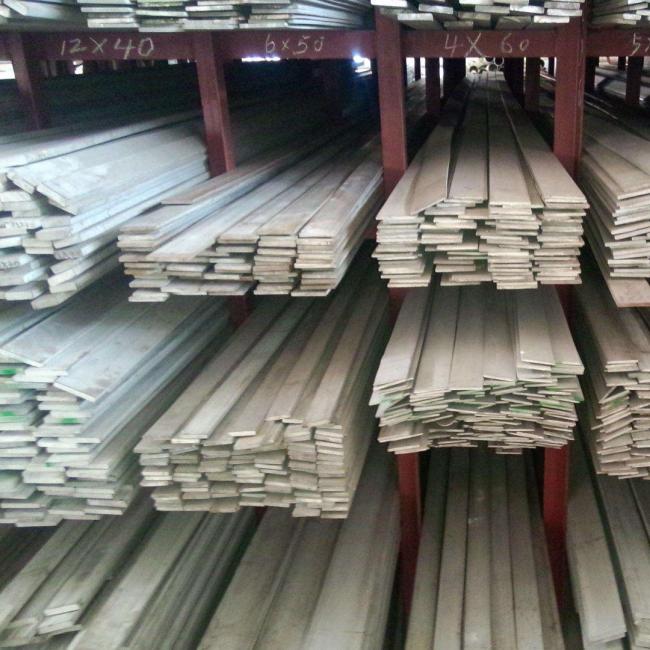

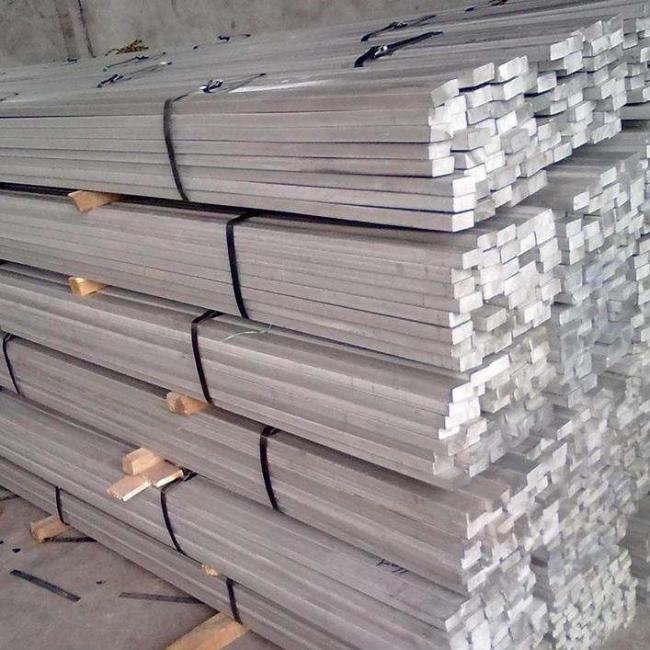

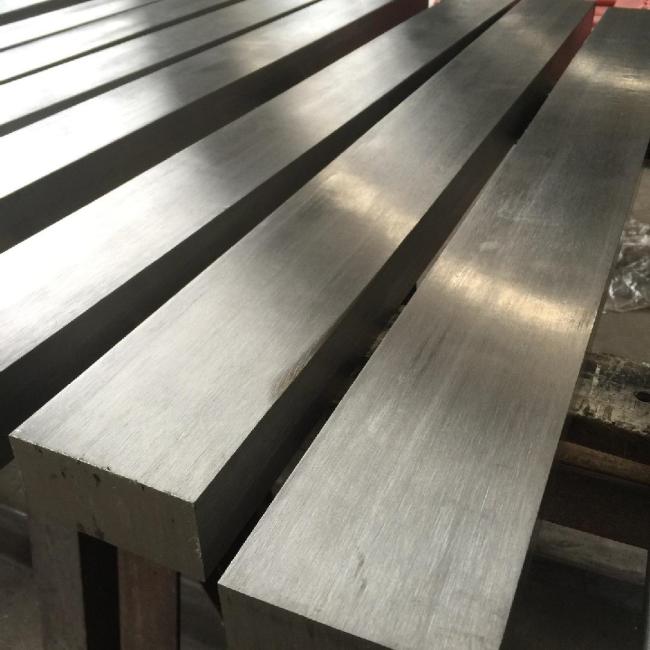

Our Stainless Steel Flat Bar Pictures
