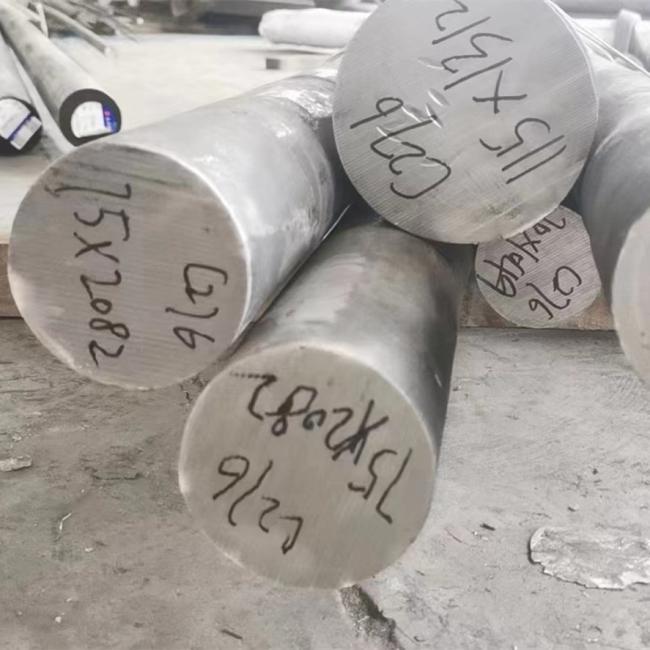

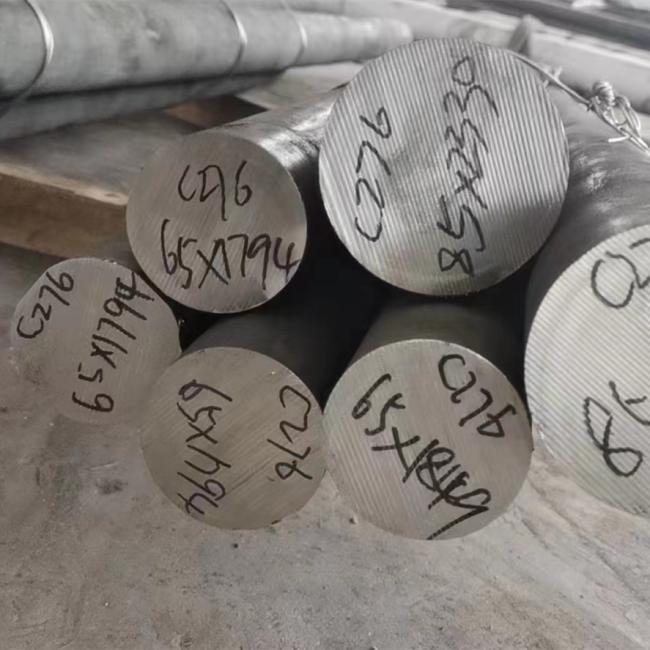

C276 Round Rod Hastelloy ASTM B574 UNS N10276 Annealed Straight Ends Bar
Stock Size Range and Specifications For ASTM B574 Hastelloy C276 Round Bar
Specification : EN, DIN, JIS, ASTM, BS, ASME, AISI
Standard Specification : ASTM B574 / ASME SB574
Size : 15NB to 150NB IN
Diameter : 3.17mm to 350mm diameter
Length : 100 mm to 3000 mm Long & Above
Tolerance : H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements
Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
Form : Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc
Surface : Hot Rolled Pickled or Sand Blasting Finished, Cold Drawn, Bright, Polished, Hairline
Condition : Cold Drawnd Pulished Cold Drawn Centreless Ground & Polished
Chemical Composition of Hastelloy C276 Round Bars
| Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
| C276 | 0.010 max | 1.00 max | 0.08 max | 0.03 max | 2.50 max | 50.99 min* | 14.50 – 16.50 | 4.00 – 7.00 | 15.00 – 17.00 | 0.04 max |
Mechanical Properties of Hastelloy C276 / N10276 / 2.4819 Round Bars
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Hastelloy C276 | 8.89 g/cm3 | 1370 °C (2500 °F) | Psi – 1,15,000 , MPa – 790 | Psi – 52,000 , MPa – 355 | 40 % |
Markings On The Hastelloy C276 Round Bar
The full identification of the bars should be continuously marked down its whole length, including :
- Rating Designation
- Material Designation
- "WP" in grade symbol
- Grade
- Schedule number or nominal wall thickness
- Heat Code
- Manufacturer’s Name or Symbol
ASTM B574 Hastelloy C276 Bars Application Industries
- Petrochemical Industry
- Chemical Industry
- Oil and Gas Industry
- Pulp & Paper Indusry
- Power Plant Industry
- Food Processing Industry
- Pharmaceuticals Industry
- Energy Industry
- Aerospace Industry
