Energy Saving LED SMD LED Bulbs E27 B22 For Residential Building / Home

Energy Saving LED SMD LED Bulbs E27 B22 For Residential Building / Home

• Energy-efficient:Up to 80% energy saving compared with ordinary incandescent bulbs .
• Long life:LED Bubls life time up to 50,000 hours, Ordinary incandescent lamp life over 1000 hours .
• Healthy Light: No UV radiation, mercury and other harmful substances, environmental protection .
• Protect eyesight:No flash,Bring a healthy and comfortable lighting environment .
• High Lumen&High CRI : CRI&RA>80 .
• The transparent cover:Light transmittance > 90%,Uniform light,No dark spot .
• LED Chips: 5630 SMD .
• The radiating body:Die casting aluminum,Hollow out design,High heat dissipation efficiency ,Surface coating,Anodic oxidation treatment,Corrosion resistance,Not easy to fade .
• Power:Open circuit, short circuit, overload, undervoltage protection, Longer life and consistently reliable performance .
• Testing and certification:EMC,2U+1000 Insulation test .
• lamp base selectable:E26,E27,E14,b22 .

Applications:

1. Residential Buildings,  Home

2. Office, Meeting Room

3. School, Library

4. Factory, Warehouse

5. Hotel

6. Parking Garage

7. Commercial Center

8. Supermarket, Shopping mall

Specifications:

Competitive advantages:

1. Unique Beautiful housing design.

2. Dimmable, constant and stable when dimming. Can be compatible with many dimmers.

3. This product adopts newest linear constant-current driver solution, which reduces power consumption effectively, operating temperature 20°C lower than

general led lights, realizing lifespan of over 50,000hrs.

4. Superior thermal performance, effectively reducing the light fades,prolong LED lifespan.

5. Precise CNC machining molding temperature, heat sink fins direction and processing size aerodynamic

design utilizing light body contact with air convection, increasing the runner flow, improve the efficiency of

cooling.

6. Milky optics PC cover extend the viewing angle over 120°,light transmission rate up to 92%.

7. Hight brightness LumenMax SMD LED. Aluminum PCB

8. Anti-creepage box, Fireproof grade UL94-V0, PBT Plastic.

9. Stainless base-nickel plated brass. Available in E26, E27, B22

10. Environmental Light. No hazard of mercury or lead entering the environment.
11. High efficiency, energy saving. Covert all electric energy into light energy, and it won’t make the files or

clothes fade.

12.No RF interference, no buzzing noise and no flickering.

Cautions:

1.Please read the product specification carefully first,confirm the practical environmental compliance conditions .

2.According to the rated power and the number of lamps ,calculate the total power use lamps , and design of distribution scheme .

3.Shut off the power before replacing the light .

4.Do not touch the light when it’s working .

5.Please check it before using, if there are any breakages, please notify your supplier .

6.Avoid installed in the heat source and thermal steam, corrosive gas, lest affect life span .

7.Installed in the no vibration, no swing, flat places without fire hidden danger, avoid falling from high altitude, the hard object collision, tapping .

8.It is prohibited to store and use in wet or high temperature or inflammable and explosive place .

9.Indoor use only .

Detail Pictures:

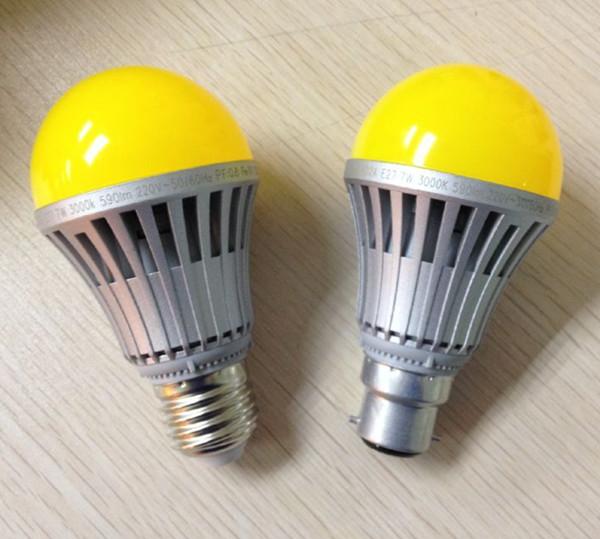

B22 E27 LAMP Holders optional

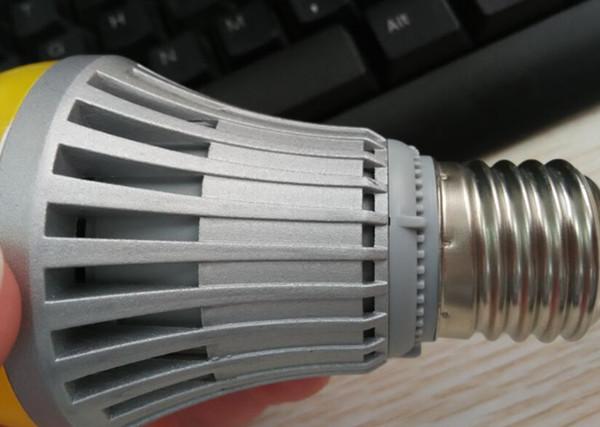

Die-casting Aluminum housing, Anti-glare, good heat sink.

Yellow Cover when light source Warm White
