NKX15 Thrust Ball Needle Roller Combined Thrust Bearings for CNC Machine
NKX15 Thrust Ball Needle Roller Combined Thrust Bearings for CNC Machine
Specifications
|
FSK BEARING Model Number |
NKX15 |
|
Part Name |
Needle Roller Bearings |
|
Brand |
INA / IKO / NSK / TIMKEN / FAG / FSK |
|
Seal Type |
Open |
|
Material |
Gcr15 Chrome Steel |
|
Precision Rating |
ABEC-1 to ABEC-9 |
| Vibration and Noise | Z0V0 / Z1V1 / Z2V2 / Z3V3 |
|
Dimensions(mm)(d*D*b) |
15 x 24 x 29.2mm |
|
Weight / Mass ( KG ) |
0.04kg |
|
HS Code |
8482800000 |

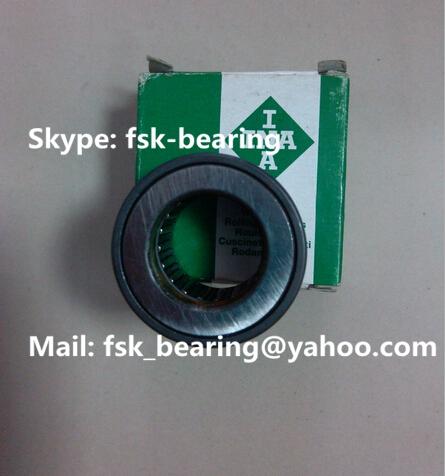

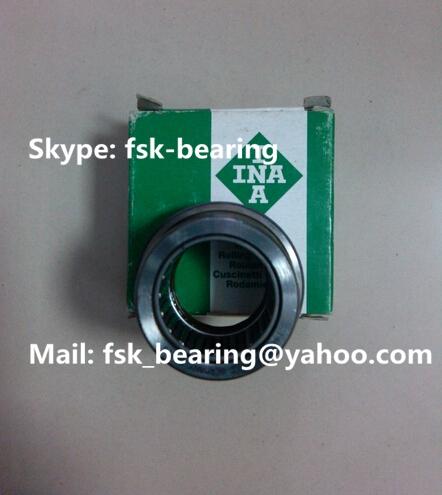

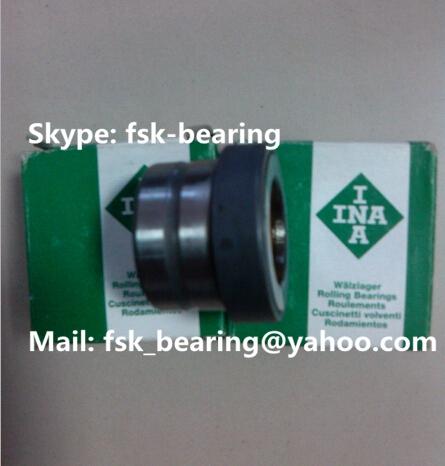

NKX15 Bearing Detailed Photo
Complement Bearing List:
| Combined needle roller/angular contact ball bearings-NX, NX...Z | |||||||
| Bearing No. | Mass | Dimension (mm) | |||||
| Oil | Grease | (g) | |||||
| NX 7 TN | NX 7 ZTN | 14 | 7 | 14 | 18 | 4.7 | 7 |
| NX 10 | NX 10 Z | 25 | 10 | 19 | 18 | 4.7 | 10 |
| NX 12 | NX 12 Z | 28 | 12 | 21 | 18 | 4.7 | 12 |
| NX 15 | NX 15 Z | 48 | 15 | 24 | 28 | 8 | 15 |
| NX 17 | NX 17 Z | 53 | 17 | 26 | 28 | 8 | 17 |
| NX 20 | NX 20 Z | 68 | 20 | 30 | 28 | 8 | 20 |
| NX 25 | NX 25 Z | 115 | 25 | 37 | 30 | 8 | 25 |
| NX 30 | NX 30 Z | 130 | 30 | 42 | 30 | 10 | 30 |
| NX 35 | NX 35 Z | 160 | 35 | 47 | 30 | 10 | 35 |
| Combined needle roller/thruCor ball bearings-NKX, NKX...Z | |||||||
| Bearing | Mass | Bearing | Mass | Dimension (mm) | |||
| No. | (g) | No. | (g) | Fw | D | D1 | D2 |
| NKX10 TN | 34 | NKX10 Z TN | 36 | 10 | 19 | 24.1 | 25.2 |
| NKX12 | 38 | NKX12Z | 40 | 12 | 21 | 26.1 | 27.2 |
| NKX15 | 44 | NKX15Z | 47 | 15 | 24 | 28.1 | 29.2 |
| NKX17 | 53 | NKX17Z | 55 | 17 | 26 | 30.1 | 31.2 |
| NKX20 | 83 | NKX20Z | 90 | 20 | 30 | 35.1 | 36.2 |
| NKX25 | 125 | NKX25Z | 132 | 25 | 37 | 42.1 | 43.2 |
| NKX30 | 141 | NKX30Z | 148 | 30 | 42 | 47.1 | 48.2 |
| NKX35 | 163 | NKX35Z | 168 | 35 | 47 | 52.1 | 53.2 |
| NKX40 | 200 | NKX40Z | 208 | 40 | 52 | 60.1 | 61.2 |
| NKX45 | 252 | NKX45Z | 265 | 45 | 58 | 65.2 | 66.5 |
| NKX50 | 280 | NKX50Z | 300 | 50 | 62 | 70.2 | 71.5 |
| NKX60 | 360 | NKX60Z | 380 | 60 | 72 | 85.2 | 86.5 |
| NKX70 | 500 | NKX70Z | 520 | 70 | 85 | 95.2 | 96.5 |
Description
- High quality, competitive price .
- Original INA same bearing and same packing , same label and same barcode.
- High-end producing line and testing.
- Professional team and service.
- / FAG/ INA/ TIMKEN / NSK / KOYO / NTN / NACHI / IKO/ RHP/ ASAHI/ IZWZ / HRB /LYC can be offered.
FSK Advantage
- 10 years manufacture experiences
- Secure Ordering
- Delivery Date Guarantee
- 100% Low Price Guaranteed
Established in 2005, FSK has grown to be one of the main professional providers for bearings all over the world . We take pride in every single product that we sell .Our bearings are in hot sale with better quality and low pricing. You can be relieved and trusting us for our professional bearing technology and service , our friendly English-speaking team is always ready to help you out with importing procedures, product questions and technical support. And we promise to make you or your client proud with our products and services.
Below are some detailed pictures for your reference
