33016 / Q Tapered Roller Bearing Gcr15SiMn Carbon Steel Roller Bearing Single Row

Price Negotiable

Price: 0.1-100USD

MOQ: 1 pcs

Delivery Time: 3-5Days After Details Confirmed

Brand: TIMKEN / FAG / FSK / KOYO / NSK / NTN / OEM

Product Description

33016 / Q Tapered Roller Bearing Gcr15SiMn Carbon Steel Roller Bearing Single Row

Bearing Specification :

FSK Bearing Model Number	33016 /Q
Part Name	Tapered Roller Bearings
Brand	TIMKEN / FAG / FSK / KOYO / NSK / NTN / OEM
Precision Rating	ABEC-1 , ABEC-3 , ABEC-5 , ABEC-7 , ABEC-9
Material	Chrome Steel
Applicaton	Auto, Rolling mill, Mine, Metallurgy, Plasticmachine
Number of Row	Single Row
Cage	Steel Cage
*Dimensions(mm)(dDb)*	80mm × 125mm × 173mm
Weight / Mass ( KG )	1.63kg
HS Code	8482800000
Original Country Show	CHINA

Taper Roller Bearings List:

Bearing Number		Boundary Dimensions(mm)					R	R1	Cr	Cor	a	Mass
Bearing Number		d	D	T	B	C	R	R1	(KN)	(KN)	(mm)	(Kg)
33005	3007105	25	47	17	17	14	0.6	0.6	32.5	42.5	11.1	0.129
33006	3007106	30	55	20	20	16	1	1	43.7	58.8	12.8	0.201
33007	3007107	35	62	21	21	17	1	1	46.9	63.3	13.5	0.254
33008	3007108	40	68	22	22	18	1	1	60.2	79.6	14.1	0.306
33009	3007109	45	75	24	24	19	1	1	72.6	100.4	15.9	0.398
33010	3007110	50	80	24	24	19	1	1	76.8	110.9	17	0.433
33011	3007111	55	90	27	27	21	1.5	1.5	94.9	144.7	19	0.651
33012	3007112	60	95	27	27	21	1.5	1.5	96.7	151.1	19.8	0.691
33013	3007113	65	100	27	27	21	1.5	1.5	98.1	157.7	20.9	0.732
33014	3007114	70	110	31	31	25.5	1.5	1.5	134.4	220.4	22	1.07
33015	3007115	75	115	31	31	25.5	1.5	1.5	133.1	221.2	22.8	1.12
33016	3007116	80	125	36	36	29.5	1.5	1.5	181.9	304.3	25.2	1.63
33017	3007117	85	130	36	36	29.5	1.5	1.5	180.4	305.5	26.2	1.69
33018	3007118	90	140	39	39	32.5	2	1.5	232.6	388.6	27.6	2.2
33019	3007119	95	145	39	39	32.5	2	1.5	231	389.9	28.4	2.26
33020	3007120	100	150	39	39	32.5	2	1.5	229.5	391.2	29.1	2.33
33021	3007121	105	160	43	43	34	2.5	2	257.4	437.4	30.8	2.97
33022	3007122	110	170	47	47	37	2.5	2	288.7	502.7	33.2	3.74
33108	3007708	40	75	26	26	20.5	1.5	1.5	84.7	110.3	18	0.496
33109	3007709	45	80	26	26	20.5	1.5	1.5	87.1	117.2	19.14	0.535
33110	3007710	50	85	26	26	20	1.5	1.5	89.3	124.1	20.4	0.572
33111	3007711	55	95	30	30	23	1.5	1.5	114.5	164.8	21.9	0.843
33112	3007712	60	100	30	30	23	1.5	1.5	117.1	173.2	23.1	0.895
33113	3007713	65	110	34	34	26.5	1.5	1.5	142.8	220.4	26	1.3
33114	3007714	70	120	37	37	29	2	1.5	172.1	267	28.2	1.7
33115	3007715	75	125	37	37	29	2	1.5	176.1	279.6	29.4	1.78
33116	3007716	80	130	37	37	29	2	1.5	179.6	292.3	30.7	1.87
33117	3007717	85	140	41	41	32	2.5	2.5	215.7	354.2	33.14	2.43
33118	3007718	90	150	45	45	35	2.5	2.5	252.1	414.7	34.9	3.13
33119	3007719	95	160	49	49	38	2.5	2.5	298.9	498.2	37.3	3.94
33120	3007720	100	165	52	52	40	2.5	2.5	309.4	529.2	40.3	4.31
33121	3007721	105	175	56	56	44	2.5	2	351.8	607.8	42.9	5.29
33122	3007722	110	180	56	56	43	2.5	2.5	373.2	639.1	44	5.5
33124	3007724	120	200	62	62	48	2.5	2.5	448.2	779.1	47.6	7.68
33205	3007205	25	52	22	22	18	1	1	47.1	55.8	14	0.216
33206	3007206	30	62	25	25	19.5	1	1	63.8	75.4	15.74	0.342
33207	3007207	35	72	28	28	22	1.5	1.5	82.6	101.7	18.2	0.515
33208	3007208	40	80	32	32	25	1.5	1.5	105.8	135.5	20.8	0.715
33209	3007209	45	85	32	32	25	1.5	1.5	109.5	145.1	21.9	0.771
33210	3007210	50	90	32	32	24.5	1.5	1.5	112.9	154.6	23.2	0.825
33211	3007211	55	100	35	35	27	2	1.5	143.1	196.7	25.1	1.15
33212	3007212	60	110	38	38	29	2	1.5	165.8	231.4	27.5	1.51
33213	3007213	65	120	41	41	32	2	1.5	202.2	281.6	29.5	1.99
33214	3007214	70	125	41	41	32	2	1.5	208.6	298.3	30.7	2.1
33215	3007215	75	130	41	41	31	2	1.5	207.1	299.7	31.9	2.17
33216	3007216	80	140	46	46	35	2.5	2	245.7	361.8	35.1	2.83
33217	3007217	85	150	49	49	37	2.5	2	281.7	415.7	36.9	3.52
33218	3007218	90	160	55	55	42	2.5	2	330.6	499.7	40.8	4.55
33219	3007219	95	170	58	58	44	3	2.5	377.4	568.4	42.7	5.48
33220	3007220	100	180	63	63	48	3	2.5	436.5	666.2	45.5	6.71
33221	3007221	105	190	68	68	52	3	2.5	497.8	770.5	48.6	8.12

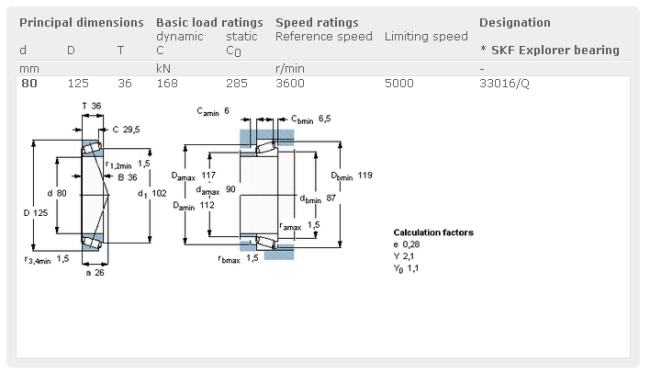

Bearing Specification and Drawing

Bearings Detailed Pictures :

Urgently Need 33016 /Q Gcr15SiMn Carbon Steel OEM Brands Large Stock, Get Cheap Price from China Tapered Roller Bearing Factory Now !
