33262 / 33462 Roller Bearing Auto Truck Bearing 66.675mm x 117.475mm x 30.162mm
33262 / 33462 Roller Bearing Auto Truck Bearing 66.675mm x 117.475mm x 30.162mm
Bearing Specification :
|
Model Number |
33262/33462 |
|
Part Name |
Tapered Roller Bearings |
|
Brand |
FSK / FAG / TIMKEN / NTN / NSK / KOYO / OEM |
|
Precision Rating |
ABEC-1 to ABEC-9 |
| Material | Gcr15 |
| Applicaton | Engineering Machinery |
| Number of Row | Single Row |
| Cage | Steel Cage / Nylon Cage / Brass Cage |
|
Dimensions(mm)(d*D*b) |
66.675mm x 117.475mm x 30.162mm |
|
Weight / Mass ( KG ) |
1.346kg |
|
HS Code |
8482200000 |
| Original Country Show | CHINA |
Taper Roller Bearings List:
| Bearing No. | Boundary dimensions(mm) | Load ratings(kN) | Limiting speeds(RPM) | |||||||
| d | D | T | B | r(min) | r1(min) | Cr | C0r | Grease lub. | Oil lub | |
| JH211749A/10 | 65 | 120 | 39 | 38.5 | 7.1 | 2.8 | 189 | 255 | 3200 | 4300 |
| 6379/20 | 65.088 | 135.755 | 53.975 | 56.007 | 3.6 | 3.2 | 266 | 357 | 3000 | 4000 |
| H715340/11 | 65.088 | 136.525 | 46.038 | 46.038 | 3.6 | 3.2 | 231 | 369 | 2800 | 3700 |
| 5595R/35 | 65.883 | 122.238 | 43.658 | 43.764 | 3.6 | 3.2 | 221 | 318 | 3200 | 4300 |
| 395A/394A | 66.675 | 110 | 22 | 21.996 | 0.8 | 1.2 | 86.4 | 116 | 3400 | 4500 |
| 395S/394A | 66.675 | 110 | 22 | 21.996 | 3.6 | 1.2 | 86.4 | 116 | 3400 | 4500 |
| 3984/25 | 66.675 | 112.712 | 30.162 | 30.048 | 3.6 | 0.8 | 111 | 164 | 3400 | 4500 |
| 39590/20 | 66.675 | 112.712 | 30.162 | 30.162 | 3.6 | 3.2 | 147 | 207 | 3300 | 4500 |
| 39590/21 | 66.675 | 112.712 | 30.162 | 30.162 | 3.6 | 0.8 | 147 | 207 | 3300 | 4500 |
| 33262/462 | 66.675 | 117.475 | 30.162 | 30.162 | 3.6 | 3.2 | 118 | 179 | 3200 | 4200 |
| HM212049/10 | 66.675 | 122.238 | 38.1 | 38.354 | 3.6 | 1.6 | 191 | 249 | 3200 | 4300 |
| HM813844/11 | 66.675 | 127 | 36.512 | 36.512 | 3.6 | 1.6 | 166 | 235 | 3000 | 4000 |
| 641/633 | 66.675 | 130.175 | 41.275 | 41.275 | 3.6 | 3.2 | 197 | 267 | 3000 | 3900 |
| 6386/20 | 66.675 | 135.755 | 53.975 | 56.007 | 4.3 | 3.2 | 266 | 357 | 3000 | 4000 |

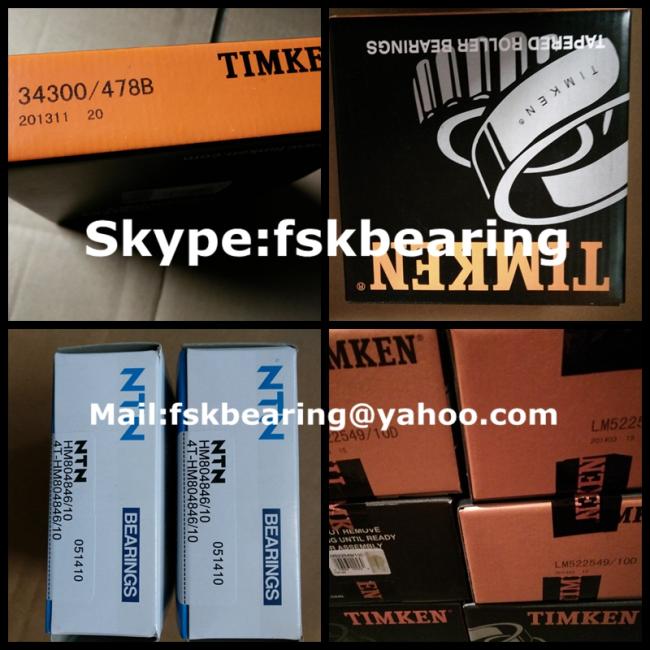

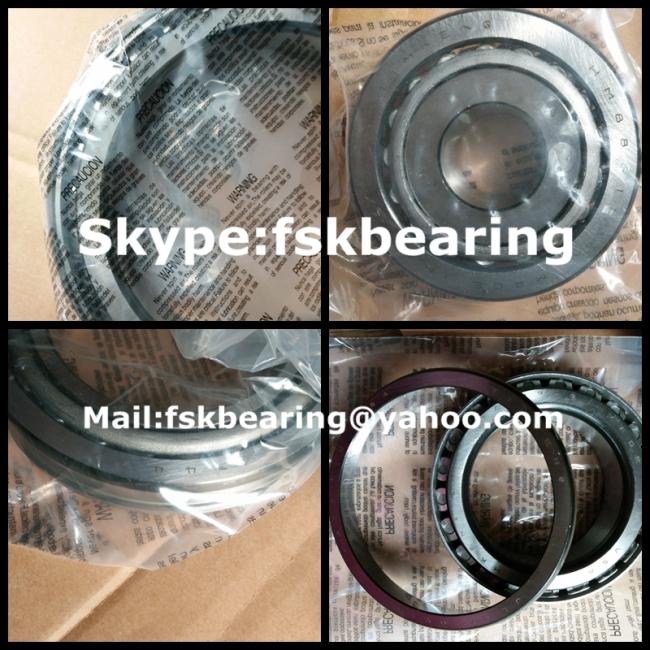

Bearings Detailed Pictures :
33262/33462 Inch Size Roller Bearing Auto Truck Bearing 66.675mm x 117.475mm x 30.162mm, Get Cheap Price from China Tapered Roller Bearing Factory Now !
