6307 2z C3 Small Deep Groove Ball Bearing V3 V2 Great Endurance
6307 2z C3 Small Deep Groove Ball Bearing V3 V2 Great Endurance

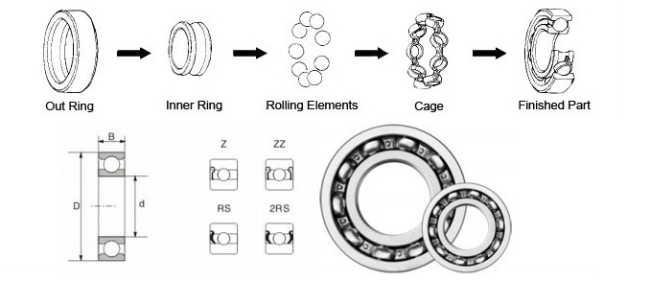

About Deep Groove Ball Bearings
Bearing Specification :
|
Model Number |
6307 2Z |
|
Part Name |
Deep Groove Ball Bearings |
|
Brand |
FSK / FAG / TIMKE / NTN / NSK / KOYO / OEM |
|
Precision Rating |
ABEC-1 to ABEC-9 |
| Vibration and Noise | Z0V0 / Z1V1 / Z2V2 / Z3V3 |
| Material | Gcr15 Chrome Steel |
| Number of Row | Single Row |
| Cage | Steel Cage |
|
Dimensions(mm)(d*D*b) |
35mm × 80mm × 21mm |
|
Weight / Mass ( KG ) |
0.457kg |
|
HS Code |
8482102000 |
| Original Country Show | China |

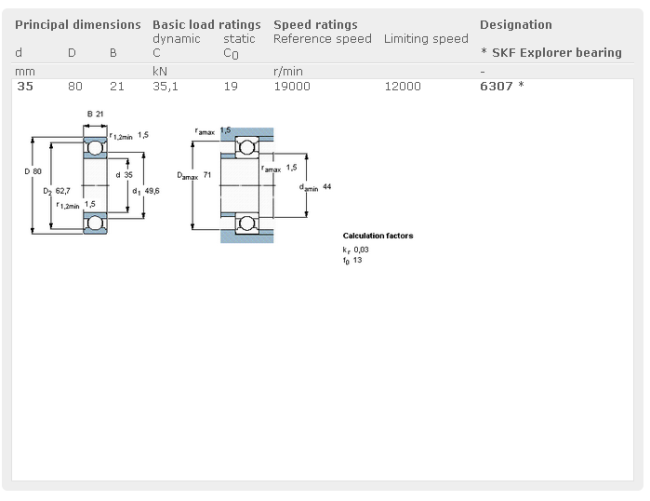

Bearing Drawing :

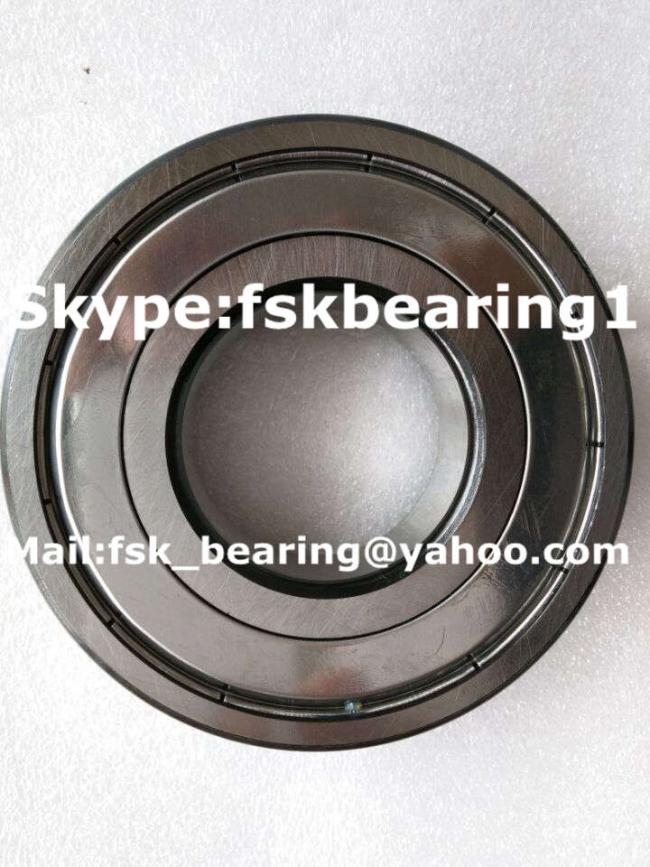

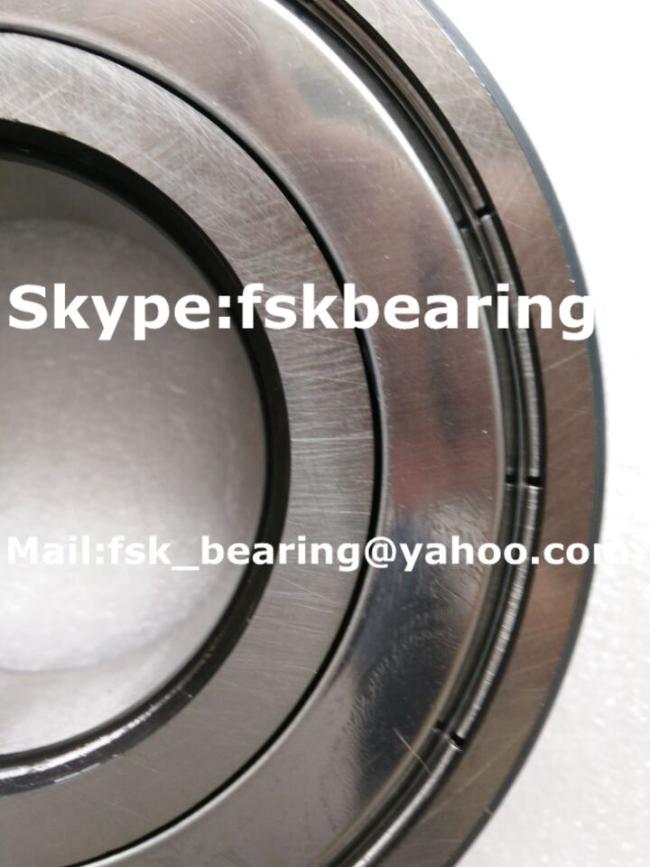

Bearings Detailed Pictures :
Deep Groove Ball Bearings List:
6200 Series
| N0. |
Bore |
O.D | Width | Chamfer | Load Rating | Maximuum Seed | Weight | ||
|
mm |
mm | mm | mm |
Dynamic Cr |
Static Cor |
Grease r/min |
Oil r/min |
Kg/pcs | |
| 624 | 4 | 13 | 5 | 0.2 | 1.15 | 0.4 | 36000 | 45000 | 0.0032 |
| 625 | 5 | 16 | 5 | 0.3 | 1.76 | 0.680 | 32000 | 40000 | 0.0050 |
| 626 | 6 | 19 | 6 | 0.3 | 2.34 | 0.885 | 28000 | 36000 | 0.0080 |
| 627 | 7 | 22 | 7 | 0.3 | 3.35 | 1.400 | 26000 | 34000 | 0.0130 |
| 628 | 8 | 24 | 8 | 0.3 | 4.00 | 1.590 | 24000 | 32000 | 0.0170 |
| 629 | 9 | 26 | 8 | 0.3 | 4.55 | 1.960 | 22000 | 30000 | 0.0190 |
| 6200 | 10 | 30 | 9 | 0.6 | 5.10 | 2.390 | 19000 | 26000 | 0.0300 |
| 6201 | 12 | 32 | 10 | 0.6 | 6.10 | 2.750 | 18000 | 24000 | 0.0360 |
| 6202 | 15 | 35 | 11 | 0.6 | 7.75 | 3.600 | 17000 | 22000 | 0.0460 |
| 6203 | 17 | 40 | 12 | 0.6 | 9.60 | 4.600 | 16000 | 20000 | 0.0650 |
| 6204 | 20 | 47 | 14 | 1.0 | 12.80 | 6.650 | 14000 | 18000 | 0.1070 |
| 6205 | 25 | 52 | 15 | 1.0 | 14.00 | 7.850 | 12000 | 16000 | 0.1250 |
| 6206 | 30 | 62 | 16 | 1.0 | 19.50 | 11.300 | 10000 | 13000 | 0.2010 |
6300 Series
|
N0.
|
Bore |
O.D | Width | Chamfer | Load Rating | Maximuum Seed | Weight | ||
|
mm |
mm | mm | mm |
Dynamic Cr |
Static Cor |
Grease r/min |
Oil r/min |
Kg/pcs | |
| 6300 |
10 |
35 | 11 | 0.6 |
8.2 |
3.5 |
18000 |
24000 |
0.053 |
| 6301 | 12 | 37 | 12 | 1.0 | 9.7 | 4.2 | 17000 | 22000 | 0.06 |
| 6302 | 15 | 42 | 13 | 1.0 | 11.4 | 5.45 | 16000 | 20000 | 0.082 |
| 6303 | 17 | 47 | 14 | 1.0 | 13.5 | 6.55 | 15000 | 19000 | 0.115 |
| 6304 | 20 | 52 | 15 | 1.1 | 15.9 | 7.9 | 14000 | 17000 | 0.144 |
Double Sealed 6307 2Z C3 Deep Groove Ball Bearing V3 V2 Small Bearing, Get Cheap Price from China Ball Bearing Factory Now !
