ABEC-5 6205-2NSE9 NACHI Deep Groove Ball Bearing Double Seal
Price:
Low Price
MOQ:
1 pcs
Delivery Time:
7Days After Order Confirmed
Brand:
NACHI / NSK / / FAG / NTN / KOYO / FSK / OEM
Product Description
ABEC-5 6205-2NSE9 NACHI Deep Groove Ball Bearing Double Seal
6802ZZ Bearing Specification
Bearing No. : 6205-2NSE9
Seal Type: Rubber Seal
Mass: 0.128KG
Dynamic load rating Cr: 1.59KN
Static load rating Cor: 0.98KN
dimensions: 25*52*15mm
Inner Diameter: 25mm
Outer Diameter: 52mm
Width: 15mm

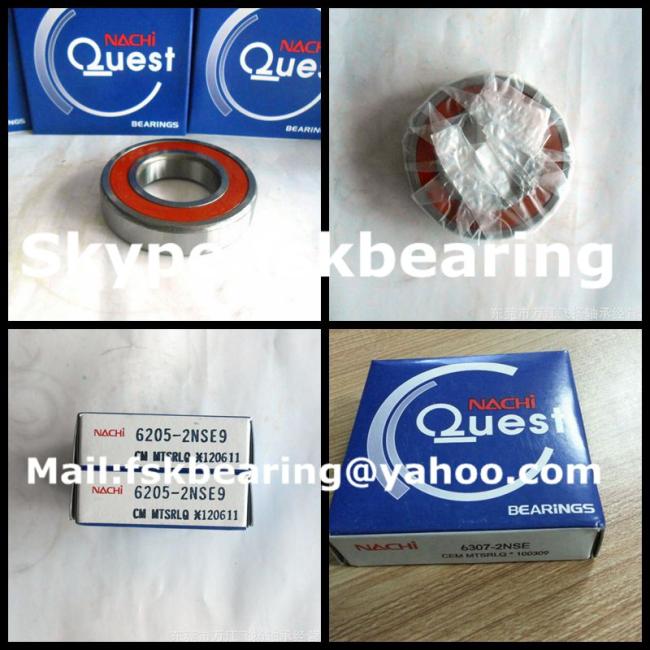

Bearings Detailed Pictures
NACHI Deep Groove Ball Bearings List
| Specification (mm) | Bearing No. | Mass (kg) | |||||||||
| d | D | B | r | ||||||||
| (min) | |||||||||||
| 10 | 19 | 5 | 0.3 | 6800 | 6800Z | 6800ZZ | - | - | - | - | 0.005 |
| 17 | 30 | 7 | 0.3 | 6903 | 6903ZE | 6903ZZE | 6903NSE | 6903-2NSE | 6903NKE | 6903-2NKE | 0.018 |
| 17 | 35 | 8 | 0.3 | 16003 | - | - | - | - | - | - | 0.032 |
| 17 | 35 | 10 | 0.3 | 6003 | 6003ZE | 6003ZZE | 6003NSE | 6003-2NSE | 6003NKE | 6003-2NKE | 0.039 |
| 17 | 40 | 12 | 0.6 | 6203 | 6203ZE | 6203ZZE | 6203NSE | 6203-2NSE | 6203NKE | 6203-2NKE | 0.065 |
| 17 | 47 | 14 | 1 | 6303 | 6303ZE | 6303ZZE | 6303NSE | 6303-2NSE | 6303NKE | 6303-2NKE | 0.115 |
| 20 | 4 | 14 | 1 | 6204 | 6204ZE | 6204ZZE | 6204NSE | 6204-2NSE | 6204NKE | 6204-2NKE | 0.106 |
| 20 | 32 | 7 | 0.3 | 6804 | 6804ZE | 6804ZZE | 6804NSE | 6804-2NSE | 6804NKE | 6804-2NKE | 0.019 |
| 20 | 37 | 9 | 0.3 | 6904 | 6904ZE | 6904ZZE | 6904NSE | 6904-2NSE | 6904NKE | 6904-2NKE | 0.036 |
| 20 | 42 | 8 | 0.3 | 16004 | - | - | - | - | - | - | 0.05 |
| 20 | 42 | 12 | 0.6 | 6004 | 6004ZE | 6004ZZE | 6004NSE | 6004-2NSE | 6004NKE | 6004-2NKE | 0.07 |
| 20 | 52 | 15 | 1.1 | 6304 | 6304ZE | 6304ZZE | 6304NSE | 6304-2NSE | 6304NKE | 6304-2NKE | 0.144 |
| 22 | 50 | 14 | 1 | 62/22 | 62/22ZE | 62/22ZZE | 62/22NSE | 62/22-2NSE | 62/22NKE | 62/22-2NKE | 0.12 |
| 22 | 56 | 16 | 1.1 | 63/22 | 63/22ZE | 63/22ZZE | 63/22NSE | 63/22-2NSE | 63/22NKE | 63/22-2NKE | 0.176 |
| 25 | 37 | 7 | 0.3 | 6805 | 6805ZE | 6805ZZE | 6805NSE | 6805-2NSE | 6805NKE | 6805-2NKE | 0.022 |
| 25 | 42 | 9 | 0.3 | 6905 | 6905ZE | 6905ZZE | 6905NSE | 6905-2NSE | 6905NKE | 6905-2NKE | 0.042 |
| 25 | 47 | 8 | 0.3 | 16005 | - | - | - | - | - | - | 0.06 |
| 25 | 47 | 12 | 0.6 | 6005 | 6005ZE | 6005ZZE | 6005NSE | 6005-2NSE | 6005NKE | 6005-2NKE | 0.079 |
| 25 | 52 | 15 | 1 | 6205 | 6205ZE | 6205ZZE | 6205NSE | 6205-2NSE | 6205NKE | 6205-2NKE | 0.128 |
| 25 | 62 | 17 | 1.1 | 6305 | 6305ZE | 6305ZZE | 6305NSE | 6305-2NSE | 6305NKE | 6305-2NKE | 0.232 |
| 28 | 58 | 16 | 1 | 62/28 | 62/28ZE | 62/28ZZE | 62/28NSE | 62/28-2NSE | 62/28NKE | 62/28-2NKE | 0.175 |
| 28 | 68 | 18 | 1.1 | 63/28 | 63/28ZE | 63/28ZZE | 63/28NSE | 63/28-2NSE | 63/28NKE | 63/28-2NKE | 0.287 |
| 30 | 42 | 7 | 0.3 | 6806 | 6806ZE | 6806ZZE | 6806NSE | 6806-2NSE | 6806NKE | 6806-2NKE | 0.026 |
| 30 | 47 | 9 | 0.3 | 6906 | 6906ZE | 6906ZZE | 6906NSE | 6906-2NSE | 6906NKE | 6906-2NKE | 0.045 |
| 30 | 55 | 9 | 0.3 | 16006 | - | - | - | - | - | - | 0.085 |
| 30 | 55 | 13 | 1 | 6006 | 6006ZE | 6006ZZE | 6006NSE | 6006-2NSE | 6006NKE | 6006-2NKE | 0.117 |
| 30 | 62 | 16 | 1 | 6206 | 6206ZE | 6206ZZE | 6206NSE | 6206-2NSE | 6206NKE | 6206-2NKE | 0.199 |
| 30 | 72 | 19 | 1.1 | 6306 | 6306ZE | 6306ZZE | 6306NSE | 6306-2NSE | 6306NKE | 6306-2NKE | 0.346 |
| 32 | 65 | 17 | 1 | 62/32 | 62/32ZE | 62/32ZZE | 62/32NSE | 62/32-2NSE | 62/32NKE | 62/32-2NKE | 0.23 |
| 32 | 75 | 20 | 1.1 | 63/32 | 63/32ZE | 63/32ZZE | 63/32NSE | 63/32-2NSE | 63/32NKE | 63/32-2NKE | 0.382 |
| 35 | 47 | 7 | 0.3 | 6807 | 6807ZE | 6807ZZE | 6807NSE | 6807-2NSE | 6807NKE | 6807-2NKE | 0.029 |
ABEC-5 6205-2NSE9 NACHI Deep Groove Ball Bearing Double Seal , Get Cheap Price from China Ball Bearing Factory Now !
