Steel Cage Angular Contact Ball Bearing 3308 ATN9 40mm x 90mm x 36.5mm

Price Negotiable

Price: 0.1-100USD

MOQ: 1 pcs

Delivery Time: 3-5Days After Details Confirmed

Brand: FSK / FAG / NSK / NTN / KOYO / NACHI / OEM

Product Description

Steel Cage Angular Contact Ball Bearing 3308ATN9 40mm x 90mm x 36.5mm

Bearing Specification :

Model Number	3308 ATN9
Part Name	Angular Contact Ball Bearing
Brand	FSK / FAG / NSK / NTN / KOYO / NACHI / OEM
Precision Rating	P1 to P9
Material	Gcr15
Number of Row	Double Row
Cage	Steel Cage / Brass Cage
*Dimensions(mm)(dDb)*	40mm x 90mm x 36.5mm
Weight / Mass ( KG )	1.05kg
HS Code	8482103000
Original Country Show	CHINA

Angular Contact Bearing List:

Bearing No.	d	D	B	C	C0	Pu
Bearing No.	mm			kN		kN	r/min		kg
3208 A	40	80	30,2	47,5	34	1,43	8000	8000	0,58
3208 A-2RS1/MT33	40	80	30,2	47,5	34	1,43	-	5600	0,57
3208 A-2RS1TN9/MT33	40	80	30,2	47,5	34	1,43	-	5600	0,57
3208 A-2Z/MT33	40	80	30,2	47,5	34	1,43	8000	8000	0,57
3208 A-2ZTN9/MT33	40	80	30,2	47,5	34	1,43	8000	8000	0,57
3208 ATN9	40	80	30,2	47,5	34	1,43	8000	8000	0,58
3308 A	40	90	36,5	64	44	1,86	7500	7500	1,05
3308 A-2RS1TN9/MT33	40	90	36,5	64	44	1,86	-	5000	0,93
3308 A-2Z/MT33	40	90	36,5	64	44	1,86	7500	7500	0,93
3308 A-2ZTN9/MT33	40	90	36,5	64	44	1,86	7500	7500	0,93
3308 ATN9	40	90	36,5	64	44	1,86	7500	7500	1,05
3308 DMA	40	90	36,5	68,9	64	2,45	6700	7000	1,15
3308 DNRCBM	40	90	36,5	49,4	41,5	1,76	6700	7000	1,20
3308 DTN9	40	90	36,5	68,9	64	2,45	6700	7000	1,05

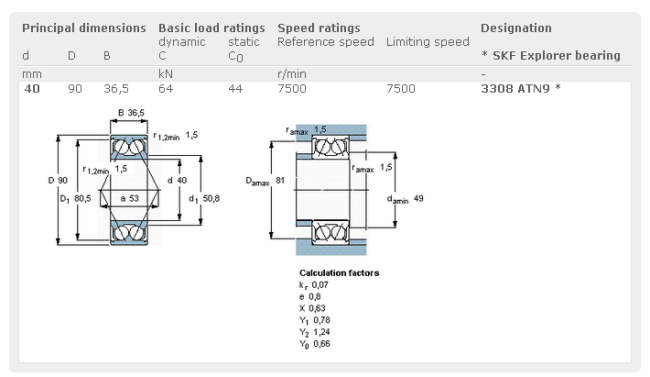

Drawing and Specification

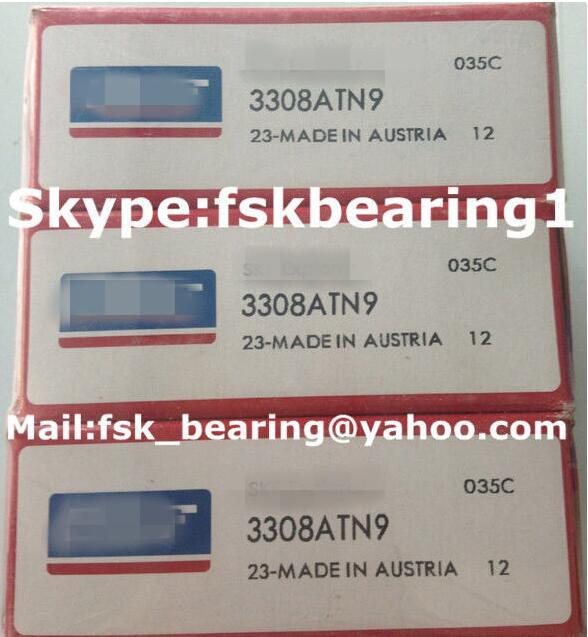

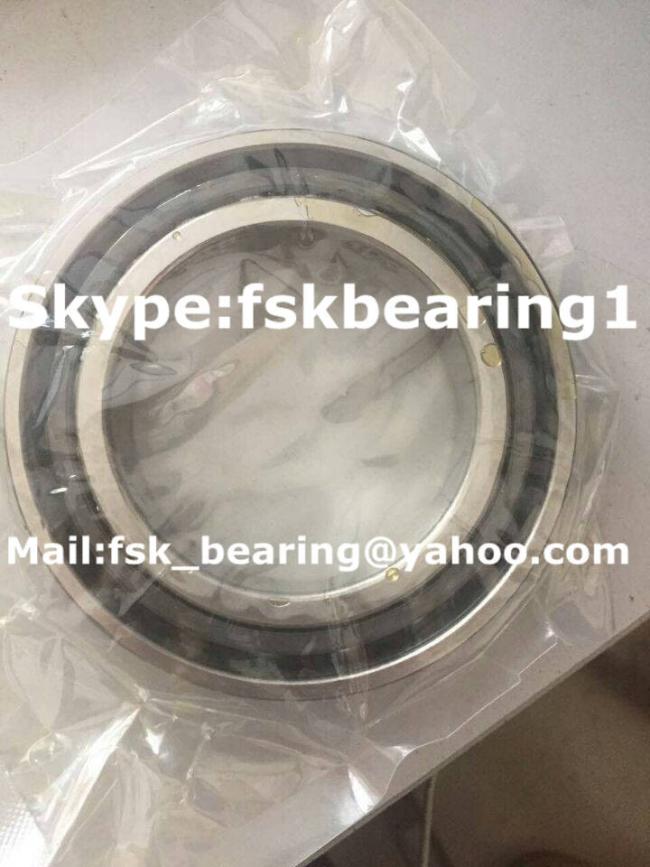

Bearings Detailed Pictures :

Steel Cage Angular Contact Ball Bearing 3308ATN9 40mm x 90mm x 36.5mm, Get Cheap Price from China Angular Contact Ball Bearing Factory Now !
