608 ZZ Double Shielded Miniature Ball Bearing for Skateborad 8mm x 22mm x 7mm
608 ZZ Double Shielded Miniature Ball Bearing for Skateborad 8mm x 22mm x 7mm
Bearing Specification :
|
Model Number |
608 ZZ |
|
Part Name |
Deep Groove Ball Bearings |
|
Brand |
FSK / NSK / NACHI / KOYO / NTN / FAG / OEM |
|
Precision Rating |
ABEC-1 to ABEC-9 |
| Vibration and Noise | Z0V0 / Z1V1 / Z2V2 / Z3V3 |
| Material | Gcr15 Chrome, Steel Carbon steel, Stainless steel |
| Number of Row | Single Row |
| Cage | Steel Cage / Nylon Cage |
|
Dimensions(mm)(d*D*b) |
8mm x 22mm x 7mm |
|
Weight / Mass ( KG ) |
0.011kg |
|
HS Code |
8482102000 |
| Original Country Show | FRANCE |

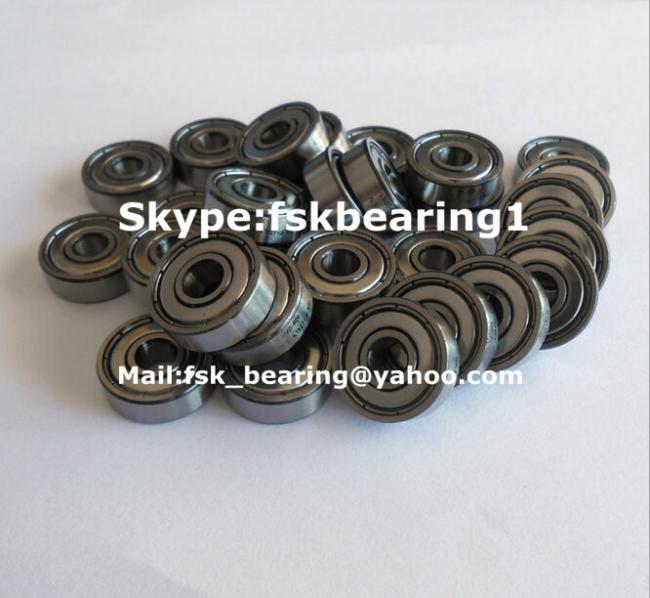

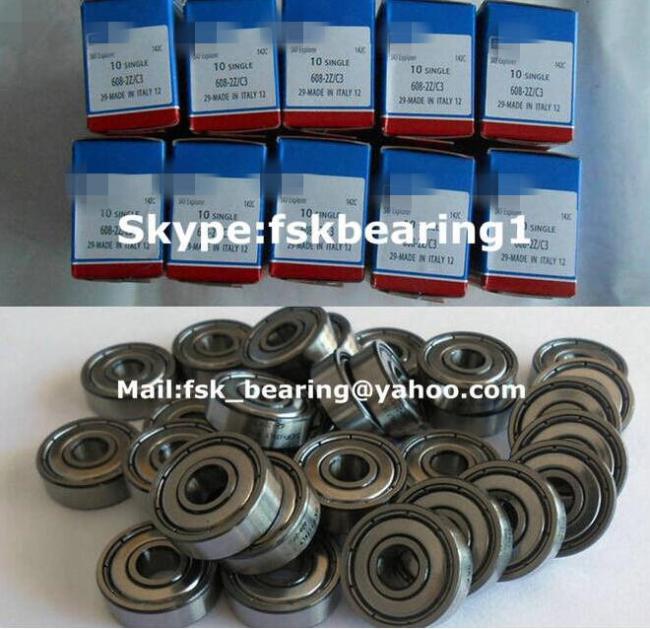

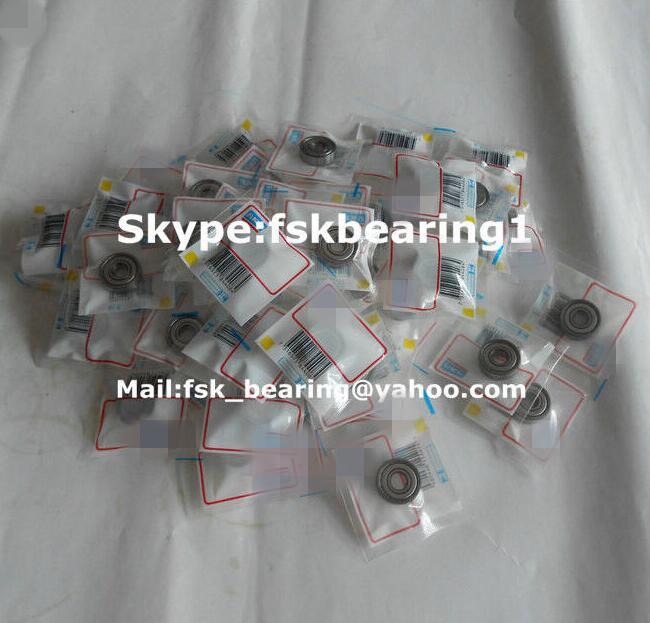

Bearings Detailed Pictures :
Deep Groove Ball Bearings List:
| Item No. | Boundary Dimensions(mm) | Basic load ratings(Lbf) | Weight(Lb.) | ||||
| d | D | B | Dynamic | Static | |||
| OPEN | ZZ/2RS | Cr | Cor | ||||
| 603 | 3 | 9 | 3 | 5 | 128.14 | 35.97 | 0.00198 |
| 604 | 4 | 12 | 4 | 4 | 218.06 | 80.93 | 0.00462 |
| 605 | 5 | 14 | 5 | 5 | 292.25 | 110.16 | 0.0077 |
| 606 | 6 | 17 | 6 | 6 | 508.07 | 166.36 | 0.01276 |
| 607 | 7 | 19 | 6 | 6 | 526.05 | 200.08 | 0.01672 |
| 608 | 8 | 22 | 7 | 7 | 741.87 | 303.49 | 0.0264 |
| 609 | 9 | 24 | 7 | 7 | 764.35 | 325.97 | 0.0352 |
| 623 | 3 | 10 | 4 | 4 | 143.88 | 49.46 | 0.0044 |
| 624 | 4 | 13 | 5 | 5 | 294.5 | 110.16 | 0.0066 |
| 625 | 5 | 16 | 5 | 5 | 395.66 | 152.87 | 0.0088 |
| 626 | 6 | 19 | 6 | 6 | 526.05 | 198.96 | 0.0176 |
| 627 | 7 | 22 | 7 | 7 | 753.11 | 314.73 | 0.0308 |
| 628 | 8 | 24 | 8 | 8 | 899.23 | 357.44 | 0.0352 |
| 629 | 9 | 26 | 8 | 8 | 1022.88 | 438.38 | 0.0418 |
| 633 | 3 | 13 | 5 | 5 | 292.25 | 110.16 | 0.0066 |
| 634 | 4 | 16 | 5 | 5 | 395.66 | 152.87 | 0.011 |
| 635 | 5 | 19 | 6 | 6 | 526.05 | 198.96 | 0.0176 |
| 636 | 6 | 22 | 7 | 7 | 741.87 | 303.49 | 0.0286 |
| 637 | 7 | 26 | 9 | 9 | 910.47 | 364.19 | 0.0528 |
| 638 | 8 | 28 | 9 | 9 | 1022.88 | 438.38 | 0.0638 |
| 639 | 9 | 30 | 10 | 10 | 1146.52 | 537.29 | 0.077 |
| 673 | 3 | 6 | 2 | 2.5 | 54.4 | 21.13 | 0.00044 |
| 674 | 4 | 7 | 2 | 2.5 | 60.47 | 38.22 | 0.000616 |
| 675 | 5 | 8 | 2 | 2.5 | 65.64 | 31.92 | 0.000704 |
| 676 | 6 | 10 | 2.5 | 3 | 119.15 | 53.95 | 0.00143 |
| 677 | 7 | 11 | 2.5 | 3 | 124.77 | 60.47 | 0.001474 |
| 678 | 8 | 12 | 2.5 | 3.5 | 129.26 | 66.99 | 0.00165 |
| 683 | 3 | 7 | 2 | 3 | 81.52 | 26.44 | 0.000726 |
| 684 | 4 | 9 | 2.5 | 4 | 136.59 | 48.47 | 0.001386 |
| 685 | 5 | 11 | 3 | 5 | 138.8 | 57.28 | 0.00242 |
| 686 | 6 | 13 | 3.5 | 5 | 231.33 | 88.12 | 0.00418 |
| 687 | 7 | 14 | 3.5 | 5 | 251.16 | 114.65 | 0.00462 |
| 688 | 8 | 16 | 4 | 5 | 283.26 | 132.64 | 0.00682 |
| 689 | 9 | 17 | 4 | 5 | 298.99 | 149.5 | 0.00704 |
| 693 | 3 | 8 | 3 | 4 | 125.89 | 42.71 | 0.001342 |
| 694 | 4 | 11 | 4 | 4 | 215.82 | 76.43 | 0.00374 |
| 695 | 5 | 13 | 4 | 4 | 296.75 | 110.16 | 0.00528 |
| 696 | 6 | 15 | 5 | 5 | 393.41 | 150.62 | 0.00858 |
| 697 | 7 | 17 | 5 | 5 | 359.69 | 159.61 | 0.01166 |
| 698 | 8 | 19 | 6 | 6 | 386.67 | 188.84 | 0.01584 |
| 699 | 9 | 20 | 6 | 6 | 550.78 | 236.05 |
0.018 |
608 ZZ Double Shielded Miniature Ball Bearing for Skateborad 8mm x 22mm x 7mm, Get Cheap Price from China Ball Bearing Factory Now !
