GERMANY 617546 A DAC2552206 Automotive Wheel Bearing Steel / Rubber Shield
Price:
0.1-200USD
MOQ:
1 pcs-5pcs
Delivery Time:
3-7Days After Deposit
Brand:
FAG/ NSK / NACHI / KOYO / OEM
Product Description
GERMANY 617546 A DAC2552206 Automotive Wheel Bearing Steel / Rubber Shield

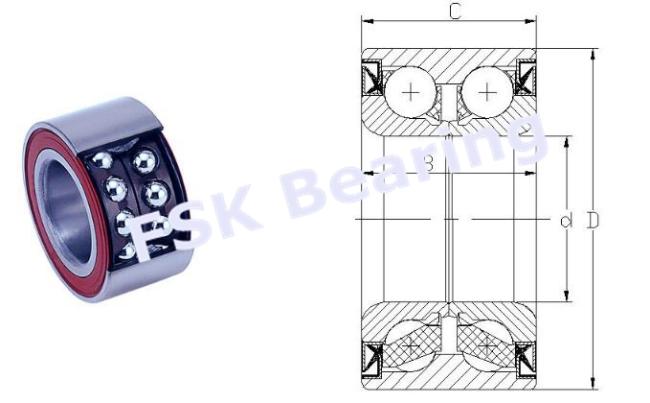

Auto Wheel Bearing Drawing
Double Row Angular Contact Ball Bearing Structure
617546 A Bearing Specification :
| Model Number | 617546 A |
| Part Name | Auto Wheel Bearing |
| Structure | Angular Contact Ball Bearing |
| Dimensions(mm)(d*D*b) | 25mm × 52mm × 20.6mm |
| Weight / Mass ( KG ) | 0.19kg |
| Row | Double Row |
| Precision Rating | ABEC-3 / ABEC-5 |
| Brand | FAG/ NSK / NACHI / KOYO / OEM |
| Original Country Show | CHINA |
| HS Code | 8482800000 |
Part Our Wheel Hub Bearings Catalog
| ITEMS | Dimension (mm) |
Weight (Kg) |
|||||
| FSK | FAG | d | D | B | C | ||
| DAC2552206 | 617546A | 25 | 52 | 20.6 | 20.6 | 0.19 | |
| DAC255237 | 445539A | 25 | 52 | 37 | 37 | 0.31 | |
| DAC306037 | 633313C | 529891AB | 30 | 60.03 | 37 | 37 | 0.42 |
| DAC346237 | 309724B | 531910 | 34 | 62 | 37 | 37 | 0.41 |
| DAC346437 | 309726 | 532066DE | 34 | 64 | 37 | 37 | 0.43 |
| DAC346637 | 636114A | 580400CA | 34 | 66 | 37 | 37 | 0.5 |
| DAC356535 | 443952EA | 546238A | 35 | 65 | 35 | 35 | 0.4 |
| DAC356632 | 445980BA | 35 | 66 | 32 | 32 | 0.42 | |
| DAC356633 | 633676 | 35 | 66 | 33 | 33 | 0.43 | |
| DAC356637 | 311309 | 546238 | 35 | 66 | 37 | 37 | 0.48 |
| DAC356837 | 633295 | 567918B | 35 | 68 | 37 | 37 | 0.52 |
| DAC357228 | 441832AB | 35 | 72 | 28 | 28 | 0.48 | |
| DAC357233 | 446762 | 548083 | 35 | 72 | 33 | 33 | 0.58 |
| DAC357233A | 633669 | 35 | 72.04 | 33 | 33 | 0.58 | |
| DAC377237 | 633541B | 562398A | 37 | 72 | 37 | 37 | 0.59 |
| DAC377237A | 633028 | 562398 | 37 | 72.04 | 37 | 37 | 0.59 |
| DAC377445 | 309946AC | 541521C | 37 | 74 | 45 | 45 | 0.79 |
| DAC387450A | 559912 | 38 | 74.04 | 50 | 50 | 0.85 | |
| DAC396837 | 311315DB | 540733 | 39 | 68 | 37 | 37 | 0.48 |
Bearings Detailed Pictures :
The Other Bearings We Do
| Ball Bearing | Deep Groove Ball Bearing | 60 **,618 ** (1008), 619**(1009),62 **, 63 **, 64 **, |
| 160 **(70001 ) | ||
| Thrust Ball Bearing | 511 ** (81) ,512 **(82) ,513 (83) ,514 ** (84) series and Angular Contact Thrust all Bearings like: 5617 ** (1687) ,5691 ** (91681), 5692 ** (91682) series | |
| Angular Contact Ball bearing | SN718 **(11068 ) ,70 ** 72 **,73 **, and B (66), C (36), AC (46) series ; otherwise include QJ and QJF series | |
| Roller Bearing | Spherical Roller bearing | 239**, 230**,240**, 231**, 241**, 222**, 232**, 223**, 233**, 213**, 238**, 248**, 249**and special series include 26** i.e 2638 (3738), 2644 (3844) and so on |
| Taper Roller Bearing | 329**(20079),210**(71), 320**(20071),302**(72), 322**(75), 303**(73), 313**(273),323**(76), 3519**(10979), 3529**(20979),3510**(971), 3520**(20971),3511**(10977), 3521**(20977), 3522**(975), 319**(10076),3819**(10779),3829**(20779), 3810**(777,771), 3820**(20771), 3811**(10777,777) for example: 77752, 77788, 77779 and also include Inch series bearings suchas 938/932 single and double row i.e M255410CD etc. | |
| Thrust Roller Bearing | 292**(90392), 293**(90393),294**(90394),994**(90194), and 9069 series. | |
| Cylindrical Roller Bearing | NU10**, NU2**,NU22**, NU3**,NU23**, NU4**, N, NJ ,NUP series as well as NB, NN, NNU series of big bearings, and we also have Split Bearings 412740, 422740 used in cement industry.And FC, FCD series used in Steel Industry. |
GERMANY 617546 A DAC2552206 Automotive Wheel Bearing Steel / Rubber Shield , Get Cheap Price from China Bearing Factory Now !
