Imperial Inched HA 2320 HA2322 Adapter Sleeve Spherical Roller Bearing Accessories
Imperial Inched HA 2320 HA2322 Adapter Sleeve Spherical Roller
Bearing Accessories
HA 2320 Drawing and Specification :
| Model Number | HA 2320 |
| Part Name | Adapter Sleeve |
| Dimensions(mm)(d*D*b) | 87.313mm ×100mm ×130mm ×97mm |
| Weight / Mass ( KG ) | 2.15kg |
| Precision Rating | ABEC-3 / ABEC-5 |
| Brand | NSK / FAG KSM / INA / KOYO / OEM / Any Brand |
| Original Country Show | CHINA |

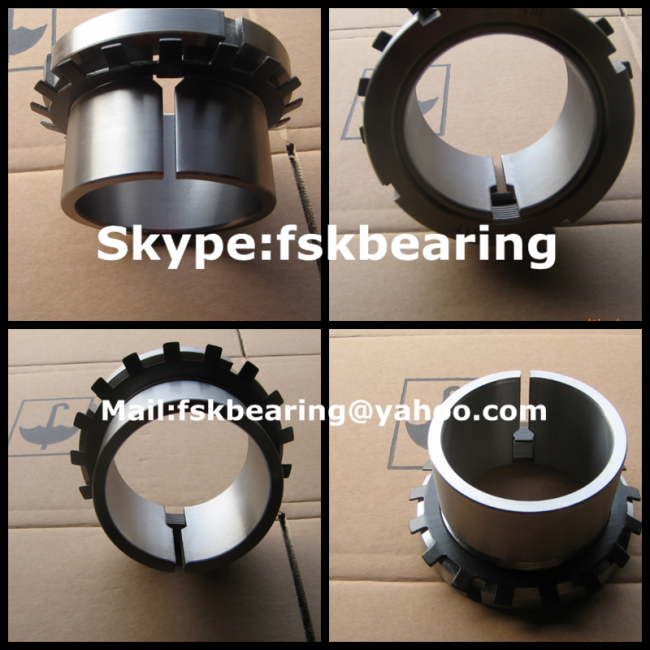

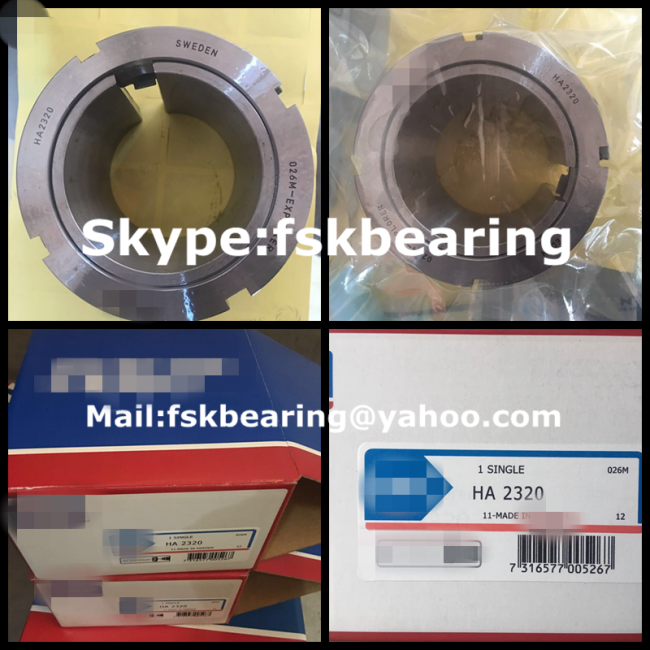

HA2320 Detailed Pictures :
This Series Other Bearings We offer
| Sleeve No. | Size(mm) | Application Bearing | Mass / kg | ||||
| d | d1 | B1 | d2 | ||||
| HA2304 | 20 | 17 | 31 | 32 | UK204 | 0.049 | |
| HA2305 | 25 | 20 | 35 | 38 | UK205 | UK305 | 0.087 |
| HA2306 | 30 | 25 | 38 | 45 | UK206 | UK306 | 0.126 |
| HA2307 | 35 | 30 | 43 | 52 | UK207 | UK307 | 0.165 |
| HA2308 | 40 | 35 | 46 | 58 | UK208 | UK308 | 0.224 |
| HA2309 | 45 | 40 | 50 | 65 | UK209 | UK309 | 0.28 |
| HA2310 | 50 | 45 | 55 | 70 | UK210 | UK310 | 0.362 |
| HA2311 | 55 | 50 | 59 | 75 | UK211 | UK311 | 0.42 |
| HA2312 | 60 | 55 | 62 | 80 | UK212 | UK312 | 0.481 |
| HA2313 | 65 | 60 | 65 | 85 | UK213 | UK313 | 0.557 |
| HA2314 | 70 | 60 | 68 | 92 | UK214 | UK314 | 0.897 |
| HA2315 | 75 | 65 | 73 | 98 | UK215 | UK315 | 1.05 |
| HA2316 | 80 | 70 | 78 | 105 | UK216 | UK316 | 1.28 |
| HA2317 | 85 | 75 | 82 | 110 | UK217 | UK317 | 1.45 |
| HA2318 | 90 | 80 | 86 | 120 | UK218 | UK318 | 1.69 |
| HA2319 | 95 | 85 | 90 | 155 | UK219 | UK319 | 1.92 |
| HA2320 | 100 | 90 | 97 | 130 | UK220 | UK320 | 2.15 |
| HA2322 | 110 | 100 | 105 | 145 | UK222 | 153622 | 2.74 |
| HA2324 | 120 | 110 | 112 | 155 | UK224 | 1536224 | 3.19 |
| HA2326 | 130 | 115 | 121 | 165 | UK226 | 1536226 | 4.6 |
| HA2328 | 140 | 125 | 131 | 180 | UK228 | 1536228 | 5.55 |
Our other Hot Sale Bearings
| Hot Sales in our company |
| 1. deep groove ball bearing 6000,6200,6300,6400,61800,61900,Z,RS,ZZ,2RS |
| 2. spherical roller bearing 22200,22300,23000,24000,23100,24100,CA,CC,E,W33 |
| 3. cylindrical roller bearingN,NU,NJ,NN,NUP,E,ECP,ECM,ECJ |
| 4. taper roller bearing 30200,30300,32200,32300,31300,32000 |
| 5. Aligning ball bearing 1200,1300,2200,2300, |
| 6. needle roller bearing NA,NAV,NK,NKI,RNA,NK,RNAV,ZKLF,ZKLN,ZARF,ZARN |
| 7. thrust ball bearing 51100,51200,51300,51400,E,M |
| 8. angular contact ball bearing7000,7100,7200,7300,AC,BECBM,C |
| 9. spherical plain bearing GE,GEG,GEEW,U,UC,UG,GX,GAC,SA,SABP |
