Imperial Size B 96 Needle Roller Bearings Cam Follower Bearing ID 14.29mm OD 19.05mm
Imperial Size B 96 Needle Roller Bearing Cam Follower Bearing ID 14.29mm OD 19.05mm
Bearing Specification :
|
Model Number |
B96 |
|
Part Name |
Needle Roller Bearing |
|
Brand |
FSKG / KBE / FAG / NTN / NSK / KOYO / OEM |
|
Precision Rating |
ABEC-1 to ABEC-9 |
| Material | Gcr15 Chrome Steel |
| Number of Row | Single Row |
|
Dimensions(mm)(d*D*b) |
14.29× 19.05× 9.52mm |
|
Weight / Mass ( KG ) |
0.013KG |
|
HS Code |
8482500000 |
| Original Country Show | CHINA |
Our B series Bearings :
| Model No. | ID (mm) | OD(mm) | Thickness(mm) |
| B-44 | 6.35 | 11.11 | 6.35 |
| B-45 | 6.35 | 11.11 | 7.92 |
| B-47 | 6.35 | 11.11 | 11.13 |
| B-55 | 7.94 | 12.7 | 7.92 |
| B-56 | 7.94 | 12.7 | 9.52 |
| B-57 | 7.94 | 12.7 | 11.13 |
| B-59 | 7.94 | 12.7 | 14.27 |
| B-65 | 9.52 | 14.29 | 7.92 |
| B-66 | 9.52 | 14.29 | 9.52 |
| B-67 | 9.52 | 14.29 | 11.13 |
| B-68 | 9.52 | 14.29 | 12.7 |
| B-69 | 9.52 | 14.29 | 14.27 |
| B-610 | 9.52 | 14.29 | 15.88 |
| B-76 | 11.11 | 15.88 | 9.52 |
| B-77 | 11.11 | 15.88 | 11.13 |
| B-78 | 11.11 | 15.88 | 12.7 |
| B-710 | 11.11 | 15.88 | 15.88 |
| B-85 | 12.7 | 17.46 | 7.92 |
| B-86 | 12.7 | 17.46 | 9.52 |
| B-87 | 12.7 | 17.46 | 11.13 |
| B-88 | 12.7 | 17.46 | 12.7 |
| B-810 | 12.7 | 17.46 | 15.88 |
| B-812 | 12.7 | 17.46 | 19.05 |
| B-95 | 14.29 | 19.05 | 7.92 |
| B-96 | 14.29 | 19.05 | 9.52 |
| B-97 | 14.29 | 19.05 | 11.13 |
| B-98 | 14.29 | 19.05 | 12.7 |
| B-910 | 14.29 | 19.05 | 15.88 |
| B-912 | 14.29 | 19.05 | 19.05 |
| B-105 | 15.88 | 20.64 | 7.92 |
| B-107 | 15.88 | 20.64 | 11.13 |
| B-108 | 15.88 | 20.64 | 12.7 |
| B-1010 | 15.88 | 20.64 | 15.88 |
| B-1012 | 15.88 | 20.64 | 19.05 |
| B-116 | 17.46 | 22.22 | 9.52 |
| B-118 | 17.46 | 22.22 | 12.7 |
| B-1110 | 17.46 | 22.22 | 15.88 |
| B-1112 | 17.46 | 22.22 | 19.05 |
| B-126 | 19.05 | 25.4 | 9.52 |
| B-128 | 19.05 | 25.4 | 12.7 |
| B-1210 | 19.05 | 25.4 | 15.88 |
| B-1212 | 19.05 | 25.4 | 19.05 |
| B-136 | 20.64 | 26.99 | 9.52 |
| B-138 | 20.64 | 26.99 | 12.7 |
| B-1314 | 20.64 | 26.99 | 22.22 |
| B-1316 | 20.64 | 26.99 | 25.4 |
| B-146 | 22.22 | 28.58 | 9.52 |
| B-148 | 22.22 | 28.58 | 12.7 |
| B-1412 | 22.22 | 28.58 | 19.05 |
| B-1416 | 22.22 | 28.58 | 25.4 |
| B-1418 | 22.22 | 28.58 | 28.58 |
| B-158 | 23.81 | 30.16 | 12.7 |
| B-1516 | 23.81 | 30.16 | 25.4 |
| B-166 | 25.4 | 31.75 | 9.52 |
| B-167 | 25.4 | 31.75 | 11.13 |
| B-168 | 25.4 | 31.75 | 12.7 |
| B-1610 | 25.4 | 31.75 | 15.88 |
| B-1612 | 25.4 | 31.75 | 19.05 |
| B-1616 | 25.4 | 31.75 | 25.4 |
| B-1710 | 26.99 | 33.34 | 15.88 |
| B-186 | 28.58 | 34.92 | 9.52 |
| B-188 | 28.58 | 34.92 | 12.7 |
| B-1812 | 28.58 | 34.92 | 19.05 |
| B-1816 | 28.58 | 34.92 | 25.4 |
| B1916 | 30.16 | 38.1 | 25.4 |
| B-208 | 31.75 | 38.1 | 12.7 |
| B-2010 | 31.75 | 38.1 | 15.88 |
| B-2012 | 31.75 | 38.1 | 19.05 |
| B-2016 | 31.75 | 38.1 | 25.4 |
| B-2020 | 31.75 | 38.1 | 31.75 |
| B-218 | 33.34 | 41.28 | 12.7 |
| B-2110 | 33.34 | 41.28 | 15.88 |
| B-2120 | 33.34 | 41.28 | 31.75 |
| B-228 | 34.92 | 41.28 | 12.7 |
| B-2212 | 34.92 | 41.28 | 19.05 |
| B-2216 | 34.92 | 41.28 | 25.4 |
| B-2220 | 34.92 | 41.28 | 31.75 |
| B-248 | 38.1 | 47.62 | 12.7 |
| B-2410 | 38.1 | 47.62 | 15.88 |
| B-2412 | 38.1 | 47.62 | 19.05 |
| B-2414 | 38.1 | 47.62 | 22.22 |
| B-2416 | 38.1 | 47.62 | 25.4 |
| B-2420 | 38.1 | 47.62 | 31.75 |
| B-268 | 41.28 | 50.8 | 12.7 |
| B-2610 | 41.28 | 50.8 | 15.88 |
| B-2616 | 41.28 | 50.8 | 25.4 |
| B-2620 | 41.28 | 50.8 | 31.75 |
| B-2812 | 44.45 | 53.98 | 19.05 |
| B-2816 | 44.45 | 53.98 | 25.4 |
| B-2820 | 44.45 | 53.98 | 31.75 |
| B-2824 | 44.45 | 53.98 | 38.1 |
| B-308 | 47.62 | 57.15 | 12.7 |
| B-3012 | 47.62 | 57.15 | 19.05 |
| B-3016 | 47.62 | 57.15 | 25.4 |
| B-328 | 50.8 | 60.32 | 12.7 |
| B-3216 | 50.8 | 60.32 | 25.4 |
| B-3220 | 50.8 | 60.32 | 31.75 |
| B-3228 | 50.8 | 60.32 | 44.45 |
| B-348 | 53.98 | 63.5 | 12.7 |
| B-3416 | 53.98 | 63.5 | 25.4 |
| B-3424 | 53.98 | 63.5 | 38.1 |
| B-3612 | 57.15 | 66.68 | 19.05 |
| B-3620 | 57.15 | 66.68 | 31.75 |
| B-3624 | 57.15 | 66.68 | 38.1 |
| B-4216 | 66.68 | 76.2 | 25.4 |
| B-4410 | 69.85 | 79.38 | 15.88 |
| B-4416 | 69.85 | 79.38 | 25.4 |
| B-4420 | 69.85 | 79.38 | 31.75 |

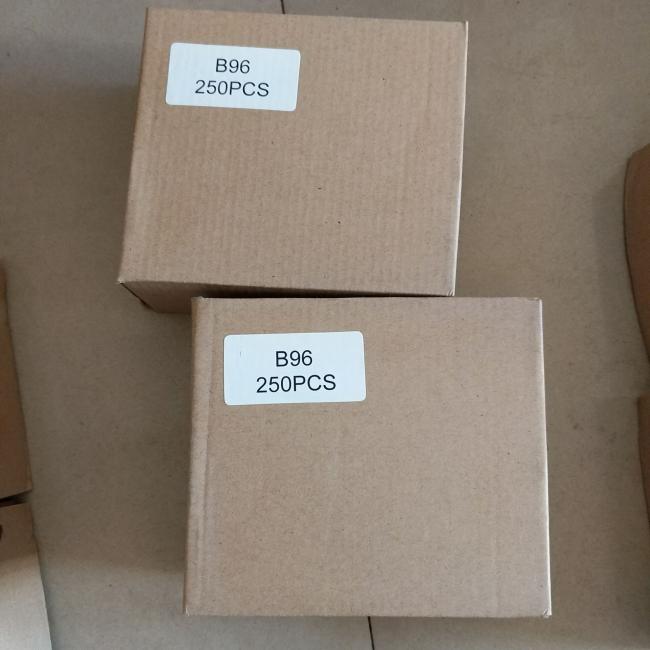

Bearings Detailed Pictures :

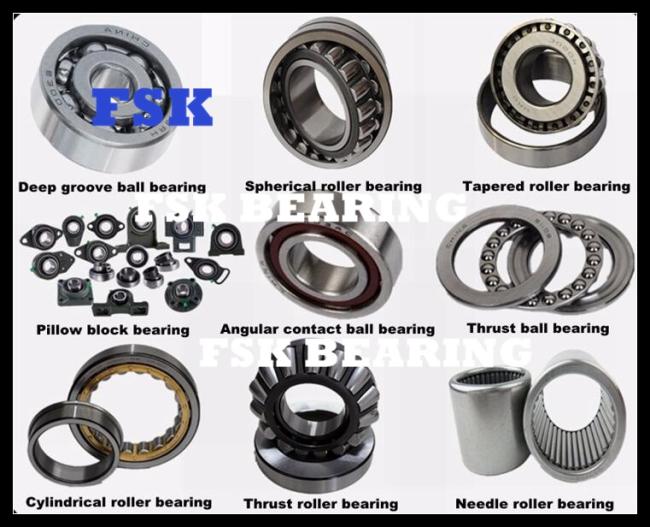

The Other Bearings We Do
Advantage :
1. Low friction
2. Wear resistant
3. Easy replacement
4. Minimum lubrication
5. Requires little attention
6. Running in not required
7. Dimensions relatively small
8. No scraping required tofit shaft
Our Service :
1. Highest quality and most competitive price----we are the only one manufacture who adopts import raw materials. Low bad rates, is just 0.1%. It is amazing, and with cheap price and guaranteed quality.
2. Delivery fast -----Goods be sent out within 3 to 7 days based on order quantity.
3. Professional-----We are special in source and sells, as development, methods, conjugations, and handling.
4. Best service-----Answering e-mails or solving questions timely. Delivery and update information on time. Trust, good quality and service are the basic of long term business.
Imperial Size B 96 Needle Roller Bearing Cam Follower Bearing ID 14.29mm OD 19.05mm ,Get Cheap Price from China Roller Bearing Factory Now !
